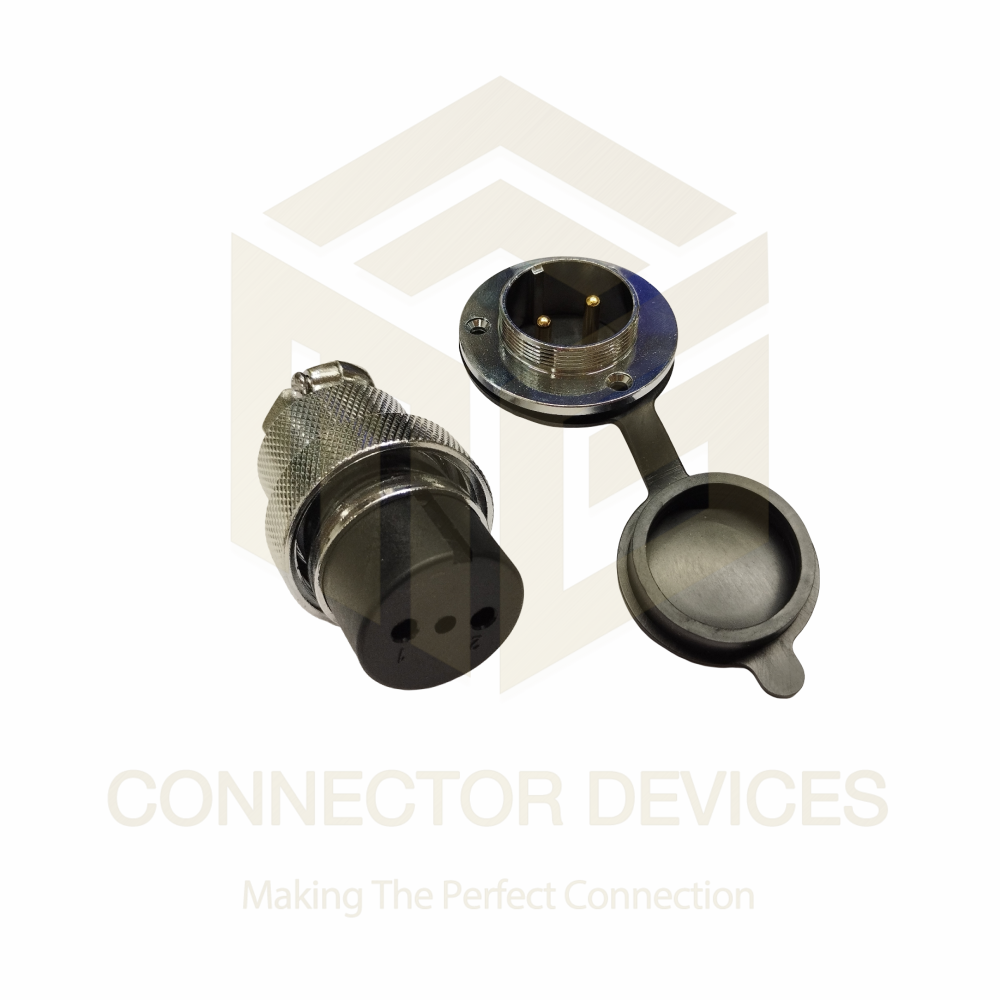

M30 MRS 30mm Male Panel Female Cable

Get a Price/Quote

Product Details:

Power Supply Not Applicable (Connector)
Input Male panel connector
Output Female cable connector
IP Rating IP67
Operating Temperature -25C to +80C
Components Nickel-plated brass housing, gold-plated contacts, PVC cable
Features Screw locking, vibration resistance, high durability
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

M30 MRS 30mm Male Panel Female Cable Price And Quantity

Minimum Order Quantity 100 Piece

M30 MRS 30mm Male Panel Female Cable Product Specifications

Features Screw locking, vibration resistance, high durability
Frequency 50/60 Hz
Product Type Circular Connector
Current Rating 5A max
Dimension (L*W*H) Diameter 30mm, length varies with cable
Thickness Body thickness approx. 5mm
Rated Voltage 250V AC/DC
Components Nickel-plated brass housing, gold-plated contacts, PVC cable
Weight Approx. 120g
Size 30mm
Operating Temperature -25C to +80C
Supply Voltage 250V
Usage Industrial automation, sensors, and actuators connection
Color Black & Blue
IP Rating IP67
Function Male panel to female cable connector for electrical signal and power transmission
Interface M30 Circular Interface
Output Female cable connector
Capacity Up to 5A current
Application Industrial machinery, robotics, factory automation
Input Male panel connector
Power Supply Not Applicable (Connector)

Contact Material Copper alloy with gold plating
Flame Retardant Yes
Wire Gauge 0.34mm2 to 0.75mm2
Number of Pins Typically 4 or 5 (custom options available)
Cable Jacket Material PVC
Connection Type Pre-wired, ready to use
Cable Length Standard 2 meter (custom lengths available)
Mechanical Life >500 connection cycles
Contact Resistance <5 m
Insulation Resistance >100 M (at 500V DC)
Shell Material Nickel-plated brass

Product Description

Brand Name - Connector Devices
Product Name : M30 MRS 30mm Male Panel Female Cable
Shell Diameter : 30mm
Mounting Method : Male Panel And Female Cable Type
Pins : 2 Pin To 4 Pin
Current : 15Amp

Reliable Connection for Industrial Applications

The M30 MRS 30mm Male Panel Female Cable connector is meticulously crafted for use in factory automation, robotics, and machinery. Its high-quality materials ensure dependable connections even in challenging environments. Featuring vibration resistance and screw locking, it minimizes the risk of accidental disconnects, promoting system stability and long service life in critical applications.

Superior Build and Performance

Equipped with copper alloy contacts and gold plating, this connector offers low contact resistance and exceptional conductivity. The nickel-plated brass shell and flame-retardant PVC cable guarantee mechanical strength and operational safety. With an IP67 ingress rating, the assembly withstands exposure to dust and water, making it suitable for rigorous industrial operations.

FAQ's of M30 MRS 30mm Male Panel Female Cable:

Q: How do I install the M30 MRS Male Panel Female Cable connector in my automation system?

A: Installation is straightforward - the connector comes pre-wired and ready to use. Mount the male panel side securely, attach the female cable connector, and tighten the screw locking mechanism to ensure a vibration-resistant fit.

Q: What are the typical usage scenarios for this M30 circular connector?

A: This connector is ideal for industrial automation, robotics, sensor and actuator wiring, and machinery where quick, reliable power or signal connections are required, especially in dusty or moist environments.

Q: When should I consider a custom option for number of pins or cable length?

A: Custom options are recommended when your system requires more pins for additional signal lines or a different cable length to accommodate unique equipment layouts. Contact the supplier for customization.

Q: Where can the M30 MRS connector be effectively used?

A: It's perfect for indoor and outdoor industrial settings, including factory floors, machinery assemblies, robotic arms, and process automation equipment, thanks to its IP67 dust and water resistance.

Q: What is the process for maintaining this connector?

A: Routine maintenance involves inspecting contacts for debris or oxidation, checking the screw lock's tightness, and ensuring the cable jacket remains intact. Cleaning should be done with a soft, dry cloth to maintain optimal performance.

Q: What are the benefits of the gold-plated contacts?

A: Gold plating provides excellent corrosion resistance and low electrical contact resistance, ensuring reliable signal and power transmission while extending connector life.
