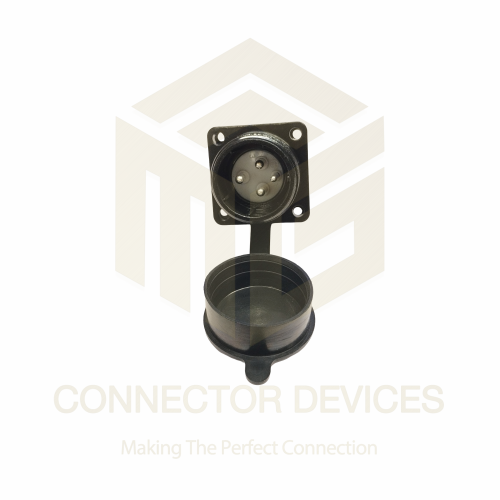

Servo Motor 4 Pin Male Socket YD28J4Z-E

Name: Servo Motor 4 Pin Male Socket YD28J4Z-E
Brand: CONNECTOR DEVICES
Price: 750 INR
Availability: InStock

750 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +85C
Power Source N/A (passive component)
Input 4-pin Male interface
Features Waterproof, dustproof, anti-corrosive, quick connection
Interface 4-Pin Circular Male
Components Metal shell, 4 brass contacts, locking ring
Power Supply Not Applicable (Passive connector)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Servo Motor 4 Pin Male Socket YD28J4Z-E Price And Quantity

Price 750 INR/Piece
Minimum Order Quantity 100 Piece

Servo Motor 4 Pin Male Socket YD28J4Z-E Product Specifications

Color Black body with Silver/Pewter metallic ring
Size 28mm outer shell diameter
Dimension (L*W*H) Approx. 40mm (L) x 28mm (W) x 28mm (H)
Power Source N/A (passive component)
Capacity Rated current up to 10A
Operating Temperature -40C to +85C
Current Rating Up to 10A
Application Servo motor wiring, industrial automation
Interface 4-Pin Circular Male
Features Waterproof, dustproof, anti-corrosive, quick connection
Input 4-pin Male interface
Usage Electrical connection for servo motor applications
Rated Voltage 250V AC
Thickness Connector shell thickness approx. 1.5mm
Function 4-pin male socket connector for Servo Motor interface
Power Supply Not Applicable (Passive connector)
Components Metal shell, 4 brass contacts, locking ring
Product Type Servo Motor Connector Male Socket
Frequency 50/60Hz compatible
Weight Approx. 45g
Output Compatible 4-pin Female connector
IP Rating IP67
Supply Voltage Up to 250V AC (depends on system)

Locking Type Threaded coupling ring
Contact Resistance 5m
Number of Pins 4
Shell Finish Nickel plated
Vibration Resistance 10-2000Hz, 15g
Protection Cover Included
Mechanical Life >500 coupling cycles
Cable Entry Type Rear cable gland with strain relief
Body Material High-quality zinc alloy shell
Mounting Style Cable mount/inline mount
Insulation Resistance >2000M (1000V DC)
Flame Retardant Standard UL94V-0
Contact Material Gold-plated brass contacts
Standards Complied RoHS, CE

Servo Motor 4 Pin Male Socket YD28J4Z-E Trade Information

Delivery Time 7 Days

Product Description

Experience matchless connection reliability with the Servo Motor 4 Pin Male Socket YD28J4Z-E-a true masterpiece in servo motor interfaces. Featuring a rugged zinc alloy shell, gold-plated contacts, and robust flame-retardant standards (UL94V-0), this socket ensures unassailable performance. With an IP67 rating, nickel-plated finish, and vibration resistance, it excels in industrial automation. Order today and benefit from our latest price cut! Try now for superior efficiency. Perfect for wiring, fast connections, and enduring up to 500+ coupling cycles-your gateway to the future of automation!

Masterpiece for Precision Servo Motor Connectivity

The Servo Motor 4 Pin Male Socket YD28J4Z-E shines in specialized servo motor and general electrical connection tasks. Primarily used for servo motor wiring, this connector is indispensable in industrial automation, machinery, robotics, and control systems. Its secure cable or inline mount provides steadfast connections in production lines, factory equipment, and other demanding environments. Enjoy steadfast performance in any place where robust, dustproof, and waterproof connections are essential.

Ordering and Payment Made Effortless

We offer flexible payment terms and quick order completion for the Servo Motor 4 Pin Male Socket YD28J4Z-E. Secure your order now and pay via convenient methods tailored to your business needs. Samples are available for evaluation prior to large outlays, ensuring satisfaction before bulk purchase. FOB shipping is available from our leading Indian ports, streamlining delivery. Take advantage of our competitive outlay and exceptional service-order today for dependable automation solutions.

FAQ's of Servo Motor 4 Pin Male Socket YD28J4Z-E:

Q: How does the YD28J4Z-E 4 Pin Male Socket enhance servo motor connections?

A: Its gold-plated brass contacts and threaded coupling ring guarantee secure, low-resistance, and unassailable connectivity, ensuring stable performance in servo motor setups.

Q: What applications and environments is this connector best suited for?

A: It's ideal for servo motor wiring, industrial automation, robotics, and machinery. Its IP67 rating and flame-retardant shell make it suitable for dusty, wet, or high-vibration environments.

Q: When can I expect delivery after placing an order?

A: Once your order is completed and payment is confirmed, shipping is arranged promptly-delivery timelines will depend on your location and selected FOB port.

Q: Where can I source the YD28J4Z-E connector in India?

A: We supply, export, and wholesale this product nationwide. Orders may be placed directly through our channels, distributed from leading ports in India.

Q: What is the process for requesting a sample of the YD28J4Z-E?

A: Simply reach out with your order inquiry mentioning your requirement for a sample. We provide product samples so you can assess quality before committing to a full outlay.

Q: How does the IP67 rating benefit practical usage?

A: IP67 certification ensures the connector is protected from dust and water ingress, making it reliable for both indoor and harsh outdoor or industrial conditions.
