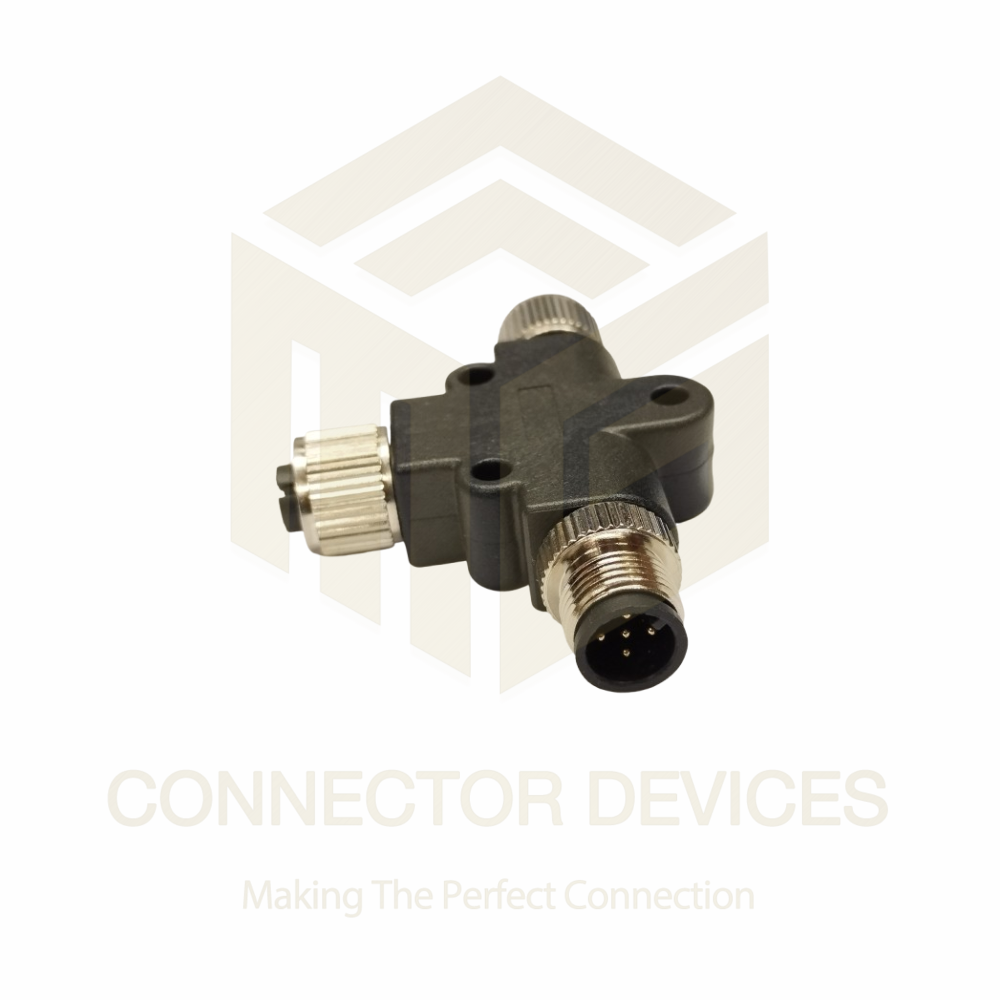

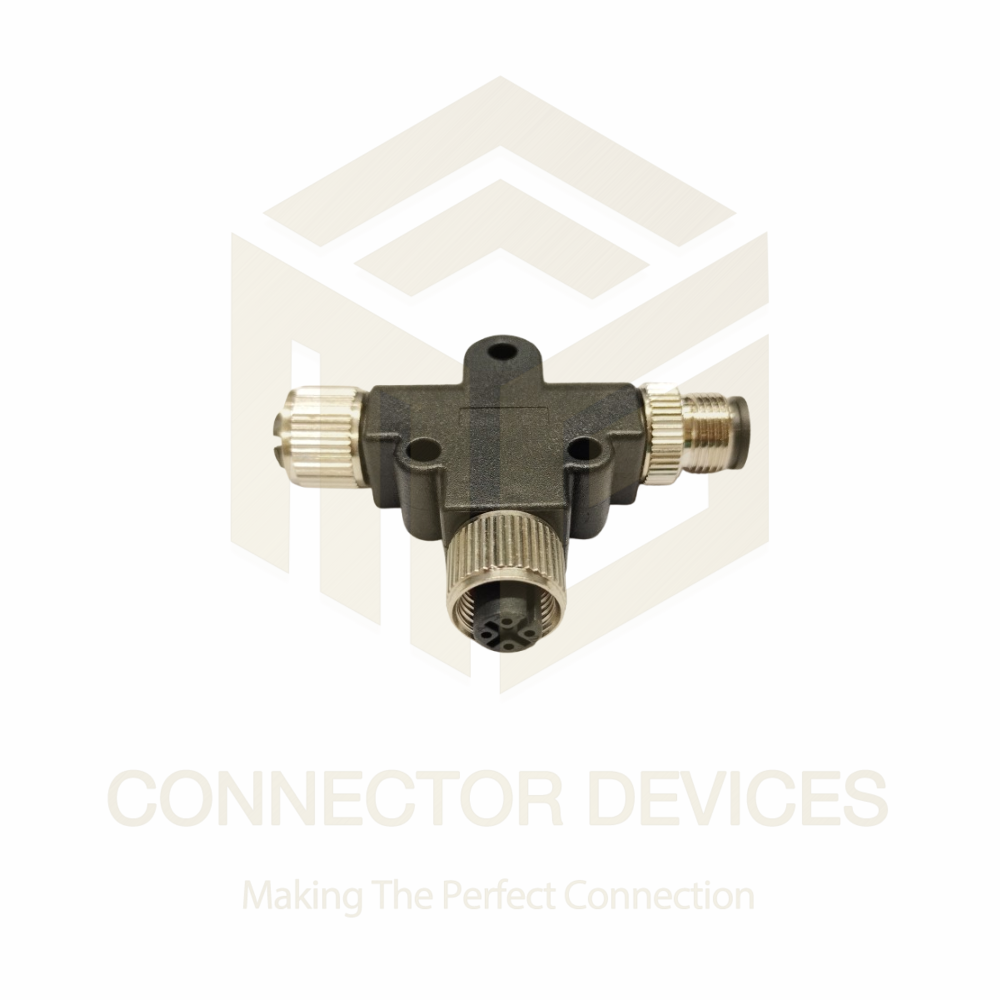

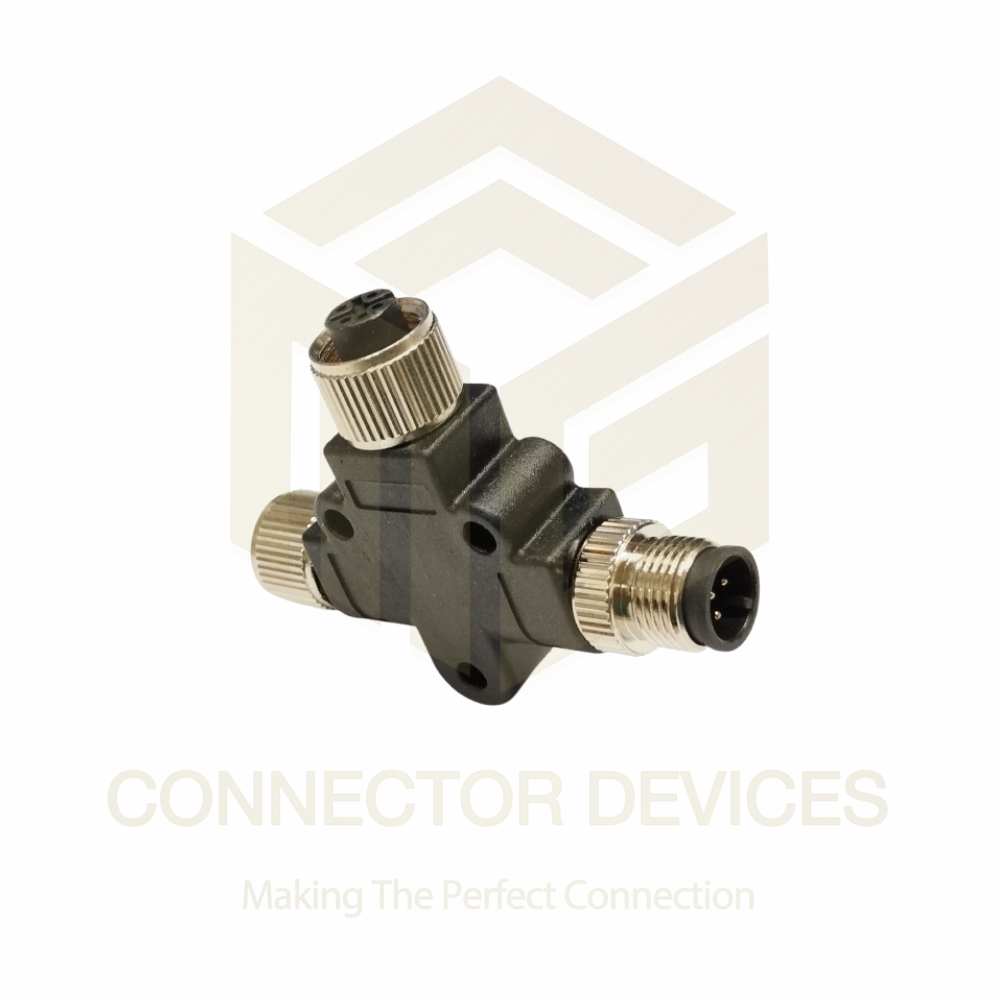

M12 5 PIN SPLITTER 1 MALE 2 FEMALE

Name: M12 5 PIN SPLITTER 1 MALE 2 FEMALE
Brand: CONNECTOR DEVICES
Price: 12700.00 INR
Availability: InStock

12700.00 INR/Piece

Get a Price/Quote

Product Details:

Output 2 x M12 5-pin female connectors
Interface M12 circular, 5-pin (A-coded)
Components 1 male M12 5-pin, 2 female M12 5-pin, housing
Sensors Specification Suitable for PNP/NPN sensors
Power Source Passive, inline splitter
Operating Temperature -25C to +85C
IP Rating IP67
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

M12 5 PIN SPLITTER 1 MALE 2 FEMALE Price And Quantity

Minimum Order Quantity 100 Piece
Price 12700.00 INR/Piece

M12 5 PIN SPLITTER 1 MALE 2 FEMALE Product Specifications

Rated Voltage 250V AC/DC
Frequency 50/60 Hz typical industrial
Operating Temperature -25C to +85C
Dimension (L*W*H) Approx. 60mm x 50mm x 18mm
Size Standard M12 dimensions
Current Rating Max 4A per contact
Output 2 x M12 5-pin female connectors
Supply Voltage 250V AC/DC
Color Black with metallic contacts
Product Type M12 5 Pin Splitter (1 Male to 2 Female)
Weight Approx. 32g
Sensors Specification Suitable for PNP/NPN sensors
Application Industrial automation, robotics, sensors, and actuators connection
Features Rugged design, secure locking, easy installation
Components 1 male M12 5-pin, 2 female M12 5-pin, housing
Power Supply Not applicable (passive device)
Power Source Passive, inline splitter
Usage Sensor and actuator cabling, industrial automation
Input 1 x M12 5-pin male connector
IP Rating IP67
Function Signal and power splitting for M12 connections
Interface M12 circular, 5-pin (A-coded)
Capacity Current capacity up to 4A per contact

Locking System Threaded coupling
Mounting Type Inline, free hanging
Connector Coding A-coded
Insulation Resistance >= 100 M at 500V DC
Contact Resistance <= 5 m
Environmental Protection Waterproof and dustproof for harsh environments
Mechanical Durability >= 100 mating cycles
Shell Material Zinc alloy/nickel plated
Flame Class UL 94 V-0
Contact Material Brass with gold plating

M12 5 PIN SPLITTER 1 MALE 2 FEMALE Trade Information

Supply Ability 100 Piece Per Day
Delivery Time 2 Days

Product Description

Experience prodigious performance with the grandiose M12 5 PIN SPLITTER 1 MALE 2 FEMALE-crafted for superb durability and versatility in demanding industrial environments. Featuring brass contacts with gold plating, this inline passive splitter ensures a secure signal and power distribution (up to 250V AC/DC at 4A per contact) with outstanding insulation resistance and IP67 waterproof rating. Its rugged design promises over 100 mating cycles, making it ideal for automation, robotics, and sensor applications. Don't miss out-grab yours now, reserve your units, and shop for unmatched reliability.

Advanced Usage & Superior Applications

The M12 5 PIN SPLITTER is meticulously engineered for connecting sensors, actuators, and automation equipment in industrial settings. Its rugged, waterproof build and ease of installation make it ideal for both signal and power splitting in demanding environments. Prodigious compatibility with PNP/NPN sensors and robust locking ensure secure connections, while its high current rating and mechanical durability provide a competitive advantage in automation, process control, and robotics applications.

Payment, Shipping, and Packaging Excellence

We offer flexible payment terms to suit diverse procurement needs, with sale pricing optimized for both large and small batch orders. Products are securely packaged to prevent damage during transit, and the standard drop-off point is your designated FOB port in India. Each M12 5 PIN SPLITTER arrives ready for immediate installation, ensuring outstanding value from order to delivery. Take advantage of our special offer and reserve yours at exclusive rates today.

FAQ's of M12 5 PIN SPLITTER 1 MALE 2 FEMALE:

Q: How do I install the M12 5 PIN SPLITTER 1 MALE 2 FEMALE?

A: Installation is straightforward: simply connect the male M12 5-pin connector to your power or signal source and use the two female connectors for output to sensors, actuators, or other devices. The threaded coupling ensures a secure and reliable fit.

Q: What are the key features and competitive advantages of this splitter?

A: This splitter boasts gold-plated brass contacts, a robust IP67 waterproof design, over 100 mating cycles, and compatibility with both PNP and NPN sensors. Its grandiose build ensures superb performance in harsh industrial environments.

Q: When is it most beneficial to use the M12 5 PIN SPLITTER?

A: This splitter is ideal when you need to distribute signal or power from one M12 connection to two outputs, such as in automated machinery, robotics, and factory process control systems.

Q: Where can the M12 5 PIN SPLITTER be used?

A: Use it in various industrial settings, including automation lines, robotics assemblies, sensor arrays, and environments requiring dustproof and waterproof connections.

Q: What is the process for reserving or purchasing this product?

A: To reserve or purchase, simply contact us through our website or sales team, choose your preferred packaging and FOB port options, and complete your order using our flexible payment terms. Your order will be securely packed and delivered to your drop-off location.

Q: How does the splitter benefit industrial automation applications?

A: By splitting signal and power efficiently, the M12 5 PIN SPLITTER allows for streamlined wiring, reduced installation time, and increased reliability in automation processes, helping to maximize productivity and uptime.
