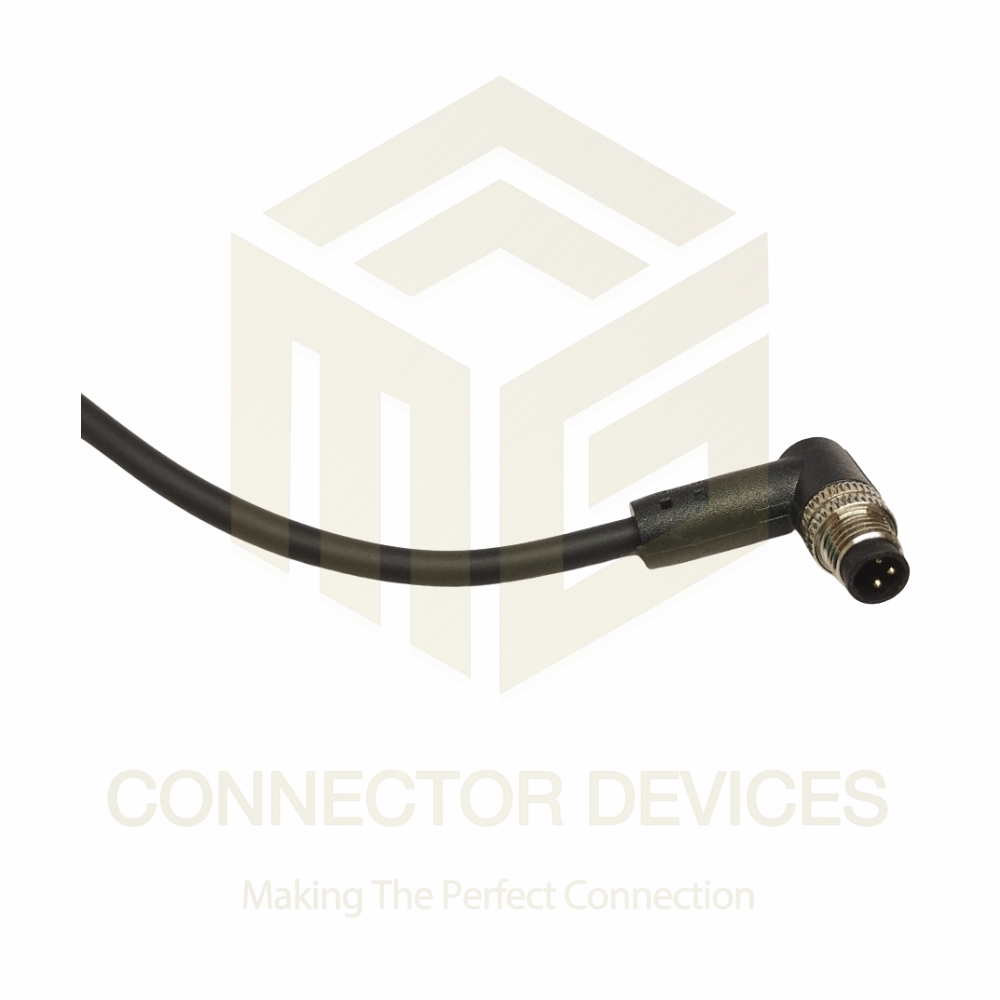

M8 Male Right angle with moulded cable

Name: M8 Male Right angle with moulded cable
Brand: CONNECTOR DEVICES
Price: 1500 INR
Availability: InStock

1500 INR/Piece

Get a Price/Quote

Product Details:

Connector Type M8, 3/4/5 pin, Right Angle, Molded
Connector M8 Male Right Angle
Pairs Single or Multiple (on request)
Temperature -25C to +80C
Female End Type Available as per request
Material Copper (core), PVC/PUR (outer)
Male End Type M8 Right Angle Male
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

M8 Male Right angle with moulded cable Price And Quantity

Price 1500 INR/Piece
Minimum Order Quantity 100 Piece

M8 Male Right angle with moulded cable Product Specifications

Application Sensor/Actuator Connectivity, Industrial Automation
Connector M8 Male Right Angle
Length 1m, 2m, 3m, or as specified
Temperature -25C to +80C
Pairs Single or Multiple (on request)
Capacity 2A to 4A per contact
Flame Resistance Level UL VW-1 / IEC 60332-1
Connector Type M8, 3/4/5 pin, Right Angle, Molded
Jacket Material PVC / PUR
Outer Diameter 5mm (typical)
Male End Type M8 Right Angle Male
Cable Length Standard 2m (custom lengths available)
Insulation PVC / PUR / TPE
Sheild Optional (Braided/Spiral/Tinned Copper)
Cable Type Sensor Cable / Control Cable
Color Black or as per requirement
Number of Conductor 3, 4, or 5 (customizable)
Female End Type Available as per request
Voltage Rating 30V~60V AC/DC
Wire Gauge 24 AWG to 22 AWG
Material Copper (core), PVC/PUR (outer)

Cable Diameter Range 4mm to 6mm
Contact Plating Gold over Nickel
Polarity Keyed to avoid mismatching
Current Rating per Pin Up to 4A
Mechanical Life >100 mating cycles
Contact Resistance 5 m
Termination Overmolded
IP Rating IP67 (when mated)
Coupling Nut Material Nickel-plated Brass
Insulation Resistance 100 M at 500V DC
Housing Material PA66 (Polyamide), Black
Sealing O-ring provided in connector
Standards IEC 61076-2-104
Operating Frequency Up to 4GHz (dependent on configuration)

Product Description

Take advantage of a special rate on the rare and elite M8 Male Right Angle connector with moulded cable, now available with an exclusive promotion. Engineered for supreme performance, this prodigious connector features gold-over-nickel contact plating, a nickel-plated brass coupling nut, and a rugged PA66 housing. IP67-rated when mated, it offers remarkable contact and insulation resistance, alongside a mechanical life exceeding 100 cycles. Customizable length, color, and number of conductors make it ideal for distributors, exporters, manufacturers, and traders seeking advanced automation connectivity at an exceptional value.

Versatile Industrial and Commercial Applications

The M8 Male Right Angle connector with moulded cable is designed for demanding industrial and automation environments. It excels in sensor and actuator connectivity, enhancing equipment reliability. This connector is also ideal for control systems, robotics, and manufacturing lines. Additional applications include process automation, machine tools, and instrumentation. Its customizable features ensure optimal performance for commercial uses, offering flexibility for various installation requirements, making it a trusted solution for industrial connectivity challenges.

Fast Shipment and Reliable Sample Policy

We offer prompt sample dispatch to qualified clients, allowing thorough evaluation before placing bulk orders. Our supply ability meets large and recurring demands, ensuring uninterrupted availability for ongoing projects. With an efficient shipment process, your customized M8 Male Right Angle cables can be delivered within a committed timeframe, typically 7-10 working days from order confirmation, depending on specifications. Take advantage of our attractive offer and enjoy reliable delivery for all your automation connectivity requirements.

FAQ's of M8 Male Right angle with moulded cable:

Q: How is the M8 Male Right Angle connector typically used in industrial settings?

A: This connector is mainly utilized for connecting sensors and actuators in automation systems, ensuring secure and robust communication for efficient equipment operation in factories and process lines.

Q: What customization options are available for the M8 Male Right Angle cable assembly?

A: You can select the number of conductors (3, 4, or 5), cable length (standard or custom), wire gauge, shielding type, and even the color to match the requirements of your specific industrial or commercial application.

Q: When can I expect my shipment after placing an order?

A: Shipments are generally dispatched within 7-10 working days of order confirmation, depending on customization and supply schedules. Sample cables may be sent earlier for evaluation.

Q: Where can these connectors be installed?

A: These connectors are suitable for indoor and outdoor industrial automation environments, including production lines, control cabinets, machinery, and process automation setups due to their IP67 protection when mated.

Q: What are the benefits of the IP67 rating for this connector?

A: The IP67 rating guarantees excellent protection against dust ingress and temporary immersion in water, ensuring reliable performance and longevity in harsh industrial or outdoor environments.

Q: How does the gold over nickel contact plating enhance performance?

A: This plating combination provides superior corrosion resistance and low contact resistance, maintaining optimal electrical conductivity and extending the operational life of the connector.
