Relimate Connector 201 PH Series 2mm

5.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply Not Applicable (Passive Component)
Output PCB Mount Socket/Pin connection
Features Polarized housing for correct orientation, reliable signal transfer, RoHS compliant
Interface 2.0mm Pitch, Crimp type
Components Housing with crimp contacts or pin header
Power Source Passive Component
Input Wire/Crimp connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Relimate Connector 201 PH Series 2mm Price And Quantity

Price 5.0 INR/Piece
Minimum Order Quantity 100 Piece

Mating Cycles 30 cycles
Contact Resistance 20m max
Packaging Tray/Plastic bag/Strip as required
Withstand Voltage 800V AC/minute
Contact Plating Tin-plated contacts
Insulation Resistance 1000M min at 500V DC
Number of Pins Available from 2-pin to 10-pin
Material Nylon 66 UL94V-0 (housing), Phosphor Bronze (pins)
Connector Orientation Horizontal/Vertical depending on model
Mounting Type Through-hole (header), cable mount (female housing)
Wire Gauge AWG#28-#24 (0.08-0.22mm2)

Relimate Connector 201 PH Series 2mm Product Specifications

Product Type Relimate PH Series Connector
Usage Electronic and electrical connections
Thickness 2mm pitch (contact spacing)
Capacity Varies by pin (2-pin to 10-pin)
Current Rating 2A max per contact
IP Rating Not Rated (Standard indoor use)
Color White (Housing)
Application General Electronics, Embedded Systems, Development Boards, Robotics
Operating Temperature -25C to +85C
Input Wire/Crimp connection
Weight Approx. 0.1g (per contact)
Size Varies by pins (2~10 pin standard)
Dimension (L*W*H) Varies by pin count (e.g. 12.0 x 4.0 x 3.0 mm for 2-pin)
Function Wire-to-board electrical connection
Power Source Passive Component
Supply Voltage Up to 100V
Rated Voltage 100V AC/DC
Power Supply Not Applicable (Passive Component)
Features Polarized housing for correct orientation, reliable signal transfer, RoHS compliant
Output PCB Mount Socket/Pin connection
Interface 2.0mm Pitch, Crimp type
Components Housing with crimp contacts or pin header

Mating Cycles 30 cycles
Contact Resistance 20m max
Packaging Tray/Plastic bag/Strip as required
Withstand Voltage 800V AC/minute
Contact Plating Tin-plated contacts
Insulation Resistance 1000M min at 500V DC
Number of Pins Available from 2-pin to 10-pin
Material Nylon 66 UL94V-0 (housing), Phosphor Bronze (pins)
Connector Orientation Horizontal/Vertical depending on model
Mounting Type Through-hole (header), cable mount (female housing)
Wire Gauge AWG#28-#24 (0.08-0.22mm2)

Relimate Connector 201 PH Series 2mm Trade Information

Delivery Time 7 Days

Product Description

Get instant savings and highlighted performance with the illustrious Relimate Connector 201 PH Series 2mm-a towering paragon for electronic connectivity. Available with 2 to 10 pins, this connector offers robust reliability with a housing made from UL94V-0 rated Nylon 66 and pins crafted from phosphor bronze, ensuring durability. The tin-plated contacts and polarized design guarantee precision and secure mating. Suitable for wire-to-board connections across embedded systems, robotics, and development boards, enjoy up to 100V rated voltage and 2A per contact. RoHS compliant, tailored for general electronic excellence.

Versatile Applications and Suitable Users

Engineers, OEMs, and DIY enthusiasts widely use the Relimate Connector 201 PH Series 2mm for wire-to-board applications. This connector is suitable for general electronics, development boards, robotics, and embedded systems projects. Its reliable construction and adaptable mounting types make it ideal for anyone who requires secure, compact, and efficient connectivity solutions in electronic and electrical equipment.

Domestic Market, Sample Policy & Supply Efficiency

Relimate Connector 201 PH Series 2mm excels in India's main domestic market. With streamlined order processing and robust supply ability, customers benefit from efficient transportation, secure packing, and prompt dispatch services. Samples are generally offered based on request, supporting confident purchasing decisions. The company ensures careful handling during every step-packing and delivery-resulting in a consistent supply experience for distributors, manufacturers, and trading partners across the country.

FAQ's of Relimate Connector 201 PH Series 2mm:

Q: How is the Relimate Connector 201 PH Series 2mm typically used?

A: The connector is mainly used for wire-to-board electrical connections in general electronics, embedded systems, development boards, and robotics.

Q: What are the benefits of the polarized housing in this connector?

A: The polarized housing ensures correct orientation during installation, reducing connection errors and promoting reliable signal transfer.

Q: Where can I order the Relimate Connector 201 PH Series, and is sample testing available?

A: Distributors, exporters, importers, manufacturers, traders, and wholesalers throughout India provide this connector, with samples commonly available upon request to facilitate evaluation before bulk orders.

Q: How does order processing and dispatch work for this connector?

A: Orders are processed efficiently, followed by careful packing and secure dispatch to ensure the products reach customers safely and on time.

Q: What usage environments are suitable for this connector?

A: It's best suited for standard indoor environments in electronics, with an operating temperature range of -25C to +85C, and is not rated for waterproof or high-dust applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Wire To Board Connectors' category

201 Male AWTP SMD Price : 50 INR/Piece Minimum Order Quantity : 100 Color : Black Application : Surface mount PCB connection Operating Temperature : 40C to +105C Current Rating : 3 A Size : 2.54 mm pitch Rated Voltage : 250 V AC/DC Power Supply : Not applicable (passive component) Usage : Automotive, PCB, and consumer electronics Product Type : Surface Mount Male Pin Header Capacity : Single row, 2 pin IP Rating : Not rated Input : Male pin interface Weight : Approximately 0.5 grams Dimension (L*W*H) : 6.5 mm x 2.5 mm x 3.1 mm Function : Electrical connection in SMD (Surface Mount Device) circuits Supply Voltage : 250 V max (as per Rated Voltage) Components : Phosphor bronze, tin plated Output : PCB surface mount contacts Features : SMD mount, durable pins, reliable contact, reflow solder compatible Interface : Male Pin header

Send Inquiry

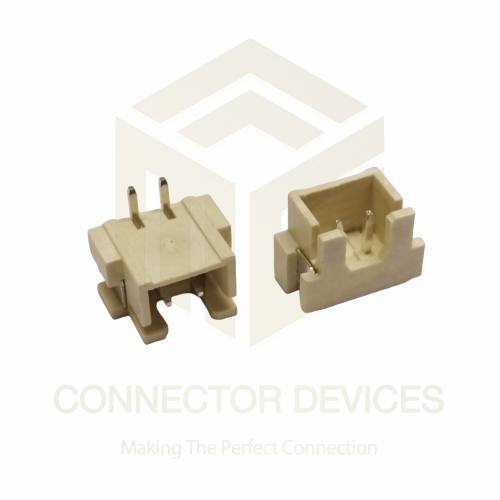

2515 Male SMT Top Entry Price : 12 INR/Piece Minimum Order Quantity : 100 Color : Black Application : Consumer electronics, PCBs, Industrial control Operating Temperature : 40C to +105C Current Rating : 2A AC/DC Size : 2mm pitch Rated Voltage : 250V AC/DC Usage : PCB mounting for electronic devices Product Type : Male SMT Top Entry Connector Capacity : Single to multiple pin options IP Rating : Not rated Input : Male pin header connection Weight : Approx. 0.25g (per piece) Dimension (L*W*H) : As per manufacturer datasheet Function : Wiretoboard connection Supply Voltage : 250V AC/DC (max) Components : Plastic housing, metal contacts Output : Signal transfer to PCB circuit Features : Top entry, compact size, SMT mount, high reliability Interface : SMT (Surface Mount Technology)
