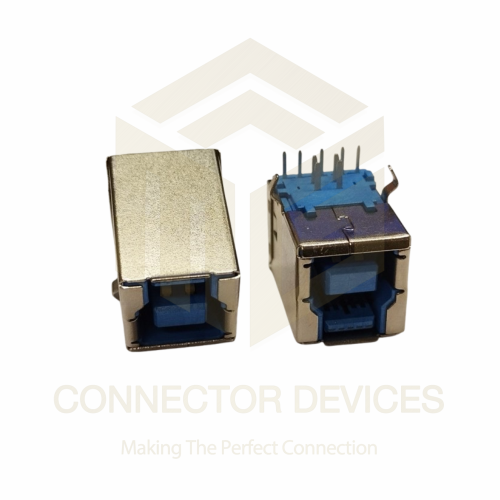

USB B TYPE FEMALE RA PCB 9 Pin 3.0

90 INR/Piece

Get a Price/Quote

Product Details:

Male End Type N/A (Female Connector)
Application USB 3.0 Device Connection, PCB Mount
Female End Type USB 3.0 B Type Female
Material Copper Alloy (Contacts), Thermoplastic (Housing), Stainless Steel (Shell)
Connector USB B Type Female RA (Right Angle) 3.0
Pairs Twisted Pair (Differential Pairs inside PCB)
Temperature Operating -40C to +85C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

USB B TYPE FEMALE RA PCB 9 Pin 3.0 Price And Quantity

Minimum Order Quantity 100 Piece
Price 90 INR/Piece

Insulation Resistance 1000M min at 500V DC
Mounting type Right Angle PCB Mount
Mating Cycles Over 1500 cycles
Dimensions Approx. 16.0mm x 13.7mm x 11.5mm (body)
Dielectric Withstanding Voltage 500V AC/minute
Current Rating 1.8A max per contact
Compliance RoHS, REACH
Contact Plating Gold-plated contacts
Pin Count 9 pins (USB 3.0 standard)
Contact Resistance 30m max

USB B TYPE FEMALE RA PCB 9 Pin 3.0 Product Specifications

Flame Resistance Level UL94V-0 Rated Housing
Pairs Twisted Pair (Differential Pairs inside PCB)
Number of Conductor 9 (9 pins)
Connector USB B Type Female RA (Right Angle) 3.0
Material Copper Alloy (Contacts), Thermoplastic (Housing), Stainless Steel (Shell)
Female End Type USB 3.0 B Type Female
Outer Diameter N/A (PCB Mount)
Male End Type N/A (Female Connector)
Insulation Plastic Insulator on contacts
Application USB 3.0 Device Connection, PCB Mount
Jacket Material N/A (Connector only)
Connector Type Right Angle, PCB Mount
Cable Type N/A (Connector only)
Voltage Rating 30V AC/DC
Wire Gauge N/A (Connector, no cable)
Cable Length N/A (Connector only)
Temperature Operating -40C to +85C
Color Blue (USB 3.0 Standard)
Sheild Yes, metal shielded housing

Insulation Resistance 1000M min at 500V DC
Mounting type Right Angle PCB Mount
Mating Cycles Over 1500 cycles
Dimensions Approx. 16.0mm x 13.7mm x 11.5mm (body)
Dielectric Withstanding Voltage 500V AC/minute
Current Rating 1.8A max per contact
Compliance RoHS, REACH
Contact Plating Gold-plated contacts
Pin Count 9 pins (USB 3.0 standard)
Contact Resistance 30m max

Product Description

Explore the enviable design and valorous performance of our USB B TYPE FEMALE RA PCB 9 Pin 3.0 connector. This classic right-angle connector, featuring 9 gold-plated pins and a reliable metal shielded housing, is engineered for superior USB 3.0 device connections. Rated at 1.8A max per contact and over 1500 mating cycles, it delivers enduring durability and impressive current capacity. The RoHS and REACH-compliant blue connector ensures excellent insulation resistance and heightened safety with UL94V-0 flame-retardant materials. Order today from leading distributors, exporters, manufacturers, and wholesalers in India and upgrade your PCB assemblies with a featured, high-performance solution.

Versatility and Key Applications of USB B TYPE FEMALE RA PCB 9 Pin 3.0

Used as a vital link for USB 3.0-enabled devices, this connector finds a place on PCB surface assemblies in both industrial and commercial machines. It's ideal for applications demanding high-speed data transfer and robust connection integrity, including printers, external drives, and instrument panels. Features such as twisted differential pairs, gold-plated contacts, and a metal shielded housing ensure reliable performance and stability within high-density layouts. The classic right-angle mount fits seamlessly in today's compact electronic devices.

Payment Terms, Pricing, and Domestic Market Supply for USB B TYPE FEMALE RA PCB 9 Pin 3.0

With competitive sale prices and transparent list pricing, our connectors are available across the domestic mar. Flexible payment terms are offered to suit bulk and wholesale orders, enhancing procurement efficiency. We ensure a steady supply ability to meet large-scale manufacturing needs, supporting continuous availability nationwide. Whether as a distributor, importer, or manufacturer, you benefit from swift order fulfillment and dedicated customer service for all your PCB connector requirements.

FAQ's of USB B TYPE FEMALE RA PCB 9 Pin 3.0:

Q: How is the USB B TYPE FEMALE RA PCB 9 Pin 3.0 connector typically used in electronic assemblies?

A: This connector is widely used for high-speed USB 3.0 device connections on PCBs, making it ideal for applications such as data transfer in external drives, instrument panels, and printers.

Q: What features make this connector a preferred choice for engineers and designers?

A: The connector offers gold-plated contacts, robust metal shielding, high insulation resistance, and right-angle mounting, ensuring reliable performance, signal integrity, and longevity across demanding environments.

Q: When should I choose a USB B TYPE FEMALE RA PCB 9 Pin 3.0 over other connector types?

A: Opt for this connector when you require high-speed data transfer, superior durability, and a secure, shielded design for PCB-mounted devices that demand USB 3.0 compatibility.

Q: Where can I purchase the USB B TYPE FEMALE RA PCB 9 Pin 3.0 connector in India?

A: You can order today from a network of authorized distributors, exporters, importers, manufacturers, and wholesalers specializing in electronic components throughout India.

Q: What is the process for installing this connector onto a PCB?

A: The connector is designed for right-angle PCB mount. Solder the 9 pins into compatible plated through-holes on the board, ensuring proper alignment and grounding for optimal performance.

Q: What benefits does the gold-plated contact feature provide?

A: Gold plating on contacts reduces resistance and corrosion, delivering improved conductivity and a longer service lifespan, particularly in environments subject to frequent mating cycles.
