30 Pin Controller Female Connector

Get a Price/Quote

Product Details:

Application Controller Interface, I/O Devices, Industrial PCB, Communication Equipment
Capacity 2.0 Amp max per pin
Pairs Single
Temperature -25C to +85C
Voltage Rating 250V AC/DC
Female End Type Socket
Material Phosphor Bronze (contacts), Thermoplastic (housing)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

30 Pin Controller Female Connector Price And Quantity

Minimum Order Quantity 100 Piece

30 Pin Controller Female Connector Product Specifications

Number of Conductor 30
Voltage Rating 250V AC/DC
Insulation PVC
Material Phosphor Bronze (contacts), Thermoplastic (housing)
Color Black
Connector Type IDC (Insulation Displacement Connector)
Flame Resistance Level UL94V-0
Wire Gauge 28 AWG
Jacket Material PVC
Length Standard 15 cm (customizable)
Female End Type Socket
Capacity 2.0 Amp max per pin
Pairs Single
Application Controller Interface, I/O Devices, Industrial PCB, Communication Equipment
Sheild Unshielded
Cable Length 15 cm (customizable)
Male End Type Pin Header (not included)
Temperature -25C to +85C
Cable Type Flat Ribbon Cable
Outer Diameter Approx 1.5 mm per wire
Connector 30 Pin Female

Locking Mechanism Polarized with latching
Insulation Resistance 1000 M min at 500V DC
Contact Resistance 30 m max
Mounting Type Cable Mount
RoHS Compliance Yes
Pitch 2.54 mm
Mating Cycles 500 cycles (min)
Dielectric Withstanding Voltage 600V AC for 1 minute

Product Description

Take advantage of the superior engineering behind the 30 Pin Controller Female Connector, offering invincible performance for your critical connections. Designed for cable mount applications, this connector boasts lavish specifications such as a 2.54 mm pitch, 500+ mating cycles, and an insulation resistance of 1000 M at 500V DC. Its polarized, latching mechanism ensures secure connection, while RoHS compliance highlights its environmental consideration. Explore its flexible applications across industrial PCBs, I/O devices, and communication equipment. Grab yours now to experience reliability and robust durability, with customizable length options meeting every requirement.

Versatile Applications and Outstanding Advantages

The 30 Pin Controller Female Connector is specifically designed for cable mount use, making it an essential component for controller interfaces, I/O devices, industrial PCBs, and communication systems. Its primary advantage lies in its robust construction using premium materials like phosphor bronze and thermoplastic, ensuring long-lasting, superior performance. This product is ideal for scenarios demanding reliable data transfer and high mating cycles, offering unmatched ease of use and adaptability for various electronic and industrial settings.

Sample Policy, Shipping Terms, and Certifications

Sample policies are tailored for distributors, exporters, importers, manufacturers, traders, and wholesalers with a flexible outlay structure. Shipped goods are carefully packaged and handed over through any major Indian FOB port, ensuring prompt and secure delivery. The connector comes with recognized certifications, such as RoHS compliance and compliance with industry flame resistance standards like UL94V-0. These certifications guarantee quality and safety, providing peace of mind to all stakeholders involved in procurement and usage.

FAQ's of 30 Pin Controller Female Connector:

Q: How is the 30 Pin Controller Female Connector typically mounted?

A: This connector is designed for cable mounting, making it suitable for flat ribbon cables in a variety of electronic applications.

Q: What advantage does the polarized latching mechanism provide?

A: The polarized with latching mechanism offers secure connections, reduces accidental disconnections, and ensures proper alignment during installation or frequent mating cycles.

Q: When is the ideal scenario to use this controller connector?

A: This connector is ideally used in environments demanding reliable connections, such as industrial PCBs, I/O interface devices, and communication equipment.

Q: Where can the connector be shipped from in India?

A: Goods can be shipped and handed over at major Indian FOB ports, resulting in efficient export handling for international buyers.

Q: What certifications validate the safety and quality of the connector?

A: The connector features RoHS compliance and meets UL94V-0 flame resistance standards, ensuring both environmental and operational safety.

Q: How is the sample policy structured for potential bulk buyers?

A: Sample policies are flexible and designed to accommodate various business types, offering reasonable outlay and tailored arrangements for distributors and wholesalers.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'USB and Micro Jack Connector' category

USB A Male -Micro USB 3.0 Minimum Order Quantity : 100 Connector Type : Other, Nickel Plated Color : Black Material : Other , Copper Connector : USB A Male to Micro USB 3.0 B Male Cable Type : other, High Speed USB 3.0 Application : Data transfer, Charging for HDD/SSD, External devices Female End Type : Micro USB 3.0 B Flame Resistance Level : UL VW1 Jacket Material : PVC Wire Gauge : 28/24 AWG Length : 1 Meter Insulation : Polyethylene Voltage Rating : 30V Number of Conductor : 9 Outer Diameter : 5.5 mm Temperature : 20C to 80C Male End Type : USB A Male Cable Length : 1 Meter Sheild : Foil and Braid Shield Pairs : 1 data pair, 7 power & signal Capacity : Up to 5 Gbps

Send Inquiry

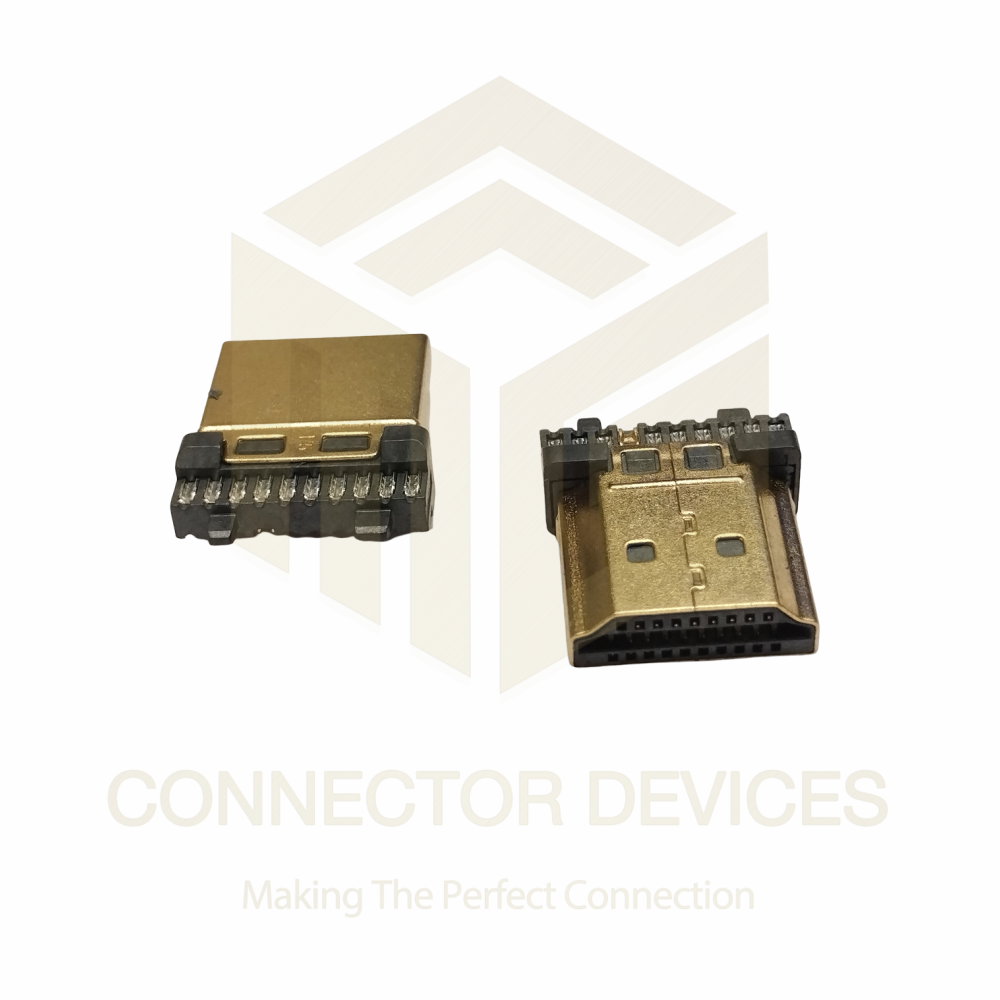

19 Pin HDMI Male Solder Type (HDMI-19P-4145) Minimum Order Quantity : 100 Connector Type : Other, Solder Type Color : Black Material : Other , GoldPlated Copper Contacts, Metal Shell, Thermoplastic Housing Connector : HDMI 19 Pin Male Solder Type Cable Type : other, HDMI Application : Audio/Video Equipment, HDTV, Monitor, Projector Female End Type : N/A (Male to Solder Termination) Flame Resistance Level : VW1 Jacket Material : PVC Wire Gauge : 28 AWG Supported Length : Custom/As Required Insulation : PE Insulated Voltage Rating : 30V Max Number of Conductor : 19 Outer Diameter : ~7.3mm Temperature : 20C to +80C Male End Type : HDMI 19 Pin Male Cable Length : As Required Sheild : Yes, Shielded Pairs : Twisted Pairs (for differential signals) Capacity : HighSpeed Data Transmission
