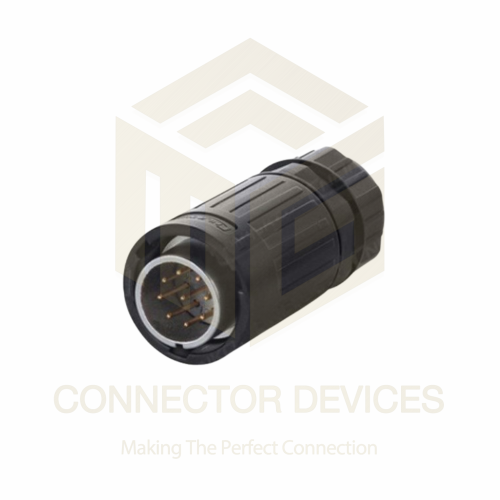

YA20 250V 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: YA20 250V 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 450.0 INR
Availability: InStock

450.0 INR/Piece

Get a Price/Quote

Product Details:

Output Pin connector output
Power Source External Power Supply
Operating Temperature -40C to +85C
IP Rating IP67
Input Pin connector input
Usage Power transmission
Power Supply AC/DC
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YA20 250V 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 450.0 INR/Piece

YA20 250V 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Current Rating 5A
Operating Temperature -40C to +85C
Rated Voltage 250V
Output Pin connector output
Frequency 50/60 Hz
Weight Approx. 60g
Power Source External Power Supply
Supply Voltage 250V AC/DC
Thickness Standard
Features Waterproof, Dustproof, Corrosion resistant, Secure screw coupling
Application Industrial equipment, Outdoor power tools, LED lighting
Function Male waterproof power connection
Components Plastic + Metal shell, Solder terminals
Interface 9 Pin Male Solder Type
Input Pin connector input
Color Black and Silver
Usage Power transmission
Dimension (L*W*H) Approx. 72mm (L) x 28mm (D) (with cap)
Power Supply AC/DC
IP Rating IP67
Capacity 5A max current
Product Type Waterproof Power Connector
Size YA20 Series

Mounting Type Cable mount/receptacle
Cable Diameter Range 6mm-12mm
Protection Class IP67 (dust and immersion protected)
Shell Type Threaded coupling, anti-vibration
Body Material High-grade plastic and metal alloy
Number of Pins 9 pin male
Sealing Gasket Silicone rubber
Contact Material Copper alloy contacts with nickel plating
Connection Type Solder terminal
Flammability Rating UL94-V0
Mechanical Life >1000 mating cycles

YA20 250V 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:250V
Withstanding voltage:1500V
Contact dimension:Phi 1x9
Insertion and extraction force:2.7N Max
Temperature and humidity:-40+80C; 40C, 85%RH
Mating cycle:> 1700 Times
Screw torque:42-53 (N.m)

Superior Waterproof Protection for Rugged Applications

Designed with an IP67 rating and silicone gasket, this connector ensures dependable performance even in harsh outdoor or industrial conditions. The corrosion-resistant plastic and metal shell, paired with a threaded coupling, offers exceptional dust and water resistance, making it perfect for demanding environments such as outdoor machinery or LED lighting installations.

Reliable Electrical Performance and Longevity

Equipped with copper alloy contacts, nickel plating, and UL94-V0 flame-retardant materials, this power connector delivers robust electrical conductivity and safety. With a mechanical life exceeding 1000 mating cycles, it supports intensive use and consistent power transmission in high-frequency industrial settings.

FAQ's of YA20 250V 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I install the YA20 250V 5A 9Pin Male Plug?

A: To install, solder your wires to the 9-pin terminals according to your circuit requirements. Secure the plug onto your cable (6mm-12mm diameter) using the provided cable mount. Thread the coupling to achieve a tight, waterproof connection with the mating female socket.

Q: What are the benefits of the IP67 waterproof rating?

A: The IP67 rating means the connector is fully protected against dust ingress and can withstand temporary immersion in water, making it ideal for outdoor or moisture-prone environments like industrial sites or external lighting setups.

Q: When should I use this 9-pin male plug over other connectors?

A: Choose this connector when you require a robust, dustproof, and waterproof connection for transmitting both AC and DC power up to 250V and 5A, especially in environments vulnerable to vibration or moisture exposure.

Q: Where is the YA20 connector commonly used?

A: This connector is widely used in industrial equipment, outdoor power tools, and LED lighting systems, particularly where reliable and secure power transmission is essential under challenging environmental conditions.

Q: What is the process for ensuring waterproof performance after installation?

A: After soldering, ensure the sealing gasket is properly positioned and the threaded shell is tightly screwed on. The silicone gasket and secure coupling provide the necessary seal to maintain IP67 protection.

Q: How does the anti-vibration and secure screw coupling feature benefit my application?

A: The threaded (screw) coupling and anti-vibration design prevent accidental disconnects and loosening, ensuring stable power delivery and enhanced safety in applications subject to movement or vibration.
