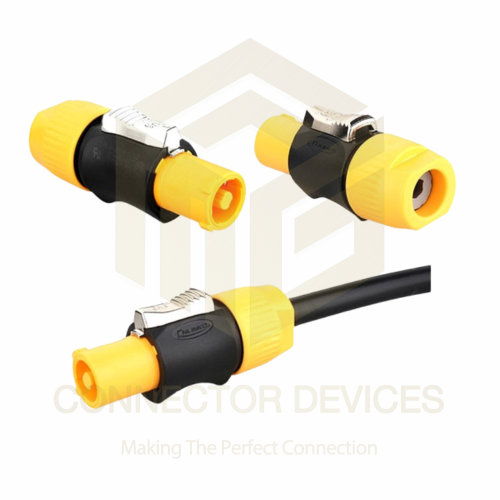

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Plug Power-Out Connector

Name: YF24 500V 20A 3Pin PowerCON IP67 Waterproof Plug Power-Out Connector
Brand: CONNECTOR DEVICES
Price: 441.0 INR
Availability: InStock

441.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Outdoor Power Distribution, Stage Equipment, Industrial Applications
Components Shell, Contacts, Locking Mechanism
Interface 3-Pin Lockable Power Connector
Output Power Output Connector
Input Cable Connection via Screw Terminals
Power Supply AC
Power Source AC Power
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Plug Power-Out Connector Price And Quantity

Price 441.0 INR/Piece
Minimum Order Quantity 100 Piece

Housing Material High Strength Engineering Plastic
Mating Cycles >500 Times
Seal Rubber Gasket
Pin Configuration 3 Pin (L, N, PE)
Humidity Resistance Up to 95% RH (Non-Condensing)
Flame Resistance UL94-V0
Mounting Type Cable Mount
Locking System Twist Lock
Cable Diameter Range 7-12mm
Contact Material Copper Alloy with Silver Plating

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Plug Power-Out Connector Product Specifications

Capacity 20A
Frequency 50/60Hz
Features Waterproof, Dustproof, Lockable, Robust Design, Corrosion-Resistant
Current Rating 20A
Function Power Out Waterproof Connector
Supply Voltage 500V AC
IP Rating IP67
Size 24mm Connector Diameter
Operating Temperature -25C to +80C
Interface 3-Pin Lockable Power Connector
Output Power Output Connector
Application Lighting, Audio, Industrial Equipment, Power Supply
Input Cable Connection via Screw Terminals
Power Source AC Power
Power Supply AC
Usage Outdoor Power Distribution, Stage Equipment, Industrial Applications
Color Blue & Gray
Weight Approx. 160g
Dimension (L*W*H) Approx. 95mm x 34mm x 34mm
Rated Voltage 500V
Product Type PowerCON Plug Connector
Components Shell, Contacts, Locking Mechanism

Housing Material High Strength Engineering Plastic
Mating Cycles >500 Times
Seal Rubber Gasket
Pin Configuration 3 Pin (L, N, PE)
Humidity Resistance Up to 95% RH (Non-Condensing)
Flame Resistance UL94-V0
Mounting Type Cable Mount
Locking System Twist Lock
Cable Diameter Range 7-12mm
Contact Material Copper Alloy with Silver Plating

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Plug Power-Out Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Fast Locking
Cable Specification:2.5mm2 4mm2 /1412AWG
Diameter Range:8mm 12mm
Rated Current:20A
Operating Voltage:500V
Durability:> 500 mating & unmating cycles
Temperature Rating:-40C80C

Rugged and Waterproof Design

Built for challenging environments, the YF24 PowerCON plug is IP67 rated, ensuring full protection against water and dust ingress. Its robust high-strength engineering plastic housing and rubber gasket seal make it ideal for outdoor power distribution and industrial usage, even in wet or dusty conditions.

Reliable Electrical Performance

Equipped with copper alloy contacts with silver plating for maximum conductivity and longevity, this connector supports up to 500V AC and 20A current. It operates safely within -25C to +80C and achieves over 500 mating cycles, providing dependable performance for critical power connections.

FAQ's of YF24 500V 20A 3Pin PowerCON IP67 Waterproof Plug Power-Out Connector:

Q: How do I connect cables to the YF24 3Pin PowerCON connector?

A: To connect cables to the YF24 PowerCON plug, strip the cable ends and connect them to the screw terminals inside the connector. The cable diameter should be between 7-12mm. Tighten the screw terminals securely to ensure proper electrical contact, then assemble the connector using the twist-lock mechanism for a waterproof seal.

Q: What applications are best suited for the YF24 500V 20A PowerCON plug?

A: This connector is ideal for outdoor power distribution, stage lighting, audio systems, industrial machinery, and equipment that require secure, weatherproof electrical connections. Its IP67 and flame-resistant certifications make it suitable for harsh environments and critical power supply tasks.

Q: Where can I use the YF24 PowerCON connector considering its IP67 rating?

A: The YF24's IP67 rating allows for use in both outdoor and indoor settings where water, rain, or dust may be present, such as open-air events, live concerts, construction sites, and industrial facilities.

Q: What is the locking system and how does it enhance security?

A: The connector uses a twist-lock mechanism that securely locks the plug in place, preventing accidental disconnection. This ensures a stable and safe power connection, especially in high-vibration or high-movement environments.

Q: When should I consider replacing the connector?

A: The YF24 connector is rated for more than 500 mating cycles. For optimal performance and safety, check the connector regularly for signs of wear, damage, or reduced locking strength, and replace it if necessary after repeated use or exposure to extreme environments.

Q: What are the main benefits of using the YF24 PowerCON plug?

A: Key benefits include robust waterproof and dustproof performance, high current and voltage handling (20A, 500V AC), flame resistance (UL94-V0), long service life, and secure locking, ensuring reliable power distribution across demanding applications.
