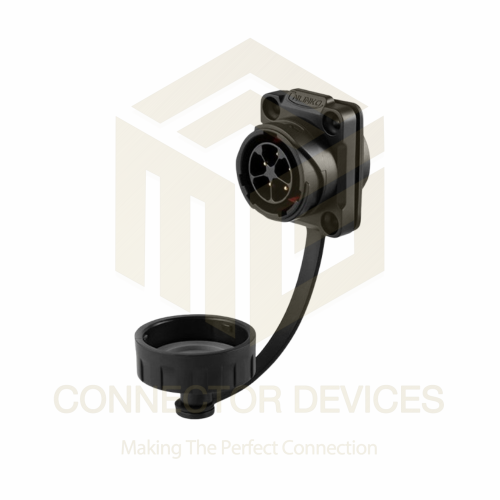

YM20 10A 5Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal

Name: YM20 10A 5Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 442.0 INR
Availability: InStock

442.0 INR/Piece

Get a Price/Quote

Product Details:

Output 5-pin female socket interface
Input Up to 10A max current per pin
Operating Temperature -40C to +85C
Power Source Panel or device mounted, wired
Features Waterproof, dustproof, corrosion resistant, flange mount
Power Supply Through connector terminal
Components Plastic body, brass pins, flange, sealing ring
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 10A 5Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Price And Quantity

Price 442.0 INR/Piece
Minimum Order Quantity 100 Piece

YM20 10A 5Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Product Specifications

Color Black
Rated Voltage 500V AC / 500V DC
Features Waterproof, dustproof, corrosion resistant, flange mount
Interface 5-pin female solder terminal
Supply Voltage Up to 500V
Power Source Panel or device mounted, wired
Capacity 10A per contact
Current Rating 10A
IP Rating IP68
Function Electrical power connection in harsh or outdoor environments
Components Plastic body, brass pins, flange, sealing ring
Input Up to 10A max current per pin
Usage Industrial power equipment connection
Weight Approx. 48g
Operating Temperature -40C to +85C
Dimension (L*W*H) Approx. 45mm x 45mm x 20mm (flange included)
Application LED lighting, automation, apparatus, outdoor equipment
Product Type Waterproof Power Connector
Size YM20 shell size, Compact
Output 5-pin female socket interface
Power Supply Through connector terminal

Flame Retardant Level UL94 V-0
Mounting Type Flange mount solder type
Insulation Resistance >2000 M at 500V DC
Cable Diameter Accepted 6mm to 11mm
Environmental Protection UV resistant, moisture proof
Contact Material Brass with gold plating
Mating Cycles >500
Contact Resistance 5 m
Number of Pins 5
Sealing Gasket Included for IP68 protection
Connector Series YM20
Withstand Voltage 1500V AC/min
Shell Material High grade plastic
Terminal Type Solder terminal

YM20 10A 5Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53(N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Reliable Power Connection for Demanding Environments

Engineered for reliability, the YM20 5Pin Female Socket ensures a waterproof and dustproof connection, ideal for outdoor and industrial applications. Its UV-resistant, flame-retardant plastic housing and gold-plated brass contacts provide exceptional durability, while the IP68 sealing gasket guarantees protection from moisture and contaminants. Suitable for use in LED lighting, automation, or any harsh environment, this connector delivers stability and long service life.

Versatile Flange Mount Solder Terminal Design

With flange mount and solder terminals, installation of the YM20 connector is straightforward and secure. Accepting cables with diameters from 6mm to 11mm, this connector is easily integrated into panel or device-mounted configurations. Its compact, lightweight design allows for convenient handling, while the solder terminals enable reliable power connections in situations requiring a robust, permanent interconnection.

FAQ's of YM20 10A 5Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal:

Q: How do you install the YM20 10A 5Pin Female Socket?

A: The YM20 connector can be flange mounted onto a panel or device. Simply align the flange with your pre-drilled mounting surface, secure it using screws, and solder the wires to the provided terminals. The included sealing gasket ensures an IP68-rated waterproof connection.

Q: What environments is this connector suitable for?

A: This connector is ideal for outdoor and industrial environments where exposure to water, dust, UV radiation, or corrosive conditions may occur. Common applications include LED lighting, automation equipment, and outdoor apparatus requiring a reliable power connection.

Q: When should I use a flange mount, IP68-rated connector like this?

A: Choose the YM20 5Pin Socket whenever you require a durable, waterproof connection for high-voltage and high-current applications (up to 500V, 10A per pin), especially in tough conditions where moisture or dust are present.

Q: Where can the YM20 5Pin Female Socket be used?

A: This connector is versatile and can be used in industrial power equipment, outdoor LED lighting installations, automation systems, machinery panels, and other demanding applications requiring secure, moisture-proof electrical connections.

Q: What is the process for wiring and sealing this connector?

A: After mounting the connector using the flange, strip your cable ends, solder them to the terminal pins, and ensure the sealing gasket is properly in place to maintain its IP68 waterproof rating and environmental integrity.

Q: What are the advantages of using this connector in outdoor setups?

A: The main benefits include high current and voltage capacity, reliable waterproof and dustproof protection (IP68), flame retardance, UV resistance, and longevity of over 500 mating cycles, ensuring safe and long-term use in harsh environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number
