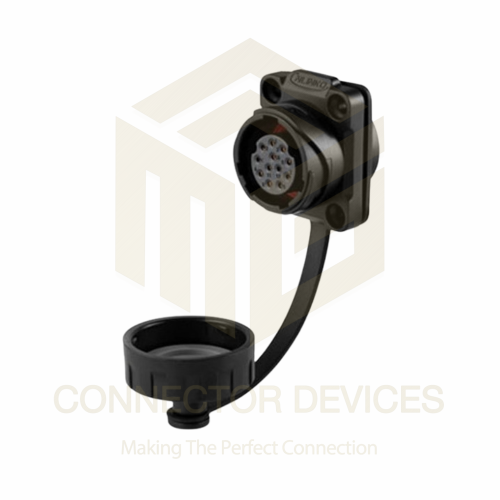

YM20 5A 12Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal

Name: YM20 5A 12Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 374.0 INR
Availability: InStock

374.0 INR/Piece

Get a Price/Quote

Product Details:

Input Solder terminal, wire connection
Output Solder terminal, wire connection
Interface 12 pin solder terminals
Features Waterproof, dustproof, vibration resistant, quick-lock flange mount
Power Supply Through cable connection
Power Source External power supply
Operating Temperature -40C to +85C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 5A 12Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Price And Quantity

Price 374.0 INR/Piece
Minimum Order Quantity 100 Piece

YM20 5A 12Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Product Specifications

Components Connector body, 12 solder terminals, flange mount hardware
Thickness Shell thickness 2mm (approx.)
Supply Voltage Up to 500V AC
Usage Electrical power and signal connectors
Current Rating 5A per pin
Size YM20 (20mm shell diameter)
Function Power connection and signal transmission
Power Source External power supply
Operating Temperature -40C to +85C
IP Rating IP68
Rated Voltage 500V AC (max)
Power Supply Through cable connection
Weight Approx. 38g
Product Type Female power connector socket
Frequency 50-60Hz
Dimension (L*W*H) 51mm x 29mm x 29mm (approx.)
Application Industrial automation, lighting, automotive, outdoor equipment
Output Solder terminal, wire connection
Input Solder terminal, wire connection
Color Black
Features Waterproof, dustproof, vibration resistant, quick-lock flange mount
Capacity Up to 5A per pin
Interface 12 pin solder terminals

Number of Pins 12 pins (female)
Mounting Type Flange mount with four screw holes
Mating Connector Compatible with YM20 12-pin male plug
Standards Compliance RoHS, CE certified
Mechanical Life >500 mating cycles
Material High-quality plastic shell (PA66)
Contact Resistance <2m
Insulation Resistance >2000M at 500V DC
Environmental Protection UV resistant, corrosion resistant
Sealing Method Silicone ring for enhanced waterproofing
Contact Material Copper alloy with gold-plated finish
Wire Gauge Supported Maximum 2.5mm2 (AWG 14)

YM20 5A 12Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:250V
Withstanding voltage:2500V
Contact resistance:< 1mohm
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Superior Waterproof and Dustproof Protection

Engineered with an IP68 waterproof rating and silicone sealing ring, the YM20 12Pin Female Socket provides outstanding protection against water and dust. This makes it a perfect choice for outdoor and harsh industrial environments, ensuring sustained performance and longevity.

Versatile and High-Performance Connectivity

Designed for flexibility, this connector delivers secure power transmission and signal transfer at up to 500V AC and 5A per pin. Its gold-plated contacts minimize resistance (<2m) and maximize conductivity, ensuring consistent performance across various applications, including automation, lighting, and outdoor systems.

Rugged Construction, Easy Installation

The durable PA66 plastic shell and corrosion-resistant materials provide excellent durability and UV resistance. The quick-lock flange mount with four screw holes allows stable and simple installation, accommodating wire gauges up to 2.5mm2 (AWG 14) for versatile wiring solutions.

FAQ's of YM20 5A 12Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal:

Q: How is the YM20 12Pin Female Socket installed?

A: The socket features a flange mount design with four screw holes for secure installation on panels or equipment. Simply align the flange with your mounting location, fasten with screws, and connect wires to the solder terminals as per your wiring requirements.

Q: What are the main benefits of using this connector in outdoor or harsh environments?

A: With its IP68 waterproof rating, UV resistance, and corrosion-resistant plastic shell, this connector reliably protects electrical contacts from water, dust, and environmental factors, making it well-suited for outdoor and industrial applications.

Q: Where can this connector be used most effectively?

A: The connector is ideal for applications such as industrial automation, outdoor lighting systems, automotive wiring, and other environments where high reliability and robust protection are required.

Q: What process should be followed to connect wires to the YM20 12Pin Female Socket?

A: To connect wires, strip the insulation off the end of each wire (up to 2.5mm2/AWG 14), insert the wire into the designated terminal, and solder the connection securely. Repeat for each pin, following your circuit's pinout.

Q: What kind of power and signal requirements does this connector support?

A: Each of the 12 pins supports up to 5A and 500V AC, making it suitable for both power delivery and signal transmission in a variety of electrical systems with a frequency range of 50-60Hz.

Q: How does the connector maintain long-term reliability during frequent use?

A: The YM20 socket uses high-quality materials and gold-plated copper alloy contacts, rated for over 500 mating cycles, ensuring stable performance throughout its lifespan even with repeated connections.

Q: What standards and certifications does this socket comply with?

A: This connector is compliant with RoHS and CE standards, confirming that it meets essential safety and environmental requirements required for industrial and commercial usage.
