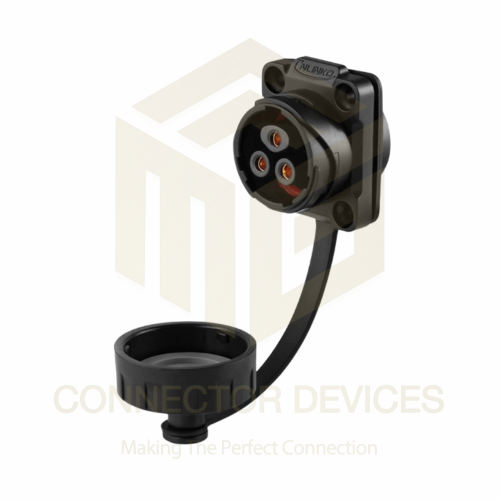

YM20 20A 3Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal

Name: YM20 20A 3Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 377.0 INR
Availability: InStock

377.0 INR/Piece

Get a Price/Quote

Product Details:

Output To Mating Male Plug
Operating Temperature -25C to +85C
Components Socket, Flange Mount Shell, Solder Terminals
Power Source Wired Electrical
Features High Durability, Waterproof, Dustproof, Corrosion-Resistant
Power Supply Electrical
Usage Outdoor/Indoor Power Connections
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 20A 3Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 377.0 INR/Piece

Termination Style Solder Terminal
Mounting Type Flange Mount
Mating Cycle 500 cycles
Contact Material Copper Alloy (Silver Plated)
Protection Level Waterproof and Dustproof
Flame Retardant Grade UL94-V0
Packing Type Individual Polybag
Shell Material High-quality plastic (PA66)
Cable Diameter Range 6-12mm
Sealing Method Rubber Gasket
Connector Type 3-Pin Female Socket
RoHS Compliant Yes

YM20 20A 3Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Product Specifications

Function Power Connector Socket
Dimension (L*W*H) Approx. 44mm x 44mm x 57mm (Flange diameter x Flange width x Height)
Operating Temperature -25C to +85C
Thickness Standard Shell Thickness
Output To Mating Male Plug
Application Industrial Equipment, LED Lighting, Power Distribution, Outdoor Installations
Supply Voltage Up to 500V
Current Rating 20A
Size YM20 Series
Frequency 50/60Hz
Weight Approx. 50g
Components Socket, Flange Mount Shell, Solder Terminals
Rated Voltage 500V AC/DC
Product Type Waterproof Power Connector
Capacity 20A max. current
Power Supply Electrical
Features High Durability, Waterproof, Dustproof, Corrosion-Resistant
Power Source Wired Electrical
Color Black
Input 3 Pin Female
Interface Panel Flange Mount, Solder Terminal Interface
IP Rating IP68
Usage Outdoor/Indoor Power Connections

Termination Style Solder Terminal
Mounting Type Flange Mount
Mating Cycle 500 cycles
Contact Material Copper Alloy (Silver Plated)
Protection Level Waterproof and Dustproof
Flame Retardant Grade UL94-V0
Packing Type Individual Polybag
Shell Material High-quality plastic (PA66)
Cable Diameter Range 6-12mm
Sealing Method Rubber Gasket
Connector Type 3-Pin Female Socket
RoHS Compliant Yes

YM20 20A 3Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Superior Waterproof Protection

Rated IP68, the YM20 socket ensures maximum protection against water and dust ingress, making it suitable for challenging outdoor and industrial settings. Its robust PA66 plastic shell and precision rubber gasket sealing maintain secure performance in all weather conditions, minimizing downtime and maintenance.

High-Current, Reliable Performance

With a maximum rating of 20A and up to 500V AC/DC capability, this connector supports high-power transmission, ensuring stable operation of industrial equipment and lighting systems. The silver-plated copper alloy contacts enhance conductivity and reduce resistance for long-term reliability.

Safe and Easy Installation

The flange mount design and solder terminals make installation straightforward, providing secure mechanical and electrical connectivity. Its compliance with RoHS standards ensures safe materials, while UL94-V0 flame retardancy adds a layer of protection, safeguarding against potential fire hazards.

FAQ's of YM20 20A 3Pin Female Socket IP68 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal:

Q: How is the YM20 20A 3Pin Female Socket installed for secure power connections?

A: The socket is designed for flange mounting onto panels, with solder terminals for wiring connections. Use the provided flange holes to secure the socket firmly in place and solder your power cables to the designated contacts. Ensure the rubber gasket is seated correctly to maintain the IP68 waterproof seal.

Q: What environments are suitable for using this connector?

A: This connector is ideal for both indoor and outdoor environments, including industrial equipment, LED lighting, and power distribution systems. Its IP68 protection and corrosion-resistant materials make it reliable in harsh, dusty, or wet settings.

Q: When should I choose this 3-pin female socket over other types?

A: Select this connector when you require a waterproof and dustproof power connection that can handle up to 20A and 500V AC/DC. It is especially beneficial for applications where durability and environmental sealing are critical, such as outdoor installations or industrial machinery.

Q: What is the process for maintaining the waterproof integrity of the YM20 socket?

A: To preserve the waterproof rating, ensure correct installation using the rubber gasket included. Regularly inspect for any wear or damage to the seal, and keep the soldered connections protected from moisture. Re-tighten flange screws as needed to maintain compression on the gasket.

Q: Where can the YM20 socket be most effectively used?

A: It is highly effective in outdoor installations, industrial control panels, power distribution units, and LED lighting systems. Its robust design makes it suitable for severe environments encountered in manufacturing plants, construction sites, and outdoor event venues.

Q: What benefits does the flame-retardant PA66 plastic provide?

A: The high-quality PA66 plastic is not only tough and durable but also flame-retardant to UL94-V0 standards. This enhances safety by reducing fire risks and ensuring the connector maintains its integrity under high temperatures or electrical faults.
