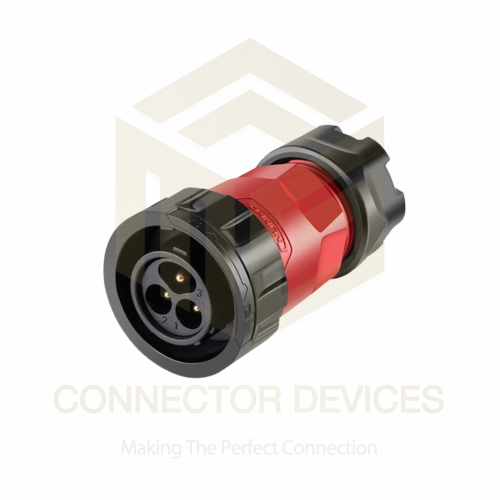

YM20 20A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal

Name: YM20 20A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 374.0 INR
Availability: InStock

374.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP68
Power Source Electric
Input 3-pin male
Power Supply Electrical
Operating Temperature -40C to +105C
Processor Speed ---
Display Type ---
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 20A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 374.0 INR/Piece

Number of Poles 3-pin
Corrosion Resistance Suitable for outdoor environments
Contact Material Copper alloy with silver plating
Sealing Method Screw lock with O-ring
Connection Method Solder terminal
Insulation Resistance >2000M at 500V DC
UV Resistance Yes
Contact Resistance 2m
Cable Diameter 6-12mm compatible
Flame Class UL94-V0
Shell Material Nylon PA66
Mechanical Life Over 500 mating cycles

YM20 20A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Product Type Waterproof Power Connector Plug
Response Time ---
Features Waterproof, dustproof, corrosion-resistant, flame-retardant, easy wiring
Components Plastic shell, solder terminals, rubber seals
Weight Approx. 68g
Rated Voltage 500V AC
Size M20
Usage Cable/socket connector for power transmission
Dimension (L*W*H) Approx. 92mm (L) x 34mm (Max Diameter)
Display Type ---
Power Source Electric
Input 3-pin male
Function Power connection for waterproof outdoor or industrial use
Processor Speed ---
Color Black
Power Supply Electrical
Operating Temperature -40C to +105C
IP Rating IP68
Supply Voltage 500V
Thermal Conductivity ---
Sensors Specification ---
Current Rating 20A
Interface Solder terminal
Capacity 20A
Application LED lighting, outdoor power equipment, machinery
Frequency 50/60Hz
Output Electrical connection
Resolution ---
Thickness ---
Charging Voltage ---

Number of Poles 3-pin
Corrosion Resistance Suitable for outdoor environments
Contact Material Copper alloy with silver plating
Sealing Method Screw lock with O-ring
Connection Method Solder terminal
Insulation Resistance >2000M at 500V DC
UV Resistance Yes
Contact Resistance 2m
Cable Diameter 6-12mm compatible
Flame Class UL94-V0
Shell Material Nylon PA66
Mechanical Life Over 500 mating cycles

YM20 20A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Durable Waterproof Design for Demanding Environments

With an IP68 rating and flame-resistant construction, the YM20 connector offers unmatched safety and resilience against water, dust, and corrosive conditions. Its UV-resistant nylon shell and secure O-ring seal make it ideal for outdoor systems requiring long-lasting reliability, from garden lights to industrial machinery installations.

Efficient Power Transmission and Easy Installation

Featuring high conductivity copper alloy contacts with silver plating, this connector ensures low energy loss and durable contact performance. The solder terminal connection and broad cable compatibility (6-12mm) allow for simplified and reliable wire termination, making it convenient for both professionals and DIY installers.

FAQ's of YM20 20A 3Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the YM20 3Pin waterproof power connector?

A: To install, strip the cable, solder the wires to the designated terminals, and ensure the O-ring is seated correctly. Insert the cable, tighten the screw lock to seal the connector, and verify the IP68 watertight rating is maintained.

Q: What applications is this connector suitable for?

A: This connector is ideal for LED lighting, outdoor power equipment, industrial machinery, and any electrical system requiring a waterproof, dustproof, and flame-retardant power connection.

Q: When should I use a connector with an IP68 rating?

A: Use an IP68-rated connector in scenarios where the connection is exposed to moisture, dust, or challenging outdoor conditions, ensuring uninterrupted and safe electrical transmission even in harsh environments.

Q: Where can the YM20 connector be installed?

A: It can be installed in outdoor, industrial, and commercial settings-including gardens, factory floors, building exteriors, and any locations where water or dust ingress protection is essential.

Q: What are the benefits of the screw lock and O-ring sealing method?

A: The screw lock and O-ring mechanism provide a reliable, vibration-resistant, and waterproof seal, which not only enhances mechanical stability but also ensures long-term protection against water and dust ingress.

Q: How often can the connector be plugged and unplugged?

A: With a mechanical life of more than 500 mating cycles, the YM20 connector is designed for frequent connections and disconnections without loss of performance.
