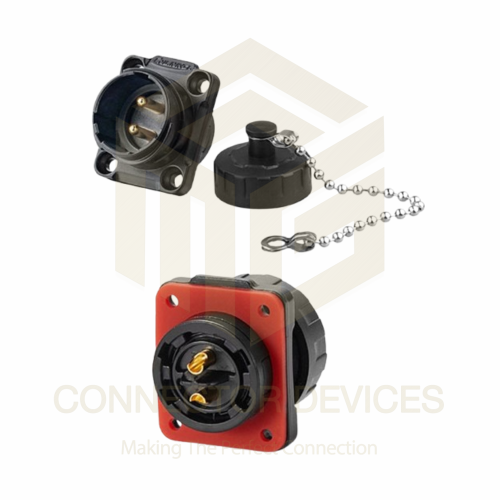

YM20 500V 20A 2Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: YM20 500V 20A 2Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 271.0 INR
Availability: InStock

271.0 INR/Piece

Get a Price/Quote

Product Details:

Interface 2 Pin Solder Type
Components Plastic Shell, Solder Terminal
Input Male Socket
IP Rating IP67
Power Supply AC/DC Universal
Features Waterproof, Dustproof, Corrosion Resistant, Easy Installation
Operating Temperature -40C to +105C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 500V 20A 2Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Price 271.0 INR/Piece
Minimum Order Quantity 100 Piece

Sealing Method Rubber Gasket
Pin Type Male
Insulation Resistance 2000 M
Terminal Type Solder
Shell Finish Matte
Contact Resistance 5 m
Mechanical Life > 2000 Mating Cycles
Contact Material Copper Alloy
Standards Compliance CE, RoHS
Mounting Style Panel Mount
Flame Retardancy UL94V-0
Insulation Material High Grade Plastic

YM20 500V 20A 2Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Function Power Connection
Size YM20
Product Type Power Connector
Application Industrial, Outdoor Equipment
Components Plastic Shell, Solder Terminal
Interface 2 Pin Solder Type
Input Male Socket
Supply Voltage 500V
Thickness Approx. 20 mm Shell
IP Rating IP67
Current Rating 20A
Color Black
Power Supply AC/DC Universal
Features Waterproof, Dustproof, Corrosion Resistant, Easy Installation
Rated Voltage 500V
Operating Temperature -40C to +105C
Weight Approx. 65g
Usage Outdoor Power Distribution
Power Source Electrical
Dimension (L*W*H) Approx. 90 x 25 x 25 mm
Frequency 50/60 Hz
Capacity 20A
Output 2 Pin Connection

Sealing Method Rubber Gasket
Pin Type Male
Insulation Resistance 2000 M
Terminal Type Solder
Shell Finish Matte
Contact Resistance 5 m
Mechanical Life > 2000 Mating Cycles
Contact Material Copper Alloy
Standards Compliance CE, RoHS
Mounting Style Panel Mount
Flame Retardancy UL94V-0
Insulation Material High Grade Plastic

YM20 500V 20A 2Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:8.2N Max
Mating cycle:1700 Times
Screw torque:42-53 (N.m)
Temperature and humidity:-4080C; 40C, 85%RH

Superior Waterproof and Dustproof Protection

The YM20 socket boasts an IP67 rating, effectively sealing out water and dust to safeguard power connections. Its high-grade plastic shell and rubber gasket ensure performance in a wide temperature range and corrosive environments, making it suitable for even the most challenging outdoor or industrial applications.

Designed for Durability and High Performance

This connector is engineered to withstand over 2000 mating cycles and offers exceptional contact and insulation resistance. With a robust mechanical structure and flame-retardant materials, the YM20 maintains reliable electrical contact and safety throughout prolonged use, even under high currents and voltages.

Quick and Secure Installation

Thanks to solder-type terminals and a convenient panel-mount style, the YM20 allows for straightforward, secure setup. The matte-finished shell not only enhances its appearance but also resists wear in demanding environments, ensuring long-lasting operation and minimal maintenance.

FAQ's of YM20 500V 20A 2Pin Male Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the YM20 2Pin Male Socket?

A: The YM20 socket is designed for panel mounting. Simply position it into the panel cut-out, use the included hardware to secure it, and solder your power cables to the terminals following standard safety guidelines.

Q: What environments is the YM20 connector suitable for?

A: With its IP67 waterproof rating, high-grade plastic shell, and wide operating temperature range (-40C to +105C), the YM20 is ideal for outdoor or industrial applications exposed to moisture, dust, or extreme temperatures.

Q: What are the benefits of using this power connector for outdoor distribution?

A: The connector offers high current and voltage capacity, corrosion resistance, and secure sealing against water and dust, ensuring safe, reliable power delivery in outdoor or harsh environments.

Q: When should I use a solder terminal type connector like the YM20?

A: Choose solder terminal connectors for environments requiring strong, vibration-resistant electrical contacts and enduring connections, particularly where reliability is critical in high-current applications.

Q: Where is the YM20 connector typically used?

A: It is widely implemented in outdoor power distribution, industrial machinery, and weather-exposed electrical setups where dependable, sealed connections are essential.

Q: What standards does the YM20 socket comply with?

A: The connector meets CE and RoHS standards, offering compliance for quality, safety, and environmental responsibility in global industrial markets.

Q: How does the flame retardancy feature benefit my application?

A: With a UL94V-0 flame retardancy rating, the YM20 offers added fire protection, minimizing risk in environments with high electrical loads or potential heat exposure.
