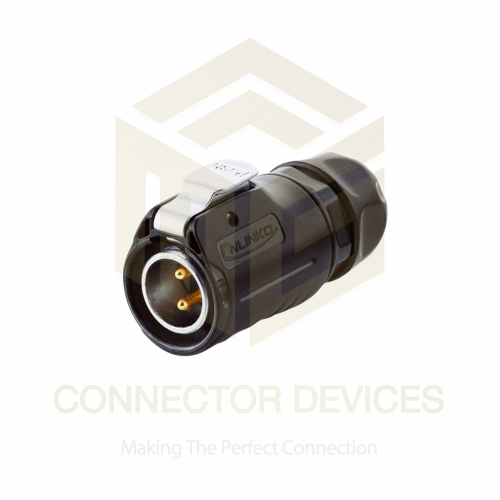

LP20 500V 20A 2Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: LP20 500V 20A 2Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 428.0 INR
Availability: InStock

428.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Input 2 Pin Male Plug
Output Solder Terminal
Power Source External Power Supply
Interface Solder Terminal
Operating Temperature -25C to +85C
Components Connector Plug, Solder Terminals, Locking Nut
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 500V 20A 2Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Price 428.0 INR/Piece
Minimum Order Quantity 100 Piece

LP20 500V 20A 2Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Features Waterproof, Corrosion Resistant, High Durability, Firm Locking Mechanism
Rated Voltage 500V
Output Solder Terminal
Current Rating 20A
Product Type Waterproof Power Connector
Color Black + Blue
Interface Solder Terminal
Usage Industrial Power Connectivity
Application Outdoor, Lighting, Equipment, Industry
Power Source External Power Supply
Dimension (L*W*H) Approx. 86mm x 32mm x 32mm
Power Supply AC/DC
Frequency 50/60Hz
Supply Voltage 500V Max
Operating Temperature -25C to +85C
IP Rating IP67
Function Power Connection
Input 2 Pin Male Plug
Components Connector Plug, Solder Terminals, Locking Nut
Size Standard LP20 Size
Weight Approx. 80g
Thickness Custom as per model
Capacity 20A

Contact Resistance <2.5m
Mechanical Life >500 Mating Cycles
Number of Pins 2
Shell Material Plastic + Metal
Locking System Threaded Coupling
Mounting Type Cable Mount
Sealing Gasket Silicone Rubber
Flame Retardant UL94-V0
Cable Diameter Range 6-12mm
Contact Material Copper Alloy with Silver Plating
Insulation Resistance >1000M @ 500VDC
Environmental Protection UV Resistant

LP20 500V 20A 2Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Quickly bayonet connect
Cable Specification:1mm2 1.5mm2 /1816AWG
Diameter Range:8mm12mm
Operating Voltage:500V
Withstand Voltage(AC.V)1min:2000V
Durability:>500 mating & unmating cycles
Temperature Rating:-40C80C

Superior Waterproof Protection

Engineered to IP67 standards, this connector withstands water immersion and dust ingress, ideal for outdoor and industrial applications. The silicone rubber sealing gasket along with a threaded locking system ensures a secure, watertight connection, keeping your equipment safe in all weather conditions and environments.

Durability and High Performance

Built to last over 500 mating cycles, the LP20 connector features a robust shell made from plastic and metal, UV resistance, and silver-plated copper contacts for optimal conductivity. The flame-retardant rating and firm locking mechanism further enhance its safety and longevity in demanding industrial settings.

Easy and Versatile Installation

Supporting cable diameters from 6mm to 12mm, the connector's cable mount and solder terminals make it versatile for various wiring setups. Its standard LP20 size and color-coded black and blue body simplify identification, while the compact design (86mm x 32mm x 32mm) suits limited-space installations.

FAQ's of LP20 500V 20A 2Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How is the LP20 500V 2Pin Male Plug installed for outdoor use?

A: The connector features a cable mount design with solder terminals. Simply solder your wires to the terminals, secure the cable using the silicone gasket, and tighten the threaded coupling for a waterproof, dustproof seal suitable for outdoor and harsh environments.

Q: What benefits does the IP67 waterproof rating provide?

A: An IP67 rating ensures the connector is both dust-tight and protected against temporary water immersion. This makes it ideal for outdoor lighting, industrial equipment, and other applications exposed to challenging environmental conditions.

Q: Where can the LP20 2Pin Male Plug be effectively used?

A: This connector is suitable for industrial power connectivity, outdoor lighting, machinery, and equipment requiring high durability and reliable power transfer. Its waterproof and UV-resistant design makes it perfect for installations in exposed or harsh environments.

Q: What is the advantage of the threaded locking mechanism?

A: The threaded locking system provides a firm, vibration-resistant connection. This mechanism prevents accidental disconnects and maintains a stable connection even in areas subject to movement or vibration.

Q: What is the operating temperature range for this connector?

A: The LP20 plug operates efficiently in temperatures ranging from -25C to +85C, making it reliable for use in both extreme cold and heat.

Q: How often can I connect and disconnect the plug before performance is affected?

A: With a mechanical life rating of over 500 mating cycles, the connector is designed for repeated use without significant wear, ensuring long-term reliability.

Q: What safety features are incorporated into the LP20 plug?

A: The connector's flame-retardant UL94-V0 material, UV resistance, and high insulation resistance (>1000M @ 500VDC) all contribute to safe operation in industrial and high-risk environments.
