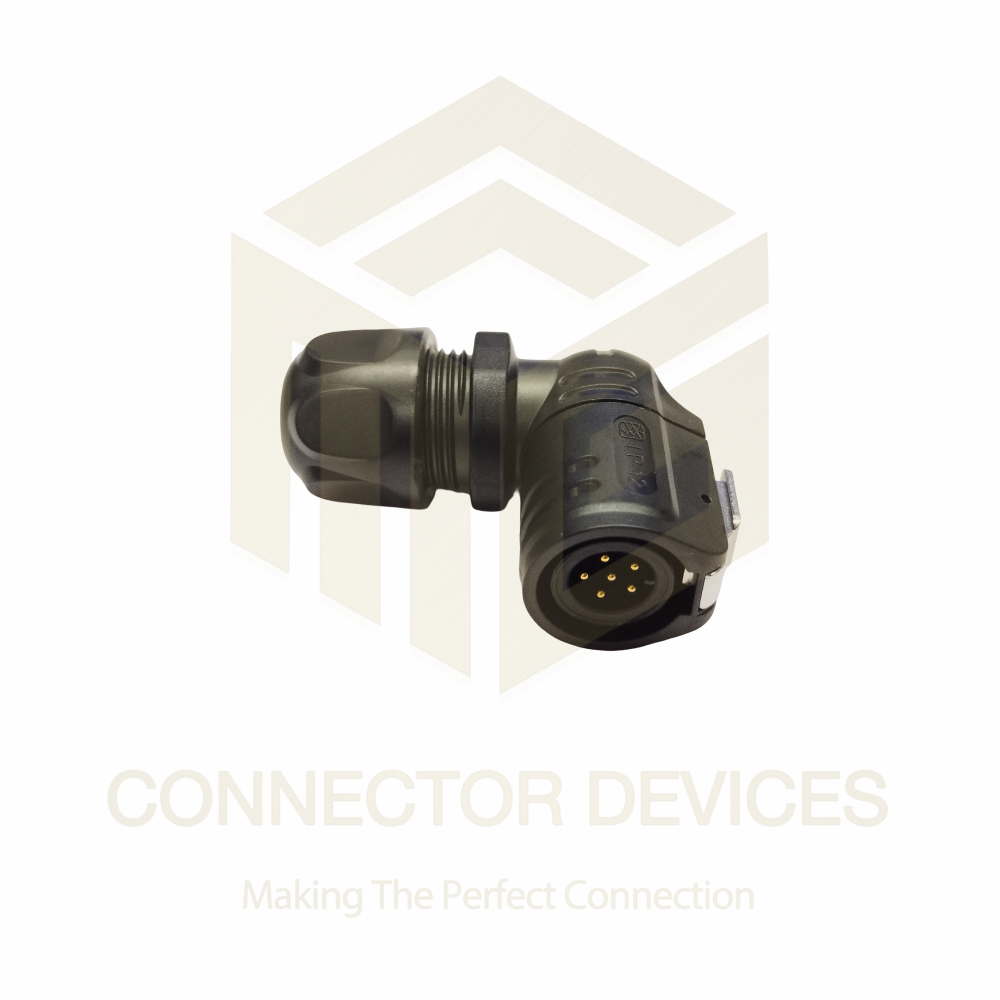

LP-12 6Pin 5A 90deg Industrial Circular Plastic Waterproof Power Connector Male/Female

306 INR/Piece

Get a Price/Quote

Product Details:

Interface Solder or screw terminal
Charging Voltage Up to 250V
Output 6-pin female connector
Power Source External supply
Input 6-pin male connector
Power Supply External/Panel Mount
Features 90 right angle, quick connect/disconnect, waterproof, dustproof, corrosion resistant, flame retardant plastic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP-12 6Pin 5A 90deg Industrial Circular Plastic Waterproof Power Connector Male/Female Price And Quantity

Minimum Order Quantity 100 Piece
Price 306 INR/Piece

Shell Material High-strength plastic
Locking Mechanism Threaded coupling
Flammability Rating UL94 V-0
Protection Level Waterproof, dustproof
Connector Type 6-pin circular industrial connector
Angle 90 degree (right angle)
Sealing Silicone gasket
Mating Cycle > 500 cycles
Cable Diameter Supported 4mm to 6.5mm
Mounting Style Panel mount
Vibration Resistance Tested to IEC 60512-6-4
Contact Material Copper alloy, gold plated
Insulation Resistance > 1000 M at 500V DC
Standards IEC compliant
Contact Resistance < 5 m
Number of Pins 6

LP-12 6Pin 5A 90deg Industrial Circular Plastic Waterproof Power Connector Male/Female Product Specifications

Color Black
Features 90 right angle, quick connect/disconnect, waterproof, dustproof, corrosion resistant, flame retardant plastic
Application Industrial power and signal connection
Power Supply External/Panel Mount
Rated Voltage 250V AC/DC
Current Rating 5A max per contact
Weight Approx. 18g per connector
Dimension (L*W*H) Approx. 55mm x 20mm x 20mm
Product Type Circular plastic waterproof connector
Components Male plug, female socket, panel mounting accessories
Operating Temperature -25C to +85C
Capacity 5A per pin
Usage Industrial equipment, automation, LED lighting, electric vehicles
IP Rating IP67 waterproof
Interface Solder or screw terminal
Function Power and signal connection
Input 6-pin male connector
Frequency DC or AC power/signal
Supply Voltage Up to 250V
Size LP-12 series
Charging Voltage Up to 250V
Output 6-pin female connector
Power Source External supply

Shell Material High-strength plastic
Locking Mechanism Threaded coupling
Flammability Rating UL94 V-0
Protection Level Waterproof, dustproof
Connector Type 6-pin circular industrial connector
Angle 90 degree (right angle)
Sealing Silicone gasket
Mating Cycle > 500 cycles
Cable Diameter Supported 4mm to 6.5mm
Mounting Style Panel mount
Vibration Resistance Tested to IEC 60512-6-4
Contact Material Copper alloy, gold plated
Insulation Resistance > 1000 M at 500V DC
Standards IEC compliant
Contact Resistance < 5 m
Number of Pins 6

LP-12 6Pin 5A 90deg Industrial Circular Plastic Waterproof Power Connector Male/Female Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Protection Level:IP67
Operating Voltage:125V
Number of Pins:6
Rated Current:5A
Withstanding Voltage:1500V
Contact Resistance:< 5.0mOhm
Mating Cycle:1700 times
Contact Dimension:Phi 1.0x2
Temperature and Humidity:-40+80C; 40C, 85%RH

Versatile and Robust Design

The LP-12 series connector is constructed with high-strength flame-retardant plastic, ensuring durability and safety even in harsh industrial environments. Its 6-pin configuration and 90-degree angle make it suitable for tight spaces, while panel mounting accessories enable secure installation on equipment housings or control panels.

Superior Electrical Performance

Engineered with gold-plated copper alloy contacts, the connector delivers low contact resistance (<5 m) and excellent conductivity. It supports up to 5A per pin and 250V AC/DC, making it ideal for both power and high-integrity signal applications. The IP67 rating guarantees dependable performance in dusty or wet conditions.

Reliable Protection and Safety

A robust silicone gasket and threaded coupling mechanism ensure a watertight and dustproof seal, vital for protecting connections in industrial, automation, and outdoor applications. The flame-retardant plastic (UL94 V-0) enhances fire resistance, and the connector meets IEC and vibration resistance standards for added reliability.

FAQ's of LP-12 6Pin 5A 90deg Industrial Circular Plastic Waterproof Power Connector Male/Female:

Q: How is the LP-12 6Pin 5A 90deg connector installed on equipment?

A: The LP-12 connector is panel-mounted using included mounting accessories. The female socket is secured to the panel, while the male plug attaches via a threaded coupling. This design ensures a stable and waterproof connection, suitable for both power and signal transmission in industrial setups.

Q: What type of applications is this connector best suited for?

A: This connector is ideal for industrial equipment, automation systems, LED lighting, and electric vehicles. Its robust waterproof and dustproof design, along with high electrical performance, makes it perfect for both indoor and outdoor usage where reliable power and signal connections are required.

Q: When should I use a 90-degree connector instead of a straight one?

A: A 90-degree (right angle) connector is especially useful when space is limited or cables need to be routed closely along the surface of a panel or device. It minimizes cable bend radius and strain, enhancing installation flexibility in compact industrial environments.

Q: Where can this connector be used considering its waterproof rating?

A: With an IP67 rating, the LP-12 connector is fully protected against dust ingress and can withstand temporary immersion in water. This makes it suitable for outdoor installations, wet environments, or locations where equipment may be exposed to moisture, such as factory floors or electric vehicle charging points.

Q: What process is involved in connecting cables to this connector?

A: You can use either a solder or screw terminal interface to securely attach cables to the connector contacts. After preparing the cables and making proper connections, the connector is assembled with its silicone gasket and locked via threading to ensure a watertight seal.

Q: How does this connector benefit industrial applications?

A: Its gold-plated contacts provide high conductivity and longevity, while the tough, flame-retardant housing and waterproof seal ensure reliability in harsh conditions. Additionally, the connector supports frequent mating cycles (>500), offering long-term durability and reduced maintenance in demanding installations.

Q: What is the range of cable diameters supported by this connector?

A: The connector supports cables with diameters ranging from 4mm to 6.5mm, providing versatility for various cable sizes commonly used in industrial power and signal distribution.
