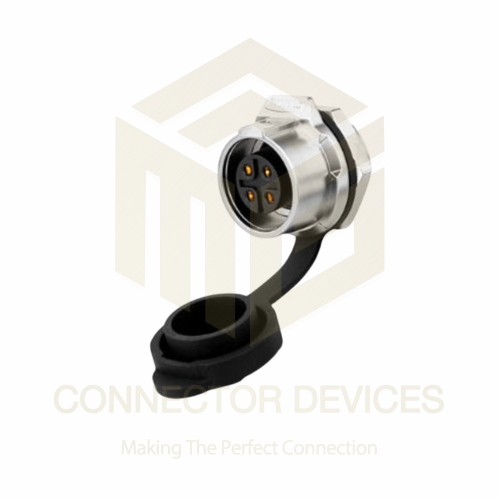

LP16 10A 4Pin Female Socket IP67 Waterproof Power Connector

451.0 INR/Piece

Get a Price/Quote

Product Details:

Components Plastic housing, copper alloy contacts, rubber sealing ring
Input Up to 4-pin power input
Output Up to 4-pin power output
Features Waterproof, dustproof, vibration resistant, easy installation, robust locking mechanism
Operating Temperature -25C to +85C
IP Rating IP67
Thermal Conductivity Not specified (plastic/metal mixed housing)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP16 10A 4Pin Female Socket IP67 Waterproof Power Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 451.0 INR/Piece

Flange Hole Diameter M16 panel cutout size
Flame Retardant Level UL94-V0
Sealing Ring Material Silicone rubber
Connector Gender Female
Application Environment Outdoor/Industrial, suitable for harsh and wet conditions
Insulation Material Nylon PA66
Locking System Threaded coupling with anti-vibration design
Mounting Type Panel mount (flange with screw holes)
Cable OD Range 5mm to 8mm (compatible cable gland size)
Contact Material Copper alloy with gold plating
Insulation Resistance >=2000 M at 500V DC
Number of Pins 4
Withstand Voltage 1500V AC/minute
Standards/Certification CE, RoHS compliant
Protection Level IP67 (Dust-tight and water immersion)
Housing Material High quality plastic (thermoplastic resin)
Contact Resistance 5 m
Mechanical Life >=500 mating cycles
Storage Temperature -25C to +85C

LP16 10A 4Pin Female Socket IP67 Waterproof Power Connector Product Specifications

Function Power connection, female socket for robust power transmission in outdoor and wet environments
Product Type Female Socket Power Connector
Thickness Standard housing design, approx. 20mm flange thickness
Thermal Conductivity Not specified (plastic/metal mixed housing)
Color Black (housing body), Blue (locking nut)
Application LED lighting, industrial power, outdoor equipment, automation
Power Source External (power grid or supply line)
Size LP16 Series standard, approx. 20mm panel cutout diameter
Current Rating 10A maximum
Usage Waterproof power connector for equipment, panel mount applications
Capacity Up to 10A current handling
Power Supply Mains / External
Interface 4-pin round power connector socket, panel mount type
Weight Approx. 18g
Frequency 50/60Hz AC
Components Plastic housing, copper alloy contacts, rubber sealing ring
Rated Voltage 250V AC
Input Up to 4-pin power input
Output Up to 4-pin power output
Operating Temperature -25C to +85C
Features Waterproof, dustproof, vibration resistant, easy installation, robust locking mechanism
Supply Voltage Up to 250V AC
Dimension (L*W*H) Approx. 28mm (Leads not included) x 23mm (Flange) x 23mm
IP Rating IP67

Flange Hole Diameter M16 panel cutout size
Flame Retardant Level UL94-V0
Sealing Ring Material Silicone rubber
Connector Gender Female
Application Environment Outdoor/Industrial, suitable for harsh and wet conditions
Insulation Material Nylon PA66
Locking System Threaded coupling with anti-vibration design
Mounting Type Panel mount (flange with screw holes)
Cable OD Range 5mm to 8mm (compatible cable gland size)
Contact Material Copper alloy with gold plating
Insulation Resistance >=2000 M at 500V DC
Number of Pins 4
Withstand Voltage 1500V AC/minute
Standards/Certification CE, RoHS compliant
Protection Level IP67 (Dust-tight and water immersion)
Housing Material High quality plastic (thermoplastic resin)
Contact Resistance 5 m
Mechanical Life >=500 mating cycles
Storage Temperature -25C to +85C

LP16 10A 4Pin Female Socket IP67 Waterproof Power Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:400V
Withstanding Voltage:2500V
Temperature Rise:10A 30C ,12A 40C ,15A 50C
Insertion and Extraction Force:1.2N Max
Mating Cycle:> 1700 times
Working Temperature:-40i80C
Connection Mode:Quick plug connection

Reliable Waterproof Performance

With an IP67 protection rating, the LP16 4Pin Female Socket is engineered to provide dust-tight and watertight sealing, making it optimal for outdoor and industrial environments. The silicone rubber sealing ring and thermoplastic housing work together to prevent moisture ingress, ensuring continuous and secure power transmission even when exposed to harsh weather or frequent water spray.

Designed for Secure Panel Mounting

This connector features a flange design with screw holes for stable panel mounting and a threaded coupling system with an integrated anti-vibration lock. Installation is both straightforward and resilient, minimizing risks of accidental disengagement or movement, making it perfect for applications where reliability is critical, such as automated machinery and outdoor equipment.

High-Quality Components for Longevity

Constructed with copper alloy contacts, gold plating, and flame-retardant nylon PA66 insulation, this female socket offers excellent wear resistance and low electrical contact resistance. Certified to CE and RoHS standards, and flame-retardant to UL94-V0, the connector delivers outstanding mechanical and electrical durability with more than 500 mating cycles.

FAQ's of LP16 10A 4Pin Female Socket IP67 Waterproof Power Connector:

Q: How do I install the LP16 10A 4Pin Female Socket on a panel?

A: Simply cut an M16 diameter hole in your panel, place the socket flange against the surface, and secure it using screws through the flange holes. Connect the wires to the copper alloy contacts and fasten the gland to accommodate cable diameters from 5mm to 8mm.

Q: What environments or conditions is this power connector suitable for?

A: The LP16 socket is designed for harsh and wet conditions, such as outdoor power systems, industrial automation, LED lighting, and other demanding applications that require protection from dust, vibration, and water ingress.

Q: What are the benefits of the IP67 waterproof and dustproof rating?

A: IP67 ensures the connector is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, guaranteeing reliable performance in rain, wash-down areas, or accidental splashes.

Q: What power handling capacity does this connector support?

A: This panel mount socket supports up to 10A current and 250V AC, making it suitable for a variety of power supply and heavy-duty applications requiring secure, stable connections.

Q: What materials are used for the contacts and insulation of the socket?

A: The contacts are made from copper alloy with gold plating for improved conductivity and corrosion resistance, while the insulation material is nylon PA66, known for its high durability and flame retardancy.

Q: Where can this female socket be typically used?

A: You can use this socket in outdoor equipment, automation systems, LED installations, and industrial machinery where secure, waterproof, and vibration-resistant power connections are essential.
