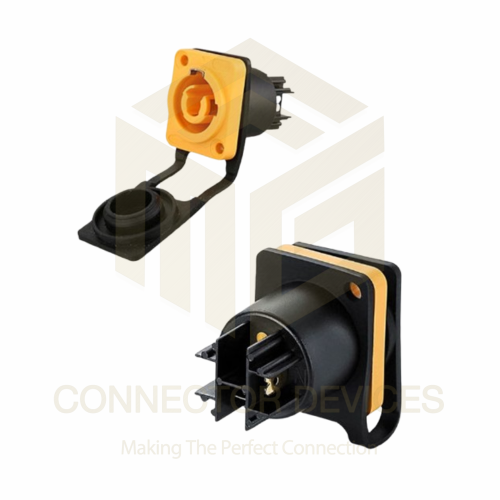

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-Out Connector

Name: YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-Out Connector
Brand: CONNECTOR DEVICES
Price: 200.0 INR
Availability: InStock

200.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply AC
Power Source Mains power connection
Output Power-out socket
Interface Panel mount PowerCON
Usage Outdoor/industrial power connection
Input 3-pin (L, N, PE)
Components Connector housing, 3 pins, waterproof sealing gasket
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-Out Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 200.0 INR/Piece

Contact Resistance 2.5m
Terminal Type Screw termination
Sealing Protection Silicone rubber gasket
Environmental Protection UV resistant, corrosion proof
Flammability Rating UL94-V0
Locking Mechanism Twist lock
Standards Compliance CE, RoHS
Cable Diameter Compatibility Suitable for 6-12mm diameter cables
Mounting Type Panel mount via flange
Body Material High-strength PA66 thermoplastic
Insulation Resistance >2000 M (500V DC)
Mating Cycles 5000
Contact Material Copper alloy, silver plated
Dielectric Strength 2.5kV AC, 1min

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-Out Connector Product Specifications

Rated Voltage 500V AC
Components Connector housing, 3 pins, waterproof sealing gasket
Input 3-pin (L, N, PE)
Frequency 50/60Hz
Product Type PowerCON Socket Connector
Thickness Standard panel mounting thickness up to 3mm
Features Waterproof, dustproof, quick-lock, flame retardant
IP Rating IP67
Capacity 20A current rating
Usage Outdoor/industrial power connection
Function Power-out waterproof socket connector
Dimension (L*W*H) Approx. 40 x 40 x 55 mm
Current Rating 20A
Size Standard PowerCON chassis format
Application Stage lighting, power distribution, industrial equipment, outdoor event power
Weight Approx. 95g
Power Supply AC
Power Source Mains power connection
Supply Voltage 500V
Color Blue & Grey
Operating Temperature -30C to +80C
Output Power-out socket
Interface Panel mount PowerCON

Contact Resistance 2.5m
Terminal Type Screw termination
Sealing Protection Silicone rubber gasket
Environmental Protection UV resistant, corrosion proof
Flammability Rating UL94-V0
Locking Mechanism Twist lock
Standards Compliance CE, RoHS
Cable Diameter Compatibility Suitable for 6-12mm diameter cables
Mounting Type Panel mount via flange
Body Material High-strength PA66 thermoplastic
Insulation Resistance >2000 M (500V DC)
Mating Cycles 5000
Contact Material Copper alloy, silver plated
Dielectric Strength 2.5kV AC, 1min

YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-Out Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Fast Locking
Cable Specification:2.5mm2 4mm2 /1412AWG
Diameter Range:8mm 12mm
Operating Voltage:500V
Withstand Voltage(AC.V)1min:2500V
Durability:> 500 mating & unmating cycles
Temperature Rating:-40C80C

Superior Waterproof and Dustproof Protection

With its IP67 rating and high-strength PA66 thermoplastic housing, the YF24 PowerCON connector provides excellent resistance to dust and water, ensuring uninterrupted power connections even in adverse outdoor conditions. The silicone rubber gasket further enhances its sealing capabilities, making it a preferred choice for demanding applications in event setups and industrial sites.

Robust Design for Durability and Safety

Built with copper alloy, silver-plated contacts, and a flame-retardant body rated UL94-V0, this connector offers both high electrical performance and superior safety. The twist lock mechanism guarantees a secure connection, while screw terminals allow quick and reliable wire termination, supporting up to 5000 mating cycles for long service life.

Flexible Application and Easy Installation

Designed for panel mounting via flange, the YF24 is compatible with standard PowerCON chassis formats and accepts cables from 6mm to 12mm in diameter. Its compact size and panel compatibility make it the perfect fit for stage lighting, industrial machinery, outdoor events, and power distribution systems, granting users flexibility and convenience.

FAQ's of YF24 500V 20A 3Pin PowerCON IP67 Waterproof Socket Power-Out Connector:

Q: How is the YF24 PowerCON socket installed for panel mounting?

A: The YF24 socket is designed for panel mounting via its flange. Simply cut a panel opening that matches its dimension (approx. 40 x 40 mm), secure the connector with mounting screws through the flange holes, and ensure a proper seal using the silicone rubber gasket, supporting panels up to 3mm thick.

Q: What types of cables are compatible with the YF24 PowerCON connector?

A: This connector supports cables with diameters ranging from 6 to 12mm. It offers screw terminal connections for easy and secure cable attachment, suiting various power supply cable types used in outdoor and industrial environments.

Q: Where can the YF24 3Pin PowerCON socket be used?

A: The YF24 socket is ideal for outdoor and industrial applications requiring reliable and waterproof power connections, such as stage lighting, power distribution units, event setups, and industrial machinery, thanks to its IP67 and UV/corrosion resistant design.

Q: What are the main benefits of using this connector for outdoor applications?

A: Key benefits include the robust waterproof (IP67) and dustproof construction, high current capacity (20A at 500V AC), secure twist-lock operation, flame retardancy (UL94-V0), and UV/corrosion resistance, ensuring safe, reliable connections in any weather.

Q: How many mating cycles can the YF24 connector handle?

A: This connector is rated for up to 5000 mating cycles, ensuring long-term durability and consistent performance even in environments where frequent connection and disconnection are necessary.

Q: What standards does the YF24 meet for safety and reliability?

A: The YF24 is compliant with CE and RoHS, features a flame-retardant (UL94-V0) body, offers >2000 M insulation resistance at 500V DC, and withstands dielectric strength up to 2.5kV AC for 1 minute, certifying its quality and safety for professional use.
