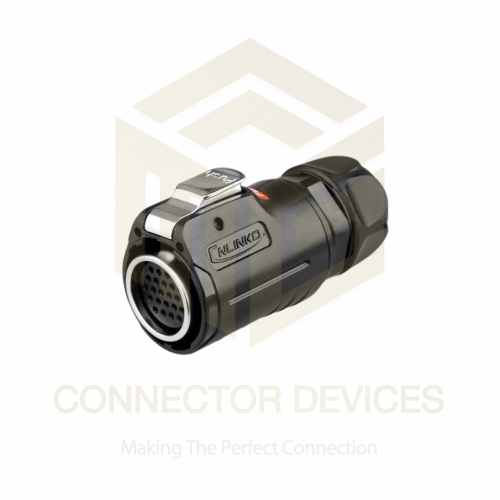

LP24 150V 5A 24Pin Female Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal

846.0 INR/Piece

Get a Price/Quote

Product Details:

Interface 24 Pin female plug, solder terminal
IP Rating IP67
Components Plastic shell, contacts, sealing ring
Power Supply Electrical
Usage Power and data transmission connector
Features Waterproof, dustproof, robust plastic shell, secure connection, easy installation
Power Source External electricity
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP24 150V 5A 24Pin Female Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 846.0 INR/Piece

Flame Retardant Rating UL94 V-0
Cable OD Range 6mm to 12mm
Shell Material High-quality plastic (PA66)
Mating Cycle Durability >1000 cycles
Number of Contacts 24 pins
Contact Material Copper alloy with gold plating
Sealing Method O-ring and thread locking
Mounting Type Panel mount or cable inline
Salt Spray Resistance >48 hours
Insulation Resistance >500M at 500V DC
Vibration Resistance Compliant with IEC 60512-6-4
Contact Resistance 0.005

LP24 150V 5A 24Pin Female Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Dimension (L*W*H) 38mm (D) x 80mm (L)
Components Plastic shell, contacts, sealing ring
IP Rating IP67
Frequency 50/60 Hz
Application Industrial equipment, automation, outdoor devices, LED lighting
Interface 24 Pin female plug, solder terminal
Color Black
Current Rating 5A
Size 24 Pin
Input Solder terminal input
Operating Temperature -40C to +80C
Capacity 5A per pin
Thickness Standard shell thickness
Supply Voltage 150V max
Power Source External electricity
Product Type Waterproof power connector
Output Solder terminal output
Rated Voltage 150V
Function Electrical power and signal connection
Power Supply Electrical
Weight Approx. 50g
Features Waterproof, dustproof, robust plastic shell, secure connection, easy installation
Usage Power and data transmission connector

Flame Retardant Rating UL94 V-0
Cable OD Range 6mm to 12mm
Shell Material High-quality plastic (PA66)
Mating Cycle Durability >1000 cycles
Number of Contacts 24 pins
Contact Material Copper alloy with gold plating
Sealing Method O-ring and thread locking
Mounting Type Panel mount or cable inline
Salt Spray Resistance >48 hours
Insulation Resistance >500M at 500V DC
Vibration Resistance Compliant with IEC 60512-6-4
Contact Resistance 0.005

LP24 150V 5A 24Pin Female Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:150V
Insertion and extraction force:22N Max
Withstanding voltage:2500V
Contact diameter:Phi 1.0x24
Temperature and humidity:-40+80C; 40C, 85%RH
Mating cycle:1700 times
Screw torque:42-53 (Nm)

Versatile and Waterproof Design

With its IP67 rating, the LP24 plug is engineered for use in harsh environments where water and dust resistance are essential. The O-ring and thread locking ensure a tightly sealed connection, making it suitable for both indoor and outdoor applications, including industrial, automation, and LED lighting systems.

Secure Electrical and Signal Transmission

Boasting 24 gold-plated copper alloy contacts, this connector offers low contact resistance (0.005) and high insulation (>500M at 500V DC). It is designed for dependable electrical power and data transmission, supporting a voltage of up to 150V and a current of 5A per pin, accommodating diverse connection needs.

Durability, Safety, and Easy Installation

Manufactured using UL94 V-0 flame-retardant PA66 plastic, the LP24 connector delivers reliable safety and durability. It resists vibration (IEC 60512-6-4 compliant) and salt spray (>48h), supports over 1,000 mating cycles, and allows straightforward solder terminal connections. Its panel or cable mounting options enable flexible usage.

FAQ's of LP24 150V 5A 24Pin Female Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How does the LP24 24Pin Female Plug ensure waterproof and dustproof performance?

A: The connector features an IP67 rating, achieved through a secure O-ring and thread locking design. This safeguards against dust and water ingress, making it highly reliable for outdoor and industrial environments.

Q: What are the primary usage scenarios for this power connector?

A: It's ideal for industrial equipment, automation systems, outdoor devices, and LED lighting installations, where robust power and data transmission are required in challenging conditions.

Q: When should I choose the LP24 connector over other connectors?

A: Choose the LP24 when your application demands multiple connections (24 pins), high durability, reliable waterproof sealing, and strong vibration resistance. It's particularly suited for high-density electrical or signal connections in harsh environments.

Q: Where can this connector be mounted?

A: It is designed for both panel mount and cable inline installations, offering flexibility in various equipment or cable routing systems.

Q: What benefits does the plastic (PA66) shell provide?

A: PA66 offers excellent flame retardancy (UL94 V-0 rating), mechanical strength, and resistance to chemicals and environmental stress, making the connector durable and safe for demanding applications.

Q: How is electrical connection made with this product?

A: Electrical connection is established via solder terminals, ensuring a secure and stable link for both power and data transmission in your devices.
