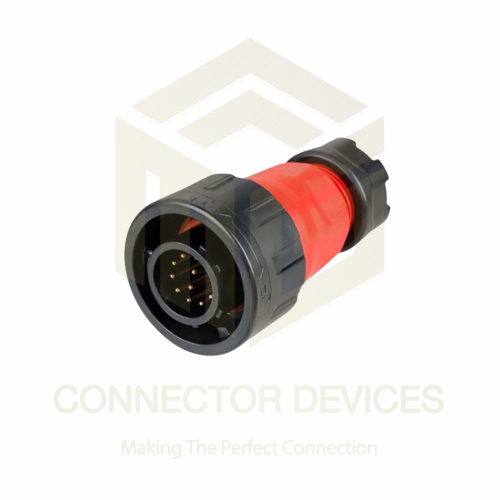

YM24 10A 12Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: YM24 10A 12Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 798.0 INR
Availability: InStock

798.0 INR/Piece

Get a Price/Quote

Product Details:

Interface 12 Pin Male Plug Solder Type
Power Supply AC
Components Connector Shell, 12 Solder Pins, Cable Clamp
Usage Industrial, Outdoor Power Distribution
Operating Temperature -40C to +80C
Output Solder Terminal
Power Source Cable Connection
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM24 10A 12Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 798.0 INR/Piece

YM24 10A 12Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Size YM24
Power Source Cable Connection
Output Solder Terminal
Thickness Standard
Input Male Plug
IP Rating IP67
Features Waterproof, Dustproof, Corrosion-resistant, Easy Soldering
Application Automation Equipment, LED Lighting, Outdoor Electrical Equipment
Current Rating 10A
Dimension (L*W*H) Approx. 90mm (L) x 38mm (Dia)
Rated Voltage 250V AC
Operating Temperature -40C to +80C
Capacity 10A
Product Type Waterproof Power Connector
Weight Approx. 100g
Power Supply AC
Supply Voltage 250V Max
Interface 12 Pin Male Plug Solder Type
Function Power Connection
Color Black
Usage Industrial, Outdoor Power Distribution
Frequency 50/60Hz
Components Connector Shell, 12 Solder Pins, Cable Clamp

Storage Temperature -40C to +85C
Contact Resistance 5m
Environmental Protection UV Resistant
Contact Material Copper Alloy, Gold-plated
Material High Grade Plastic Shell
Cable Diameter Range 8-12mm
Wire Gauge Compatibility 2.5mm2 Max
Mating Cycle >500 Times
Flame Retardant Grade UL94V-0
Locking Mechanism Threaded Coupling Ring
Insulation Resistance >2000M (500V DC)
Mounting Type Inline / Cable Mount

YM24 10A 12Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:latching lock
Contact diameter:phi 3.0x3
Operating voltage(AC.V.rms):500V
Withstand voltage(AC.V)1min:2500V
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:1700 times

Superior Waterproof Performance

With an IP67 rating, the YM24 12Pin Male Plug ensures protection against dust and immersion in water, making it suitable for outdoor installations or challenging industrial conditions. Its carefully engineered threaded coupling ring and high-grade plastic shell provide a secure and durable seal, enhancing long-term reliability and safety in various environments.

High Durability and Flame Retardancy

Rated UL94V-0 for flame retardancy and featuring gold-plated copper alloy contacts, this power connector is designed for longevity with more than 500 mating cycles. Its robust construction prevents corrosion, withstands high mechanical stress, and offers excellent insulation resistance, ensuring dependable operation for automation equipment, LED lighting, and outdoor power systems.

FAQ's of YM24 10A 12Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the YM24 10A 12Pin Male Plug for my outdoor power distribution system?

A: Begin by preparing your cable (8-12mm diameter, up to 2.5mm2 wire gauge), then insert the wires into the solder terminals. Securely solder the connections, assemble the 12 solder pins into the connector shell, and use the threaded coupling ring to lock the components. The robust clamp ensures stable, waterproof attachment.

Q: What advantages does the IP67 rating offer for outdoor or industrial installations?

A: The IP67 rating means the connector is completely dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. This makes it ideal for outdoor and harsh industrial settings, providing superior protection from environmental factors such as rain, dust, and humidity.

Q: When should I consider using this 12Pin male plug in my application?

A: Choose the YM24 10A 12Pin connector when you need secure, multi-pin power connections in environments where water, dust, and UV resistance are crucial. It is especially suited for applications in automation equipment, LED lighting systems, or any outdoor electrical installation requiring reliable power delivery.

Q: Where is the YM24 connector most commonly used?

A: It is widely used in industrial setups, outdoor electrical equipment, power distribution boxes, LED lighting projects, and automation machinery in various sectors across India and globally. Its rugged design addresses the demands of external and harsh environments.

Q: What is the process of soldering wires to the YM24 plug's terminals?

A: Strip the wire ends to the required length for your application, insert each into its corresponding solder pin, and securely solder. Ensure you avoid cold joints, then check the insulation resistance (>2000M at 500V DC) for proper installation before assembling the plug.

Q: How does the threaded coupling ring enhance benefit and ease of use?

A: The threaded coupling ring allows for quick, secure, and tool-free connection and disconnection of the plug, maintaining IP67 sealing and providing stable, vibration-resistant assembly even in mobile and high-vibration environments.

Q: What are the main benefits of using this connector in my electrical systems?

A: This connector provides efficient and durable power connections, excellent resistance to water, dust, UV, and flame (UL94V-0), high mechanical endurance, easy soldering installation, and reliable performance in a wide temperature range, ensuring long-lasting use in critical industrial or outdoor applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number
