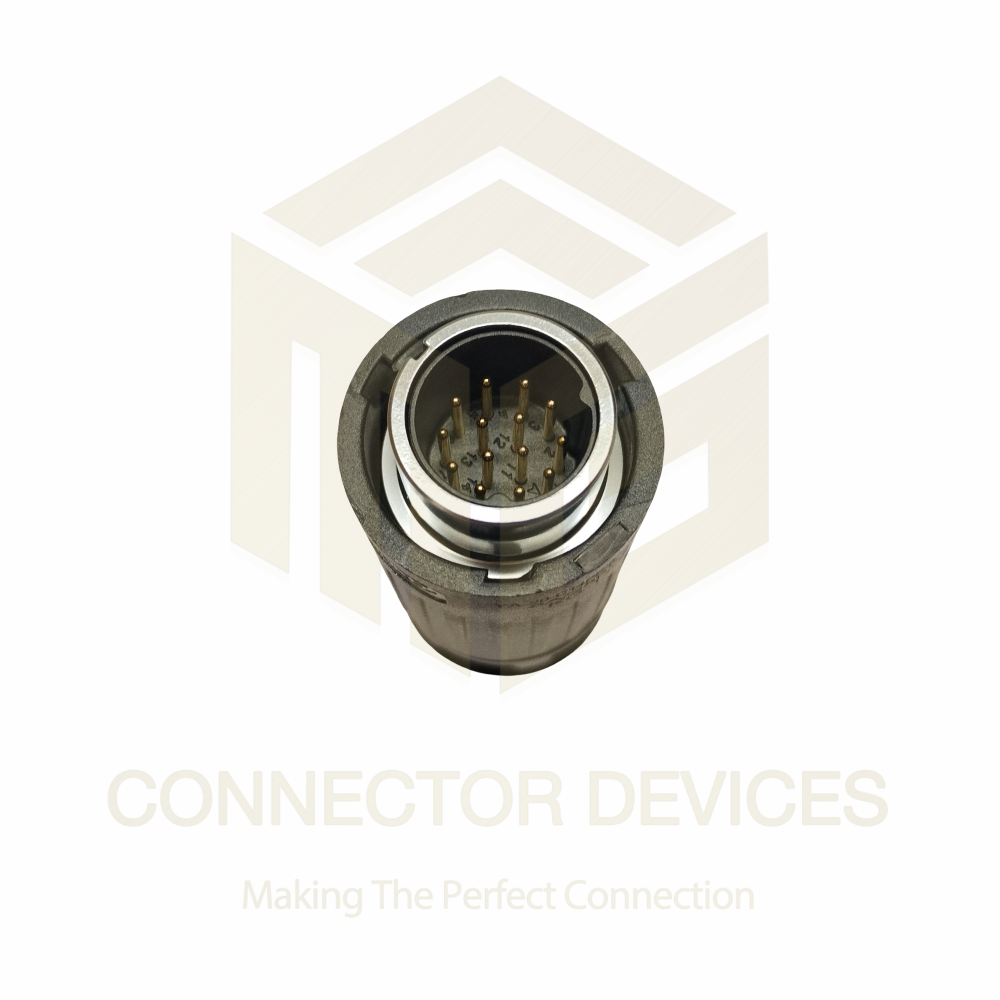

YA20 250V 5A 14Pin Male Plug IP67 Waterproof Power Connector Plastic + Metal Shell Solder Terminal

1050 INR/Piece

Get a Price/Quote

Product Details:

Usage Signal and power connections in outdoor and industrial equipment
Operating Temperature -40C to +85C
Components Plastic & Metal Shell, Solder terminals
Interface 14-pin solder terminal male plug
Power Supply Electrical
Features Waterproof, robust construction, secure locking, corrosion-resistant
Power Source External electrical
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YA20 250V 5A 14Pin Male Plug IP67 Waterproof Power Connector Plastic + Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 1050 INR/Piece

Standards Compliance CE, RoHS
Insulation Resistance >2000 M at 500V DC
Connection Type Solder terminal
Flame Retardancy UL94-V0
Wire Gauge Support 24-16 AWG
Shell Material Plastic with metal reinforcement
Contact Resistance 5 m
Mating Cycle Durability >500 cycles
Contact Material Copper alloy with nickel-plated finish
Insulation Material High-grade engineering plastic
Locking Mechanism Threaded coupling
Mounting Style Inline cable mount
Sealing Method Silicone rubber gasket

YA20 250V 5A 14Pin Male Plug IP67 Waterproof Power Connector Plastic + Metal Shell Solder Terminal Product Specifications

Size YA20 Series
Input Solder terminal input
IP Rating IP67
Power Source External electrical
Output 14-pin male output
Color Black & Silver
Features Waterproof, robust construction, secure locking, corrosion-resistant
Capacity 5A per pin, 14 pins
Current Rating 5A per pin
Power Supply Electrical
Function Waterproof multi-pin electrical male plug connector for power transmission
Dimension (L*W*H) Approx. 86mm (L) x 28mm (D)
Interface 14-pin solder terminal male plug
Thickness Standard industrial thickness; varies by shell
Components Plastic & Metal Shell, Solder terminals
Product Type Power Connector Plug
Frequency 50/60Hz
Operating Temperature -40C to +85C
Application Automation, machinery, industrial equipment, outdoor electrical connections
Weight Approx. 100g
Supply Voltage 250V max
Rated Voltage 250V AC
Usage Signal and power connections in outdoor and industrial equipment

Standards Compliance CE, RoHS
Insulation Resistance >2000 M at 500V DC
Connection Type Solder terminal
Flame Retardancy UL94-V0
Wire Gauge Support 24-16 AWG
Shell Material Plastic with metal reinforcement
Contact Resistance 5 m
Mating Cycle Durability >500 cycles
Contact Material Copper alloy with nickel-plated finish
Insulation Material High-grade engineering plastic
Locking Mechanism Threaded coupling
Mounting Style Inline cable mount
Sealing Method Silicone rubber gasket

YA20 250V 5A 14Pin Male Plug IP67 Waterproof Power Connector Plastic + Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Shop Now for the featured, rare YA20 250V 5A 14Pin Male Plug - a gilt-edged solution for power and signal connections in demanding environments. This venerable connector blends a rugged plastic and reinforced metal shell, delivering a gorgeous yet robust finish. Engineered for automation and outdoor machinery, its IP67 waterproof rating ensures reliability in harsh conditions. With solder terminals, secure threaded locking, and corrosion-resistant nickel-plated copper contacts, this connector excels in both durability and safety. Certified by CE and RoHS standards. Don't miss this premium choice for professional use.

Plant Application and Competitive Advantages

Ideal for industrial automation and machinery, the YA20 14Pin Male Plug effortlessly integrates into power systems, providing dependable connections for plant equipment and outdoor installations. For optimal usage, simply solder wires (24-16 AWG) to each terminal, secure with the threaded coupling, and ensure proper gasket placement for waterproofing. Unique advantages include flame-retardant insulation, impressive 500+ mating cycles, and superior resistance to corrosion, offering users outstanding longevity and competitive performance in challenging environments.

Packaging and Delivery Information

The YA20 250V 5A 14Pin Male Plug is packaged with premium care, ensuring all components remain protected through transit. Shipped from ports across India, each unit is inspected and sealed before dispatch. Delivered to your doorstep or workplace, these connectors are suited for broader domestic markets, guaranteeing availability for various industry needs. Detailed packaging ensures the connector arrives in pristine condition, ready for immediate use in automation, manufacturing, or field operations.

FAQ's of YA20 250V 5A 14Pin Male Plug IP67 Waterproof Power Connector Plastic + Metal Shell Solder Terminal:

Q: How do I install the YA20 14Pin Male Plug in my equipment?

A: To install, solder your wires (24-16 AWG) to the terminals, position the plug securely, and tighten using the threaded coupling for a robust, waterproof connection.

Q: What benefits does the IP67 rating provide for outdoor use?

A: The IP67 rating ensures the connector is fully protected against dust and can withstand immersion in water, making it perfect for outdoor and industrial applications in harsh environments.

Q: When should I consider replacing the connector?

A: With a mating cycle durability of over 500 connections, you should inspect and consider replacement if you notice wear, damage, or decreased performance beyond this threshold.

Q: Where can this connector be best utilized?

A: It is especially well-suited for power and signal connections in industrial automation, heavy machinery, and outdoor electrical systems requiring waterproof and secure performance.

Q: What is the advantage of the solder terminal design?

A: Solder terminals provide a stable and low-resistance connection, reducing the risk of signal loss while enhancing electrical reliability over extended use.

Q: How does the packaging ensure quality during delivery?

A: Each connector is carefully packaged and inspected before shipment, preventing physical damage and ensuring that you receive a functional, high-quality product ready for use.
