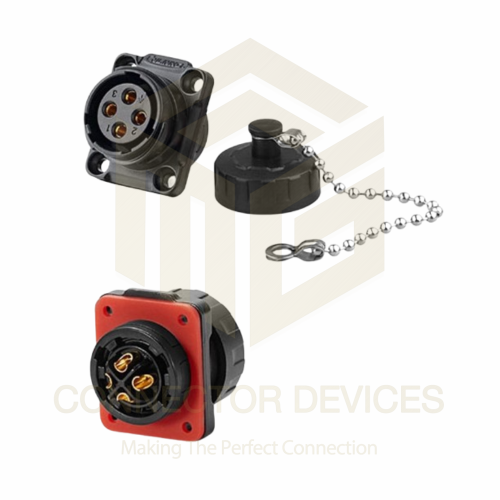

YM20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: YM20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 424.0 INR
Availability: InStock

424.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +85C
Power Supply AC/DC Compatible
Input Solder Terminal
Components Plastic Shell, Solder Terminal, Sealing Gasket
Interface 4 Pin Socket, Solder Type
Power Source Wired/Panel Connected
IP Rating IP67
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 424.0 INR/Piece

Mechanical Life 2000 Mating Cycles
Cable Diameter Range 5mm - 10mm
Connector Gender Female
Contact Material Copper Alloy with Silver Plating
Number of Pins 4
Contact Resistance 5m
Mounting Type Panel Mount (Circular Flange Type)
Shell Material High-Strength Engineering Plastic
Sealing Method Rubber Waterproof Gasket
Flame Retardant Grade UL94-V0
Insulation Resistance 2000M @ 500VDC

YM20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Output 4 Pin Female Socket
Rated Voltage 500V
Components Plastic Shell, Solder Terminal, Sealing Gasket
Interface 4 Pin Socket, Solder Type
Product Type Waterproof Power Connector
Application Machinery, LED Lighting, Marine, Automation
Dimension (L*W*H) Approx. 78mm x 28mm x 28mm
Power Source Wired/Panel Connected
Usage Industrial Equipment, Outdoor Power Supply
Features Waterproof, Dustproof, Corrosion Resistant, Flame Retardant
IP Rating IP67
Size 20mm Panel Mount Diameter
Color Black
Thickness Standard Shell Thickness
Operating Temperature -40C to +85C
Weight Approx. 45g
Supply Voltage 500V AC/DC
Input Solder Terminal
Power Supply AC/DC Compatible
Current Rating 20A
Function Power Connection and Distribution
Capacity 20A
Frequency DC/50-60Hz AC

Mechanical Life 2000 Mating Cycles
Cable Diameter Range 5mm - 10mm
Connector Gender Female
Contact Material Copper Alloy with Silver Plating
Number of Pins 4
Contact Resistance 5m
Mounting Type Panel Mount (Circular Flange Type)
Shell Material High-Strength Engineering Plastic
Sealing Method Rubber Waterproof Gasket
Flame Retardant Grade UL94-V0
Insulation Resistance 2000M @ 500VDC

YM20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Temperature and humidity:-4080C; 40C, 85%RH
Withstanding voltage:2500V
Contact dimension:Phi 2.7*4
Screw torque:42-53 (N.m)
Insertion and extraction force:8.0N Max

Exceptional Waterproof and Dustproof Design

The YM20 connector comes with an IP67 rating, ensuring complete protection against water immersion up to one meter for 30 minutes and total resistance to dust. This makes it perfect for outdoor and industrial applications where environmental elements are a concern, helping maintain consistent and safe power connections even in challenging conditions.

Reliable Performance and Safety Features

Built from high-strength engineering plastic and equipped with silver-plated copper alloy contacts, the YM20 socket delivers low contact resistance (5m) and high insulation resistance (2000M @ 500VDC). Its flame-retardant UL94-V0 rated shell enhances safety, while the robust design supports up to 2000 mating cycles, promising long-lasting, reliable service.

FAQ's of YM20 500V 20A 4Pin Female Socket IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the YM20 4Pin Female Socket?

A: The YM20 socket is designed with a circular flange-type panel mount. Installation involves drilling a compatible 20mm diameter panel hole, securing the socket with its flange and screws, and soldering the power wires to the internal terminals. Finally, use the supplied rubber gasket to ensure a waterproof seal.

Q: What environments is this connector suitable for?

A: With its IP67 waterproof and dustproof rating, flame-retardant shell, and wide operating temperature range (-40C to +85C), the YM20 connector is ideal for outdoor, industrial, marine, LED lighting, and automation applications where rugged and safe power distribution is essential.

Q: When should I use a connector with silver-plated copper contacts?

A: Silver-plated copper alloy contacts, as found in the YM20, should be used when low contact resistance, high conductivity, and corrosion resistance are required, especially in environments exposed to moisture and high currents, ensuring efficient and stable power transmission.

Q: Where can I purchase the YM20 4Pin Female Socket in India?

A: The YM20 connector is available through multiple channels, including distributors, exporters, importers, manufacturers, traders, and wholesalers throughout India. Check with industrial electrical suppliers or authorized online platforms for purchasing options.

Q: What is the benefit of the panel mount (circular flange) design?

A: The panel mount flange type allows for secure and stable integration into equipment panels or enclosures, providing a fixed, vibration-resistant interface that enhances convenience, safety, and durability in both new installations and equipment upgrades.

Q: How does the sealing gasket contribute to waterproofing?

A: The included rubber sealing gasket compresses between the connector flange and the mounting panel to prevent water and dust from entering, ensuring a tight and reliable IP67-rated seal even in outdoor or wet settings.
