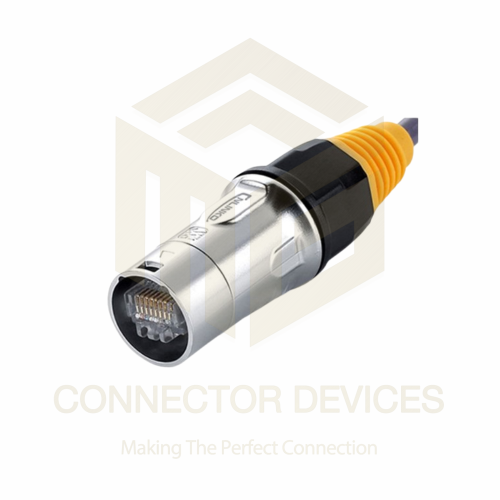

YT-RJ45 Series RJ45 Snap-Fastener Male Plug IP65 Waterproof Ethernet Connector

Name: YT-RJ45 Series RJ45 Snap-Fastener Male Plug IP65 Waterproof Ethernet Connector
Brand: CONNECTOR DEVICES
Price: 309.0 INR
Availability: InStock

309.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply Passive (No power required for operation)
IP Rating IP65
Components Plug, Seal Cap, Snap-lock Housing
Interface RJ45 Male, Snap-on Fastener
Usage Network Connections in Rugged Environments
Output Ethernet/Data Signal
Display Type N/A (No display)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YT-RJ45 Series RJ45 Snap-Fastener Male Plug IP65 Waterproof Ethernet Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 309.0 INR/Piece

Sealing Structure Silicone O-Ring Seal
Flame Rating UL94-V0
Lock Mechanism Quick Snap-Fastener with Anti-Vibration Feature
Installation Method Tool-Free, Snap-fit Design
Shielding Optional (Unshielded/Shielded Version)
Cable Compatibility Cat5e/Cat6 (Shielded and Unshielded Cable)
Mounting Type Panel/Male Inline Connector
Mating Cycles 500 cycles
RoHS Compliance Yes
Connector Material High-quality PA66 Nylon + Copper Alloy Contacts
Contact Plating Gold-plated contacts for enhanced signal reliability

YT-RJ45 Series RJ45 Snap-Fastener Male Plug IP65 Waterproof Ethernet Connector Product Specifications

Output Ethernet/Data Signal
Display Type N/A (No display)
Rated Voltage DC 50V, AC 120V
Frequency Ethernet signal frequencies
Input RJ45 Male Plug
Components Plug, Seal Cap, Snap-lock Housing
Power Source Passive (No power required)
Power Supply Passive (No power required for operation)
Function Ethernet/Data Transmission
IP Rating IP65
Application Outdoor/Industrial Ethernet Connectivity, Automation
Supply Voltage Not applicable (data only)
Product Type RJ45 Male Snap-Fastener Plug
Thermal Conductivity N/A (plastic housing)
Usage Network Connections in Rugged Environments
Dimension (L*W*H) 68.8mm 24.5mm 24.5mm (plug only)
Features Waterproof, Dustproof, Snap Fastener, Easy Assembly, Shock Resistant
Current Rating 1.5A Max
Interface RJ45 Male, Snap-on Fastener
Size Standard RJ45 size with extended housing
Color Black
Weight Approx. 38g
Operating Temperature -40C to +85C
Capacity Supports up to 8-core Cat5/Cat6

Sealing Structure Silicone O-Ring Seal
Flame Rating UL94-V0
Lock Mechanism Quick Snap-Fastener with Anti-Vibration Feature
Installation Method Tool-Free, Snap-fit Design
Shielding Optional (Unshielded/Shielded Version)
Cable Compatibility Cat5e/Cat6 (Shielded and Unshielded Cable)
Mounting Type Panel/Male Inline Connector
Mating Cycles 500 cycles
RoHS Compliance Yes
Connector Material High-quality PA66 Nylon + Copper Alloy Contacts
Contact Plating Gold-plated contacts for enhanced signal reliability

YT-RJ45 Series RJ45 Snap-Fastener Male Plug IP65 Waterproof Ethernet Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Diameter range:5.57mm
Contact diameterxnumber:8
Operating voltage (AC):500V
Insulation resistance:>500Mohm
Durability:>500
Working temperature:-4080C
Modular Interface:RJ45

Secure Connectivity in Rugged Environments

The YT-RJ45 Series connector is designed for uncompromising Ethernet connectivity in harsh conditions. Its snap-fastener mechanism, reinforced by an anti-vibration system, ensures a stable connection even in environments subject to movement or shock, such as factories, outdoor installations, and automation systems.

Effortless Installation and Versatile Design

Experience hassle-free assembly thanks to the tool-free, snap-fit design of the YT-RJ45 Series. Compatible with both shielded and unshielded Cat5e and Cat6 cables, the connector supports a wide range of installation scenarios on panels or in-line configurations, making it versatile for various network setups.

FAQ's of YT-RJ45 Series RJ45 Snap-Fastener Male Plug IP65 Waterproof Ethernet Connector:

Q: How does the YT-RJ45 Series connector achieve IP65 waterproof protection?

A: The YT-RJ45 Series connector achieves IP65 waterproofing through its high-quality PA66 nylon housing and a silicone O-ring seal that prevents water and dust ingress, making it suitable for outdoor or industrial use.

Q: What types of Ethernet cables are compatible with this connector?

A: This connector is compatible with both unshielded and shielded Cat5e and Cat6 cables, supporting all standard eight-core configurations for reliable network connections.

Q: When should I choose the shielded version of the connector?

A: Opt for the shielded version when your installation is exposed to significant electromagnetic interference, such as near heavy machinery or power lines, to enhance signal integrity and reduce data loss.

Q: Where can the YT-RJ45 connector be installed?

A: The connector is suitable for installation in a variety of rugged environments-including outdoor network boxes, industrial automation systems, and any setting requiring dependable data transmission in harsh conditions.

Q: What is the process for installing the connector?

A: Installation is quick and tool-free: simply connect the compatible Ethernet cable, snap the fastener shut, and seal with the included cap for a secure, waterproof connection-no specialized tools required.

Q: What are the main benefits of the gold-plated contacts?

A: Gold-plated contacts enhance signal reliability by minimizing oxidation and ensuring excellent electrical conductivity for consistent, high-performance data transmission, even after hundreds of mating cycles.

Q: How does the anti-vibration feature work?

A: The integrated anti-vibration mechanism secures the snap-fastener in place and absorbs movement, which prevents accidental disconnection and maintains a stable Ethernet connection in dynamic or vibrating environments.
