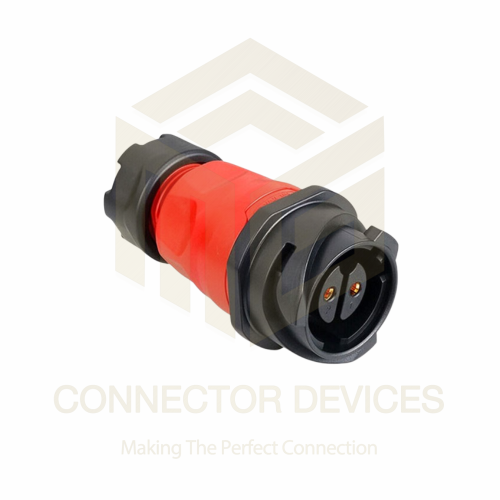

YM20 20A 2Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal

Name: YM20 20A 2Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal
Brand: CONNECTOR DEVICES
Price: 377.0 INR
Availability: InStock

377.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +105C
Input 2-pin inline female plug
Features Heavy duty, IP68 waterproof, anti-corrosion, dustproof, easy soldering
Output Inline connection to cable or socket
IP Rating IP68
Power Source Wired electrical supply
Usage Industrial and outdoor power connections
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 20A 2Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Price And Quantity

Price 377.0 INR/Piece
Minimum Order Quantity 100 Piece

YM20 20A 2Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Product Specifications

Operating Temperature -40C to +105C
Application LED lighting, power equipment, automation, marine, outdoor devices
Weight Approx. 62g
Capacity 20A current handling
Current Rating 20A Max
Input 2-pin inline female plug
Rated Voltage 250V AC
Function Inline power connection for electrical equipment
Features Heavy duty, IP68 waterproof, anti-corrosion, dustproof, easy soldering
Product Type IP68 waterproof power connector
Output Inline connection to cable or socket
Size 20mm series housing
Power Source Wired electrical supply
Frequency 50/60Hz
Thickness Approx. 30mm (housing diameter)
IP Rating IP68
Color Black
Supply Voltage AC 110V~250V
Dimension (L*W*H) Approx. 85mm x 30mm x 30mm
Display Type No display
Interface Solder terminal
Usage Industrial and outdoor power connections
Power Supply Electrical cable supply
Components Plug housing, terminal pins, sealing ring

Connector Type Female inline plug
OEM Support Available
Flame Retardant Standard UL94-V0
Maximum Withstanding Voltage 1500V AC/1min
Contact Material Copper alloy with silver plating
Mechanical Life >500 mating cycles
Wire Gauge Compatibility Accepts 14-12 AWG (2.5-4.0mm2) cables
Shell Material High-quality flame-retardant nylon PA66
Seal Type Silicone O-ring gasket
Cable Diameter Compatibility 6.0 - 12.0mm
Coupling Method Threaded locking
Number of Pins 2-pin female

YM20 20A 2Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Mating cycle:1700 Times
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Exceptional Weatherproof Protection

Engineered for harsh environments, the YM20 connector features an IP68-rated seal and a flame-retardant nylon PA66 housing. The silicone O-ring gasket and threaded coupling method deliver superior moisture resistance, ensuring safe operation in wet, dusty, or corrosive outdoor conditions. This level of protection makes it a preferred choice for marine, industrial, and outdoor installations.

Versatile Power Connectivity

Designed for 20A, 250V AC power applications, the YM20 2-pin female plug accommodates 14-12 AWG cables, supporting a range of power distribution needs. It provides a reliable inline power connection for electrical equipment such as LED lighting, automation machinery, and other high-current devices. Its compact design fits into tight spaces without sacrificing performance.

Simple and Secure Installation

Installation is straightforward thanks to the solder terminal interface, which allows users to quickly and securely attach wires. The connector's threaded locking ensures a strong and vibration-resistant bond, while the compatibility with various cable diameters increases flexibility for diverse wiring setups. Whether you're a manufacturer, distributor, or engineer, the YM20 streamlines your project.

FAQ's of YM20 20A 2Pin Female Plug IP68 Waterproof Power Connector Inline Solder Terminal:

Q: How is the YM20 2-pin female plug installed?

A: The YM20 plug features solder terminals, allowing users to securely solder 14-12 AWG wires directly onto the connector. Once the wires are attached, the threaded locking system and silicone O-ring gasket provide a waterproof, dustproof seal when engaged.

Q: What benefits does the IP68 rating provide?

A: An IP68 rating ensures the connector is completely dust-tight and can withstand prolonged submersion in water, making it ideal for outdoor, marine, and industrial environments prone to moisture or dust.

Q: What applications is this connector suitable for?

A: This connector is designed to support heavy-duty electrical connections in LED lighting, power equipment, industrial automation systems, outdoor devices, and marine applications, thanks to its robust waterproof and flame-retardant properties.

Q: When should I use an inline female power connector like the YM20?

A: Use the YM20 2-pin plug whenever you need a reliable, weatherproof inline connection for powering electrical equipment in environments where exposure to water, dust, or chemicals is likely.

Q: What is the operating temperature range for the YM20 connector?

A: The connector operates reliably in extreme conditions, with a temperature range from -40C to +105C, ensuring stable performance in both hot and cold environments.

Q: Where is OEM support available for the YM20?

A: OEM customization and bulk ordering options are available for manufacturers, distributors, and other businesses in India and globally, supporting a variety of industrial and procurement needs.
