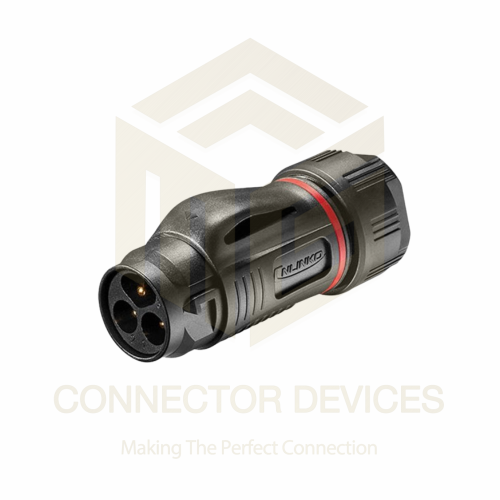

BD20 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal

Name: BD20 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 300.0 INR
Availability: InStock

300.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -40C to +85C
Power Supply AC
Power Source Electric
Features Waterproof, Dustproof, Corrosion Resistant, Quick Connect/Disconnect
Output Detachable Terminal Connection
Components Plug Body, Pins, Plastic Shell, Solder Terminals
Interface Solder Terminal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

BD20 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Price 300.0 INR/Piece
Minimum Order Quantity 100 Piece

Contact Plating Silver-plated
Mechanical Life >1000 mating cycles
Mounting Type Cable Mount Plug
Number of Pins 3
Contact Resistance 2.5 m
Terminal Type Solder
Connection Method Soldered wire to contact pins
Material High Strength Polyamide (Plastic) Shell, Copper Alloy Contacts
Environmental Protection UV Resistance
Cable Diameter Range 6mm - 12mm
Insulation Resistance >500 M (500V DC)
Flame Resistance UL94-V0

BD20 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Size BD20 Series
Rated Voltage 500V AC
Frequency 50-60Hz
Product Type Waterproof Power Connector Plug
Output Detachable Terminal Connection
Application Industrial, Outdoor and Harsh Environment Power Supply
Function Power Connection
Features Waterproof, Dustproof, Corrosion Resistant, Quick Connect/Disconnect
Power Source Electric
Weight Approx. 120g
Power Supply AC
Operating Temperature -40C to +85C
Thickness Shell thickness approx. 1.5mm
Interface Solder Terminal
Dimension (L*W*H) Approx. 115mm x 40mm x 40mm
Components Plug Body, Pins, Plastic Shell, Solder Terminals
Color Black and Blue
Current Rating 20A
Capacity 20A
IP Rating IP67
Usage Outdoor Electrical Installations
Supply Voltage 250V/500V
Input 3-Pin Male

Contact Plating Silver-plated
Mechanical Life >1000 mating cycles
Mounting Type Cable Mount Plug
Number of Pins 3
Contact Resistance 2.5 m
Terminal Type Solder
Connection Method Soldered wire to contact pins
Material High Strength Polyamide (Plastic) Shell, Copper Alloy Contacts
Environmental Protection UV Resistance
Cable Diameter Range 6mm - 12mm
Insulation Resistance >500 M (500V DC)
Flame Resistance UL94-V0

BD20 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Withstanding voltage:2500V
Operating Voltage:500V
Contact dimension:Phi 3x3
Insertion and extraction force:5.4N Max
Temperature and humidity:-40+80C; 40C, 85%RH

Rugged Construction for Extreme Environments

The BD20 3Pin plug boasts a high-strength polyamide shell with a 1.5mm thickness, providing outstanding resistance to impacts, outdoor exposure, and UV radiation. Built to meet flame resistance standards (UL94-V0), the plug is engineered for superior safety and longevity, making it ideal for outdoor and industrial power supply tasks.

Reliable Power - Fast and Secure Connections

With silver-plated copper alloy contacts and a low contact resistance of just 2.5m, this connector delivers consistent electrical performance. The solder terminal connection ensures secure wire fixing while supporting a wide range of cable sizes (6mm to 12mm), and the quick-connect/disconnect function makes on-site servicing straightforward.

Versatile and Safe for Industrial Applications

Rated for 20A and 500V AC, the BD20 plug is suitable for various heavy-duty applications. The unit satisfies stringent IP67 waterproof standards, ensuring operations remain unaffected by dust or water ingress. This makes it indispensable for distributors, importers, and installers across India handling complex outdoor electrical projects.

FAQ's of BD20 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How is the BD20 20A 3Pin Male Plug installed?

A: Installation involves soldering wires to the terminal pins-simply strip the cable, solder the conductors to each pin, and secure the strain relief. The cable mount design supports diameters from 6mm to 12mm, accommodating various industrial cables.

Q: What makes this connector suitable for outdoor and industrial use?

A: With an IP67 rating, flame-resistant UL94-V0 polyamide shell, and corrosion-resistant design, this connector withstands harsh environments, including exposure to water, dust, chemical agents, and UV rays, ensuring long-term reliability outdoors or in factories.

Q: Where can the BD20 plug be typically used?

A: It is ideally used in outdoor electrical installations, harsh industrial environments, temporary power systems, or any location requiring waterproof, quick-connect power solutions. Its rugged build is well suited for professional use in India's distribution and wholesale sectors.

Q: What is the connection method for this plug, and why is it advantageous?

A: This plug uses a solder terminal connection for wires, ensuring low-resistance, vibration-resistant joins. The design enhances electrical contact integrity and is less prone to loosening over time compared to screw or push-in terminals.

Q: When should I choose a connector with silver-plated contacts?

A: Silver-plated contacts provide superior conductivity, reduced contact resistance, and better corrosion resistance. Choose this connector whenever you require consistent, high-quality electrical performance in challenging environments.

Q: How does the plug's mechanical life benefit frequent use?

A: Rated for more than 1,000 mating cycles, the BD20 connector is built to endure repeated connections and disconnections, making it reliable for maintenance-intensive setups or mobile power applications.
