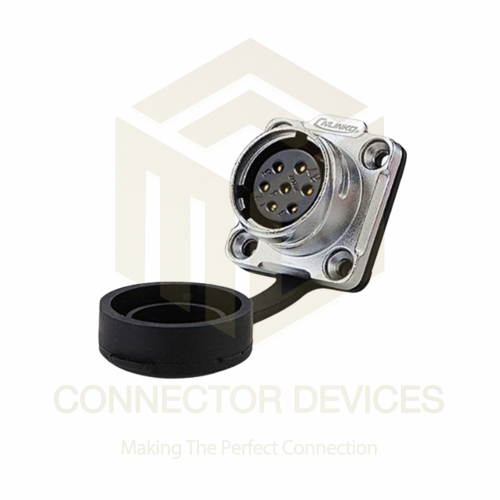

DH20 500V 10A 7Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal

Name: DH20 500V 10A 7Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 577.0 INR
Availability: InStock

577.0 INR/Piece

Get a Price/Quote

Product Details:

Power Source Connected to powered circuit
Features Metal shell, waterproof, dustproof, corrosion-resistant, easy installation
Usage Outdoor or industrial electrical equipment
Interface 7 pin female socket, solder terminal
Power Supply AC/DC
IP Rating IP67
Components Metal shell, 7 pin female contact, solder terminals, sealing ring
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH20 500V 10A 7Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 577.0 INR/Piece

DH20 500V 10A 7Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Output 7 pin female socket
Color Metallic silver
Application Industrial machinery, outdoor power connections, automation equipment
Product Type Waterproof power socket connector
Size DH20
Dimension (L*W*H) About 40mm diameter x 50mm length
Input Solder terminal connection
Supply Voltage 500V max
Function Power connector for secure electrical connections
Power Source Connected to powered circuit
Thickness Standard metal shell
Components Metal shell, 7 pin female contact, solder terminals, sealing ring
Operating Temperature -40C to +85C
Frequency 50/60 Hz
Weight Approx. 50g
Usage Outdoor or industrial electrical equipment
Interface 7 pin female socket, solder terminal
Current Rating 10A
Power Supply AC/DC
IP Rating IP67
Capacity 10A current
Features Metal shell, waterproof, dustproof, corrosion-resistant, easy installation
Rated Voltage 500V

Pin Configuration 7 Pins
Standards Compliance IEC60529, GB4208
Sealing Method Rubber gasket and screw locking
Flammability Rating UL94-V0
Material Zinc alloy metal shell, copper contacts with nickel plating
Cable Outer Diameter 6.0mm~12.5mm
Insulation Resistance 2000M (at 500VDC)
Contact Plating Nickel
Mounting Type Panel mount
Contact Resistance 5m
Mechanical Life 500 mating cycles
Environmental Resistance Corrosion and vibration resistant

DH20 500V 10A 7Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Rated Current:10A
Temperature and humidity:-4080C; 40C, 85%RH
Wire Gauge:1.01.5mm/16AWG
Withstand voltage(AC.V)1min:2500V
Mating Cycle:1700 Times

Superior Waterproof and Dustproof Performance

Engineered with a resilient zinc alloy shell and a robust rubber gasket, the DH20 socket empowers your equipment with IP67-rated protection. This ensures that power connections remain secure, shielded from dust ingress, and reliably waterproof even under challenging outdoor and industrial conditions.

Durability and Secure Connections

The socket features nickel-plated copper contacts and a solid screw-lock design, supporting reliable conductivity with minimal contact resistance. Tested for up to 500 mating cycles, it stands up to repeated use while maintaining precise, consistent connections in vibration-prone environments.

Versatile Application and Easy Installation

Designed for panel mounting, this connector easily fits equipment with cable diameters from 6.0mm to 12.5mm. It provides a standardized solution for industrial automation systems, outdoor machinery, and more, offering fast yet secure installations and supporting both AC and DC power needs.

FAQ's of DH20 500V 10A 7Pin Female Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the DH20 500V 7Pin Female Socket into my equipment?

A: To install, panel-mount the socket by securing it with the included screw locking mechanism and rubber gasket for a tight, waterproof seal. Solder your power or signal wires directly to the terminal pins, ensuring that cables with an outer diameter between 6.0mm and 12.5mm are used for a proper fit.

Q: What environments is this connector suitable for?

A: This connector is designed for both outdoor and industrial applications, thanks to its IP67 waterproof and dustproof rating, corrosion and vibration resistance, and UL94-V0 flame-retardant shell. It's ideal for use in machinery, automation systems, and exposed equipment.

Q: When should I consider using a 7-pin IP67 power connector?

A: Use this connector when you need to provide reliable power connections in harsh or exposed environments, especially when multiple circuits or signal lines are required, such as with industrial machinery, outdoor lighting, or automation equipment.

Q: What are the benefits of using a zinc alloy metal shell and nickel-plated contacts?

A: The zinc alloy shell offers high durability and corrosion resistance, while nickel-plated copper contacts ensure excellent electrical conductivity and minimal contact resistance, contributing to long-term reliability in difficult conditions.

Q: How does the sealing process work for achieving waterproof protection?

A: The DH20 socket utilizes a precision rubber gasket and a secure screw-lock system to tightly seal the connection area. This combination prevents water and dust from penetrating the connector, meeting IP67 requirements.

Q: What standards does the DH20 connector comply with?

A: It complies with IEC60529 and GB4208 for ingress protection, and meets UL94-V0 flammability standards, ensuring robust performance and enhanced safety in electrical installations.
