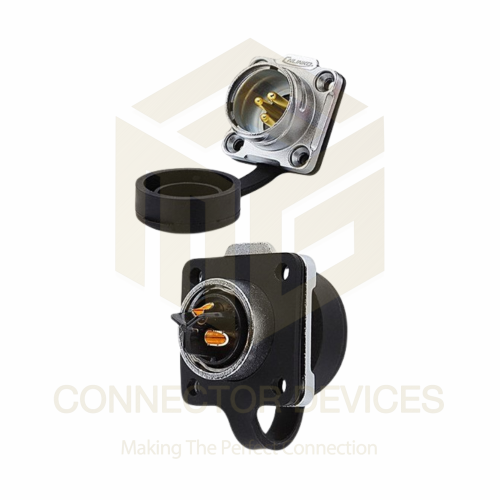

DH20 500V 20A 3Pin Male Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal

372.0 INR/Piece

Get a Price/Quote

Product Details:

Input Compatible Male Plug
Features Waterproof, Dustproof, Corrosion Resistant, Easy Installation
Operating Temperature -40C to +80C
Power Supply AC or DC
Output 3 Pin Power Output
IP Rating IP67
Usage Industrial Equipment, Power Distribution, Outdoor Power Supply
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH20 500V 20A 3Pin Male Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 372.0 INR/Piece

Mechanical Life >500 Mating Cycles
Connection Type Solder Terminal
Flammability Rating UL94 V-0
Contact Material Copper Alloy, Silver Plated
Contact Resistance 5m
Insulation Resistance >2000M at 500V DC
Sealing Method Rubber Gasket and O-Ring
Locking System Threaded Coupling
Pin Configuration 3 Pin Male Socket
Ambient Humidity 95% RH (non-condensing)
Mounting Type Panel Mount (Circular Threaded)
Cable Diameter Acceptance 6mm to 12mm
Shell Material Metal (Aluminum Alloy)

DH20 500V 20A 3Pin Male Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Supply Voltage 500V max
Function Power Connection
Application Outdoor Electrical Connections, Machinery, Power Cabinets
Interface Panel Mount, 3 Pin Male Solder Terminals
Output 3 Pin Power Output
Components Metal Shell, 3 Solder Terminals, Sealing Gasket, Lock Nut
IP Rating IP67
Color Silver (Metal Shell), Black (Insulator)
Frequency 50/60Hz
Usage Industrial Equipment, Power Distribution, Outdoor Power Supply
Dimension (L*W*H) Approx. 90mm x 33mm x 33mm
Size DH20 Series (20mm Threaded Size)
Power Source Mains Power
Rated Voltage 500V
Current Rating 20A
Thickness Shell thickness approx. 2mm
Capacity 20A Maximum Current
Product Type Waterproof Power Connector
Weight Approx. 120g
Input Compatible Male Plug
Features Waterproof, Dustproof, Corrosion Resistant, Easy Installation
Operating Temperature -40C to +80C
Power Supply AC or DC

Mechanical Life >500 Mating Cycles
Connection Type Solder Terminal
Flammability Rating UL94 V-0
Contact Material Copper Alloy, Silver Plated
Contact Resistance 5m
Insulation Resistance >2000M at 500V DC
Sealing Method Rubber Gasket and O-Ring
Locking System Threaded Coupling
Pin Configuration 3 Pin Male Socket
Ambient Humidity 95% RH (non-condensing)
Mounting Type Panel Mount (Circular Threaded)
Cable Diameter Acceptance 6mm to 12mm
Shell Material Metal (Aluminum Alloy)

DH20 500V 20A 3Pin Male Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Order Today and secure the DH20 500V 20A 3Pin Male Socket, a best-selling industrial connector renowned for its superb performance! Engineered with a heavy-duty aluminum alloy shell and top-ranking insulation, this connector guarantees a gorgeous, corrosion-resistant finish. Its IP67 waterproof rating ensures longevity even in harsh, outdoor conditions. With a scarce supply due to its remarkable durability, flammability resistance (UL94 V-0), and >500 mating cycles, it's the ultimate solution for power distribution. Act quickly-stock is limited for discerning distributors, exporters, and manufacturers. Perfect for power cabinets, machinery, and outdoor equipment!

Versatile Applications and Superior Materials

The DH20 500V 20A 3Pin Male Socket IP67 delivers reliable performance for industrial equipment, machinery, outdoor power supplies, and power cabinets. Manufactured with a robust aluminum alloy shell and silver-plated copper terminals, it offers excellent insulation resistance and ensures a secure connection in plant environments. Its material features include high corrosion resistance, dustproof sealing, and superb flammability protection, making it a go-to choice for challenging site installations requiring consistent power distribution.

Fast Delivery, Strong Supply, and Fair Sample Policy

Experience prompt drop-off and reliable supply with the DH20 500V 20A 3Pin Male Socket. With strong production capabilities, we meet high-volume export market demands and deliver efficiently worldwide. Our flexible sample policy lets clients examine quality before placing full orders, with asking price details available upon inquiry. Whether you're a distributor or manufacturer, trust in our commitment to quick logistics for both domestic and international buyers.

FAQ's of DH20 500V 20A 3Pin Male Socket IP67 Metal Waterproof Power Connector Metal Shell Solder Terminal:

Q: How is the DH20 3Pin Male Socket installed on industrial equipment?

A: Installation is straightforward; the socket features a panel mount design with a circular threaded lock for secure attachment. Solder terminals ensure a reliable connection for power input or output.

Q: What makes the DH20 500V 20A connector suitable for outdoor applications?

A: Its IP67 rating, aluminum alloy shell, rubber gasket, and O-ring ensure superb waterproof, dustproof, and corrosion-resistant performance, ideal for harsh or outdoor environments.

Q: Where can the DH20 3Pin Male Socket be used most effectively?

A: This connector excels in power cabinets, industrial machinery, outdoor electrical systems, and plant installations needing robust, safe power connections.

Q: What are the benefits of using a silver-plated copper alloy for the contacts?

A: Silver-plated copper alloy enhances conductivity and reduces contact resistance, promoting high performance and durability across many power distribution applications.

Q: How long does it take to deliver DH20 connectors after placing an order?

A: Delivery times are prompt, typically with quick drop-off for most export markets. Exact timelines may vary depending on order size and destination; please inquire for specifics.

Q: What is the process for requesting samples or bulk orders?

A: Clients can request samples to verify quality before larger purchases. Our team provides complete details on the asking price and order processing steps tailored to your requirements.
