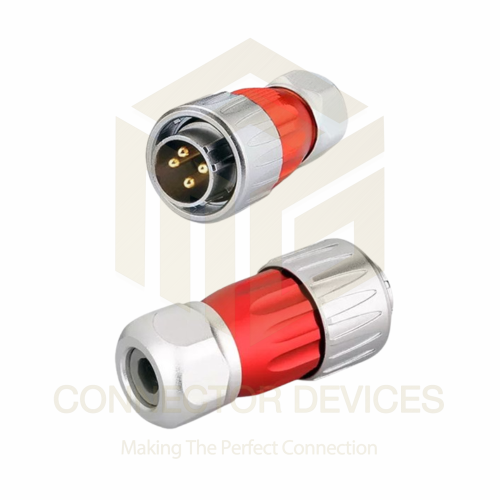

DH20 500V 20A 4Pin Male Plug IP67 Metal Waterproof Power Connector

805.0 INR/Piece

Get a Price/Quote

Product Details:

Input 500V 20A
Interface Screw Terminals
Power Source Cable Powered
Power Supply AC/DC
Components Metal Shell, 4 Male Pins, Locknut
Output 4 Pin Male Connector
Usage Industrial and Outdoor Power Transmission
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH20 500V 20A 4Pin Male Plug IP67 Metal Waterproof Power Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 805.0 INR/Piece

DH20 500V 20A 4Pin Male Plug IP67 Metal Waterproof Power Connector Product Specifications

Current Rating 20A
Usage Industrial and Outdoor Power Transmission
IP Rating IP67
Dimension (L*W*H) Approx. 90mm x 34mm x 34mm
Weight Approx. 150g
Output 4 Pin Male Connector
Rated Voltage 500V AC/DC
Features Metal Body, Shock Proof, Corrosion Resistant, IP67 Waterproof
Capacity 20A
Application Heavy-Duty Machinery, Outdoor Equipment, Power Distribution
Operating Temperature -40C to +80C
Supply Voltage 500V
Input 500V 20A
Thickness Approx. 3mm (Shell)
Product Type Male Plug Waterproof Connector
Size DH20 Series
Power Supply AC/DC
Frequency 50/60Hz
Components Metal Shell, 4 Male Pins, Locknut
Function Electrical Power Connection
Color Silver Gray
Interface Screw Terminals
Power Source Cable Powered

Cable Diameter 8-12mm (recommended)
Flame Retardant Rating UL94-V0
Insulation Resistance >1000 M at 500V DC
Connection Type Panel Mount/Screw Lock
Contact Material Copper Alloy with Silver Plating
RoHS Compliance Yes
Mating Cycle >500 Times
Contact Resistance 2.5 m
Sealing Method Silicone Rubber Gasket
Mechanical Life >500 Mating/Unmating Cycles

DH20 500V 20A 4Pin Male Plug IP67 Metal Waterproof Power Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:2.7x4
Withstand voltage(AC.V)1min:2500V
Mating Cycle:1700 Times
Contact resistance:< 1mohm

Superior Protection and Durability

Engineered with an IP67-rated metal shell and corrosion-resistant finish, the DH20 4Pin Male Plug offers outstanding protection against water, dust, and impact. The flame-retardant UL94-V0 rating and robust construction ensure safe operation in harsh industrial or outdoor environments, enhancing equipment longevity even under extreme conditions.

Reliable Electrical Performance

Designed for 500V AC/DC and 20A capacity, the DH20 features silver-plated copper alloy contacts for low contact resistance (<2.5 m) and high insulation resistance (>1000 M). This ensures stable, efficient power transmission and minimizes energy loss, making it ideal for power distribution, heavy machinery, and outdoor equipment.

Flexible Application & Easy Installation

Supporting cable diameters from 8-12mm and using screw terminals for quick, reliable connections, the DH20 allows efficient panel mounting with a secure screw lock. Its mechanical life exceeds 500 mating/unmating cycles, providing consistent performance for distributors, exporters, importers, manufacturers, and traders alike.

FAQ's of DH20 500V 20A 4Pin Male Plug IP67 Metal Waterproof Power Connector:

Q: How do I install the DH20 500V 4Pin Male Plug to ensure its IP67 waterproof rating?

A: To achieve the IP67 waterproof seal, use the included silicone rubber gasket during installation and securely fasten the connector using the screw lock panel mount. Make sure the cable diameter matches the recommended 8-12mm range and that all screw terminals are tightly connected to prevent water ingress.

Q: What makes the DH20 plug suitable for industrial and outdoor power transmission?

A: The DH20 connector's metal shell, flame-retardant UL94-V0 rating, and IP67 waterproof design provide robust protection against moisture, dust, shocks, and corrosion, making it ideal for demanding industrial and outdoor applications such as heavy-duty machinery and power distribution.

Q: When should I consider replacing the DH20 connector?

A: The DH20 plug is rated for over 500 mating/unmating cycles. If signs of wear-such as degraded mechanical performance or compromised sealing-appear after extensive use or harsh exposure, replacement is recommended to maintain electrical safety and reliability.

Q: Where can the DH20 male plug be utilized effectively?

A: This connector excels in environments requiring durable power connections, including manufacturing plants, construction sites, outdoor equipment setups, and high-power distribution systems. Its rugged design is intended for settings where exposure to harsh conditions is common.

Q: What benefits does the silver-plated copper alloy contact material provide?

A: Silver-plated copper alloy ensures superior conductivity, low contact resistance, and enhanced corrosion resistance. This translates to stable power transmission, reduced energy loss, and a longer reliable service life in challenging environments.

Q: How does the screw terminal interface simplify the connection process?

A: The screw terminal design allows for straightforward wiring without special tools, ensuring secure, vibration-resistant contacts. This design supports quick installation and maintenance, increasing overall efficiency for panel mount applications.

Q: What certifications and compliances does the DH20 connector meet?

A: The DH20 plug satisfies RoHS compliance and has a flame retardant rating of UL94-V0, which means it meets stringent safety, environmental, and flammability standards suitable for industrial markets.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Waterproof Power Connector' category

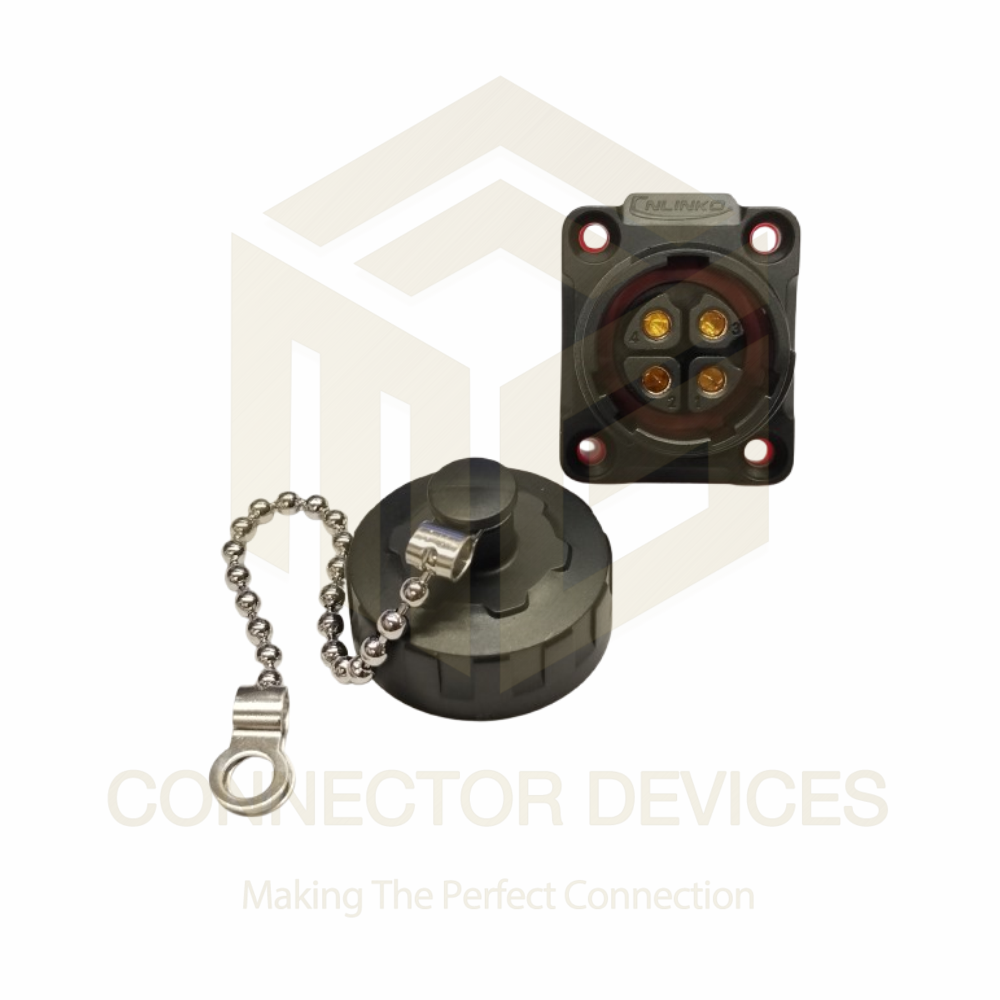

YM20 20A 4Pin Female Socket IP68 Waterproof Power Connector Panel Mount Plastic Shell Solder Terminal Price : 476.0 INR/Piece Minimum Order Quantity : 100 Color : Black Size : YM20 Operating Temperature : 25C to +85C Rated Voltage : 500V AC/DC Features : Waterproof, Dustproof, Corrosionresistant, Quick & secure connection, Panel mount, High current handling IP Rating : IP68 Power Source : Wired Electrical Interface : 4 Pin Solder Terminal Frequency : 50/60Hz Power Supply : Electrical Function : Power Connector Components : Panel mount female socket with plastic shell Product Type : Female Socket Connector Input : 4pin female interface Application : LED lighting, Marine, Industrial equipment, Outdoor power supply, Automation equipment Capacity : 20A max. Supply Voltage : Up to 500V Weight : Approx. 45g Dimension (L*W*H) : Approx. 56mm (L) x 34mm (Dia) Output : 4pin solder terminal Usage : Waterproof electrical/power connections Current Rating : 20A Thickness : Standard panel mount thickness
