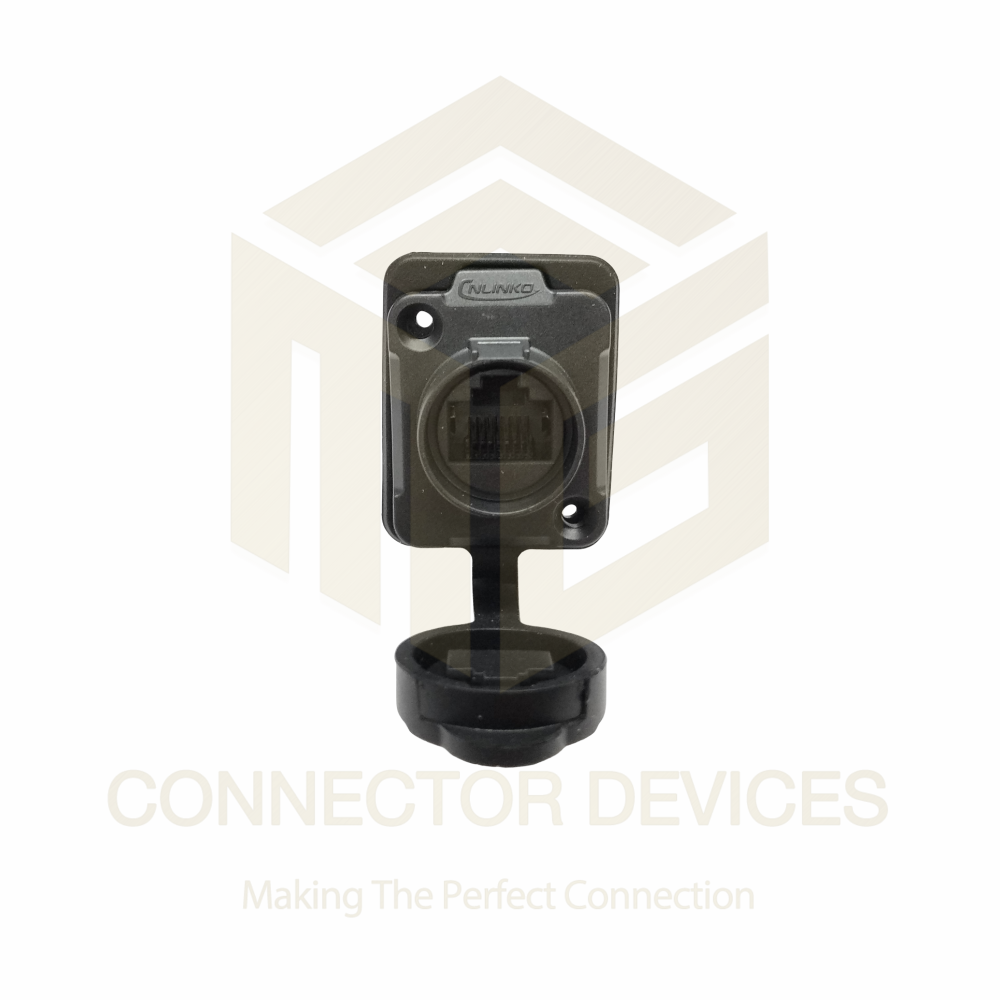

LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector

Name: LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector
Brand: CONNECTOR DEVICES
Price: 376 INR
Availability: InStock

376 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -20C to +80C
IP Rating IP67
Usage Outdoor/Industrial Ethernet Networking
Components Plastic Housing, RJ45 Cat6 Socket, Waterproof Gasket
Output RJ45 Female
Interface RJ45 Cat6 Female Socket
Input RJ45 Female
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 376 INR/Piece

Insulation Resistance 1000M at 500VDC
RoHS Compliance Yes
Network Speed Support 10/100/1000Mbps (Gigabit)
Compatible Cable Type Cat6, Cat5e, Cat5 Ethernet Cable
Wire Gauge Supported 24-26 AWG
Sealing Technology Silicone Gasket for Waterproofing
Durability 500 Mating Cycles
Connector Standard IEC 60603-7
Flame Retardant Grade UL94V-0
Shielding Unshielded
Connector Type Panel Mount RJ45
Contact Resistance 30m
Mounting Type Chassis/Panel Mount
Material High-Quality Flame Retardant Plastic (PA66)

LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector Product Specifications

Interface RJ45 Cat6 Female Socket
Size LP16 Size Interface
Output RJ45 Female
Current Rating 1.5A Max
Components Plastic Housing, RJ45 Cat6 Socket, Waterproof Gasket
Weight Approx. 22g
Frequency 50/60Hz
Usage Outdoor/Industrial Ethernet Networking
Supply Voltage 125V Max
IP Rating IP67
Operating Temperature -20C to +80C
Application LAN, Industrial Equipment, Outdoor Ethernet Extension
Features Waterproof, Dustproof, UV Resistant, Easy Installation
Rated Voltage 125V AC/DC
Capacity Supports Up to Cat6 Ethernet Speed
Input RJ45 Female
Function Ethernet Data Communication
Color Black/Gray
Product Type Waterproof RJ45 Ethernet Connector

Insulation Resistance 1000M at 500VDC
RoHS Compliance Yes
Network Speed Support 10/100/1000Mbps (Gigabit)
Compatible Cable Type Cat6, Cat5e, Cat5 Ethernet Cable
Wire Gauge Supported 24-26 AWG
Sealing Technology Silicone Gasket for Waterproofing
Durability 500 Mating Cycles
Connector Standard IEC 60603-7
Flame Retardant Grade UL94V-0
Shielding Unshielded
Connector Type Panel Mount RJ45
Contact Resistance 30m
Mounting Type Chassis/Panel Mount
Material High-Quality Flame Retardant Plastic (PA66)

LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating voltage:42V
Working temperature:-2585C, 85% RH Max
Insulation Resistance:500Mohm
Contact Resistance:40mohm
Protection Level: IP67
Durability:750 cycles

IP67 Waterproof and UV Resistant Protection

Designed with a silicone gasket and IP67 sealing technology, this Ethernet connector safeguards against water, dust, and UV exposure. The robust enclosure and industrial-grade flame retardant PA66 plastic ensure performance stability, making it perfect for outdoor and demanding industrial network installations.

Versatile Panel Mount Design for Easy Installation

Its panel/chassis mount build enables secure and straightforward installation in different equipment and network enclosures. Compatible with standard Cat6, Cat5e, and Cat5 Ethernet cables, this connector supports cable diameters of 5.5mm to 7.5mm and accommodates 24-26 AWG wires for diverse networking needs.

Optimal Network Performance and Durability

Supporting speeds up to 1000Mbps (Gigabit), the LP16 RJ45 Cat6 Female Socket ensures fast and reliable data transfer. Rated for 500 mating cycles, a 1.5A current capacity, and withstanding -20C to +80C, it is engineered to last in harsh conditions, delivering long-term value and dependability.

FAQ's of LP16 RJ45 Cat6 Female Socket IP67 Waterproof Ethernet Connector:

Q: How is the LP16 RJ45 Cat6 Female Socket installed in a network system?

A: The connector features a panel mount design, allowing it to be easily secured onto a chassis or network panel using its standard interface. No complex tools are required for installation, making setup straightforward in both new and existing networking systems.

Q: What types of Ethernet cables are compatible with this connector?

A: This socket accommodates Cat6, Cat5e, and Cat5 Ethernet cables, supporting cable diameters between 5.5mm and 7.5mm and wire gauges from 24 to 26 AWG, offering flexibility for various systems.

Q: Where can this waterproof connector be used effectively?

A: Its IP67 rating, flame retardant construction, and UV resistance make it suitable for outdoor LAN applications, industrial equipment, and harsh environments where dust, moisture, or temperature extremes are concerns.

Q: What advantages does the silicone gasket provide in this product?

A: The integrated silicone gasket ensures a reliable waterproof seal at the mounting point, protecting internal components from water ingress and dust, thereby extending the life of your network connection.

Q: When should you choose an IP67-rated Ethernet connector over a standard RJ45 socket?

A: IP67-rated connectors are ideal when installing Ethernet networks in locations exposed to rain, dust, or humidity-such as outdoor equipment, industrial machines, or construction sites-where standard connectors might fail due to environmental damage.

Q: What network speeds does this connector support?

A: The LP16 supports Gigabit Ethernet speeds up to 1000Mbps, as well as 10/100Mbps connections, ensuring compatibility with modern high-speed LAN requirements.
