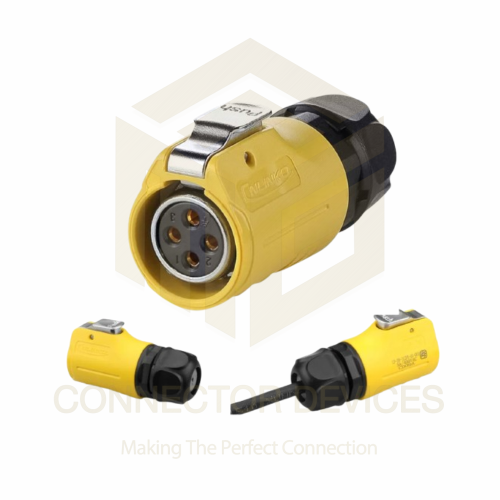

LP20 500V 20A 4Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: LP20 500V 20A 4Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 594.0 INR
Availability: InStock

594.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Interface 4-Pin Female Solder Terminal
Components Connector Shell, Solder Pin Contacts, Locking Nut
Features Waterproof, Dustproof, Durable, Reliable Connection
Power Source Panel Mount Power
Output 4-Pin Electrical Interface
Input 4-Pin Female Plug Solder Terminal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 500V 20A 4Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 594.0 INR/Piece

Environmental Protection IP67 Waterproof/Dustproof, Corrosion Resistant
Mating Cycles >500 Times
Shell Material Plastic (PA66) + Metal
Withstand Voltage 1500V AC, 1 min
Flame Retardant Rating UL94-V0
Contact Resistance 1m
Mounting Type Panel Mount, Inline Cable Mount
Cable Diameter Range 6mm - 12mm
Connector Series LP20
Locking System Threaded Coupling
Contact Material Copper Alloy with Gold Plating
RoHS Compliant Yes
Insulation Resistance >2000M at 500V DC

LP20 500V 20A 4Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Rated Voltage 500V AC/DC
Function Power Connection
Application Power Equipment, Industrial Machinery, Outdoor Devices
Size LP20 Standard size
Frequency 50/60Hz
Supply Voltage 500V
IP Rating IP67
Interface 4-Pin Female Solder Terminal
Capacity 20A Max Current
Current Rating 20A
Components Connector Shell, Solder Pin Contacts, Locking Nut
Features Waterproof, Dustproof, Durable, Reliable Connection
Product Type Waterproof Power Connector
Weight Approx. 53g
Input 4-Pin Female Plug Solder Terminal
Output 4-Pin Electrical Interface
Power Source Panel Mount Power
Usage Industrial or Outdoor Power Connections
Power Supply Electric
Dimension (L*W*H) Approx. 80mm x 28mm
Color Black and Silver
Operating Temperature -25C to +85C

Environmental Protection IP67 Waterproof/Dustproof, Corrosion Resistant
Mating Cycles >500 Times
Shell Material Plastic (PA66) + Metal
Withstand Voltage 1500V AC, 1 min
Flame Retardant Rating UL94-V0
Contact Resistance 1m
Mounting Type Panel Mount, Inline Cable Mount
Cable Diameter Range 6mm - 12mm
Connector Series LP20
Locking System Threaded Coupling
Contact Material Copper Alloy with Gold Plating
RoHS Compliant Yes
Insulation Resistance >2000M at 500V DC

LP20 500V 20A 4Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Latching Lock connect
Cable Specification:2.5mm2 4mm2 /1412AWG
Diameter Range:9mm 13mm
Operating Voltage:500VWithstand Voltage(AC.V)1min:2500V
Temperature Rating:-40C80C

Rugged Construction for Demanding Applications

Built with a tough plastic (PA66) and metal shell, the LP20 Female Plug is engineered to withstand harsh industrial and outdoor settings. Its flame-retardant material and threaded locking system ensure a secure, safe, and long-lasting connection, making it perfect for use with power equipment and outdoor installations.

Superior Electrical Performance and Safety

Offering a high current rating of 20A and voltage handling up to 500V AC/DC, this connector delivers robust electrical performance. Gold-plated copper alloy contacts minimize resistance (<1m) and enhance durability, while the connector's insulation exceeds 2000M at 500V DC, ensuring safety and reliability in critical power connections.

Flexible and Easy Installation

The LP20 connector supports both panel and inline cable mounting, with a user-friendly solder terminal design. Compatible with cable diameters from 6mm to 12mm, it is simple to install and suitable for a range of environments, ensuring convenient integration for distributors, manufacturers, and installers across India.

FAQ's of LP20 500V 20A 4Pin Female Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I install the LP20 4Pin Female Plug for power connections?

A: To install the LP20 plug, solder your power supply wires to the 4-pin female terminal contacts, ensuring proper wire gauge (6-12mm cable diameter) is used. Secure the connectors using the threaded coupling for a reliable and waterproof connection, suitable for panel mount or inline configurations.

Q: What are the main benefits of using the LP20 connector in industrial and outdoor setups?

A: The LP20 offers IP67 waterproof and dustproof protection, a flame-retardant shell, corrosion-resistant gold-plated contacts, and a durable construction. These features ensure reliable, long-lasting power connections even under demanding environmental conditions.

Q: When should I consider replacing or maintaining the LP20 connector?

A: The LP20 connector is rated for over 500 mating cycles. It should be checked periodically for signs of wear, corrosion, or loose couplings, especially in harsh outdoor environments, to ensure consistent performance and safety.

Q: Where can the LP20 4Pin Female Plug be used?

A: This connector is ideal for industrial machinery, power equipment, outdoor devices, and other applications requiring secure, high-current connections in challenging or exposed environments.

Q: What process ensures the LP20 connector provides secure and reliable power delivery?

A: The LP20 uses a threaded coupling system for a tight, vibration-resistant fit, complemented by gold-plated copper alloy contacts to maintain excellent conductivity and resist oxidation, ensuring safe and stable power transmission.

Q: Is the LP20 connector compliant with safety and environmental standards?

A: Yes, the LP20 connector meets RoHS requirements for hazardous substance control and features a flame retardant UL94-V0 rated shell, supporting both environmental safety and operational reliability.
