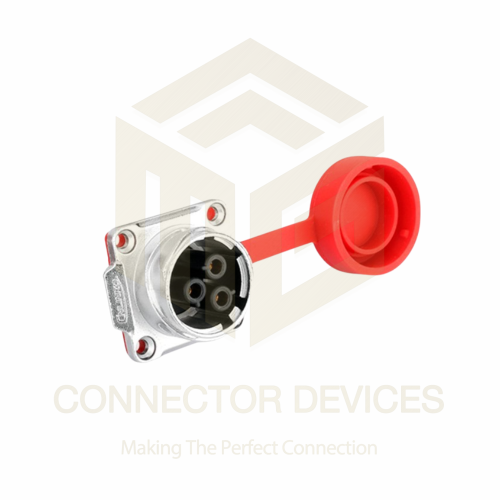

DH24 500V 25A 3-Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal

Name: DH24 500V 25A 3-Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 586.0 INR
Availability: InStock

586.0 INR/Piece

Get a Price/Quote

Product Details:

Power Source Wired Connection
Usage Industrial Power Connections
Operating Temperature -40C to +85C
Components 3-Pin Solder Terminals, Metal Shell, IP67 Sealing Gasket
Interface Solder Terminal
Input 3-Pin Female Socket
IP Rating IP67
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 500V 25A 3-Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 586.0 INR/Piece

DH24 500V 25A 3-Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Frequency 50-60 Hz
Input 3-Pin Female Socket
Application Outdoor and Industrial Equipment
Size DH24 Series (see dimension)
Rated Voltage 500V
Interface Solder Terminal
Function Power Connection
Current Rating 25A
Power Supply AC / DC compatible
Output Through Mating Male Connector
Weight 245 g
Features Waterproof, Corrosion Resistant, Durable Metal Shell, Vibration Resistant
Thickness Metal Shell approx. 2 mm
IP Rating IP67
Operating Temperature -40C to +85C
Dimension (L*W*H) Approx. 57mm x 42mm (flange) x 45mm
Supply Voltage Up to 500V AC/DC
Usage Industrial Power Connections
Power Source Wired Connection
Product Type Waterproof Power Connector
Components 3-Pin Solder Terminals, Metal Shell, IP67 Sealing Gasket
Capacity 25A
Color Silver / Black

Sealing Method Silicone Rubber Gasket
Flame Retardancy UL94-V0
Mounting Type Panel Mount (with Flange)
Insulation Resistance >1000 M at 500V DC
Shell Material Aluminum Alloy
Mating Cycle Durability 500 cycles
Contact Resistance 5 m
Locking Mechanism Threaded Coupling
Contact Material Copper Alloy with Silver Plating
Cable Entry Diameter 8mm - 12mm
Wire Gauge Compatibility 2.5-4.0 mm2
Standards Compliance IEC61076-2-101, RoHS

DH24 500V 25A 3-Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Contact dimension:Phi 3x3
Insertion and extraction force:5.4N Max
Mating cycle:1700 times
Temperature and humidity:-40+80C; 40C, 85%RH

Built for Demanding Environments

The DH24 3-pin female socket is engineered to withstand extreme industrial and outdoor conditions. Its IP67 waterproof rating, vibration resistance, and corrosion-resistant metal shell ensure long-lasting performance. The flame-retardant construction offers additional safety, making it ideal for critical applications where reliability is paramount.

Easy and Secure Installation

Designed for panel mount applications with a convenient flange, this socket enables quick and stable installation. Supports a cable entry diameter of 8-12mm and is compatible with 2.5-4.0 mm2 wires. The threaded locking mechanism ensures a solid and dependable connection, reducing the risk of accidental disconnection and enhancing operational security.

Outstanding Electrical Performance

The connector's silver-plated copper alloy contacts deliver minimal contact resistance (5 m), excellent insulation resistance (>1000 M at 500V DC), and high durability (up to 500 mating cycles). Suitable for both AC and DC voltages up to 500V, and current loads up to 25A, it meets rigorous IEC and RoHS standards for dependable power transmission.

FAQ's of DH24 500V 25A 3-Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the DH24 500V 25A 3-Pin Female Socket onto my equipment?

A: The socket is designed for panel mount installation using its flange. Simply cut an appropriately sized panel opening, align the socket, and secure it with screws. Connect wires (2.5-4.0 mm2) to the solder terminals, ensuring proper insulation, and tighten the threaded coupling for a waterproof and secure fit.

Q: What environments and applications are suitable for this connector?

A: It is ideal for outdoor and industrial equipment, including power distribution, heavy machinery, and areas where exposure to moisture, dust, and vibrations is expected. The IP67 waterproof and corrosion-resistant construction ensures reliable operation in challenging environments.

Q: When should I use this socket for my power connections?

A: Use this socket when you require a durable, waterproof, and vibration-resistant power connector that supports up to 25A at 500V AC/DC. It is best employed where consistent performance and safety are critical, such as in power supply panels, generators, and field equipment.

Q: Where does this connector fit in my wiring process?

A: The DH24 female socket is mounted on the panel of your equipment or control box. The mating DH24 male connector is used for the power cable. This setup facilitates safe and straightforward connection and disconnection during installation or maintenance.

Q: What are the benefits of using a metal shell and silicone gasket on this connector?

A: The aluminum alloy metal shell offers exceptional durability and protection against mechanical impacts. The silicone rubber gasket provides reliable sealing, ensuring waterproof performance (IP67) and safeguarding internal components from moisture and contaminants.

Q: How does the connector ensure safe and consistent operation?

A: It features silver-plated contacts for excellent conductivity, high insulation resistance, low contact resistance, and complies with IEC61076-2-101 and RoHS standards for electrical safety and environmental compatibility. The flame-retardant shell and vibration-resistant design further enhance safety and reliability.
