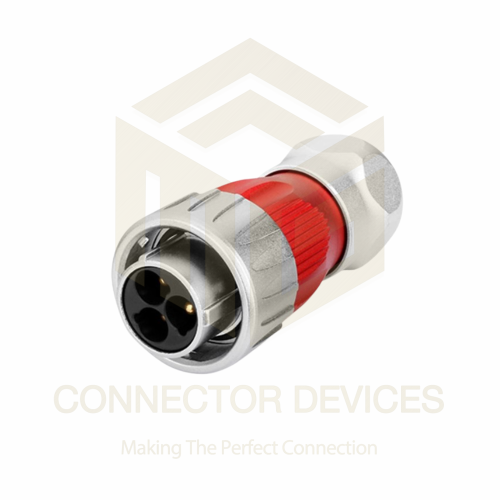

DH24 500V 25A 3-Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal

Name: DH24 500V 25A 3-Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 1005.0 INR
Availability: InStock

1005.0 INR/Piece

Get a Price/Quote

Product Details:

Output Solder Terminals
Usage Industrial Power Connector
Operating Temperature -40C to +85C
Features Waterproof, Corrosion Resistant, Durable Metal Shell, Secure Locking
Input 3-Pin Male Plug
Interface 3-Pin Male
Components Connector Body, 3 Solder Pins, Locking Nut
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 500V 25A 3-Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 1005.0 INR/Piece

Insulation Resistance > 2000M (at 500V DC)
Mounting Type Free Hanging / Panel Mount
Flame Retardant UL94-V0
Shell Material Aluminum Alloy
Seal Type Rubber Gasket
Cable Diameter Supported 10mm-16mm
Shock Resistance 50g, 11ms
Vibration Resistance 10-500Hz, 15g
Contact Resistance 1m
Mechanical Life > 2000 Mating Cycles
Number of Pins 3
Contact Material Copper Alloy with Silver Plating

DH24 500V 25A 3-Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Components Connector Body, 3 Solder Pins, Locking Nut
Power Source Mains/Panel Power
Frequency 50/60Hz
Color Silver, Black
Application Outdoor, Heavy Machinery, Industrial Automation
Capacity 25A Current Capacity
Current Rating 25A
Function Power Connection
Operating Temperature -40C to +85C
Features Waterproof, Corrosion Resistant, Durable Metal Shell, Secure Locking
Product Type Waterproof Power Connector
Thickness Metal Shell ~2.5mm
Supply Voltage 500V
Rated Voltage 500V
Input 3-Pin Male Plug
Interface 3-Pin Male
Power Supply AC/DC
Weight Approx. 290g
IP Rating IP67
Size DH24 Series
Usage Industrial Power Connector
Dimension (L*W*H) Approx. 90mm x 38mm x 38mm
Output Solder Terminals

Insulation Resistance > 2000M (at 500V DC)
Mounting Type Free Hanging / Panel Mount
Flame Retardant UL94-V0
Shell Material Aluminum Alloy
Seal Type Rubber Gasket
Cable Diameter Supported 10mm-16mm
Shock Resistance 50g, 11ms
Vibration Resistance 10-500Hz, 15g
Contact Resistance 1m
Mechanical Life > 2000 Mating Cycles
Number of Pins 3
Contact Material Copper Alloy with Silver Plating

DH24 500V 25A 3-Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Contact dimension:Phi 3x3
Insertion and extraction force:5.4N Max
Mating cycle:1700 times
Temperature and humidity:-40+80C; 40C, 85%RH

Exceptional Durability and Protection

Constructed with a 2.5mm thick aluminum alloy shell and rated at IP67, the DH24 plug offers outstanding resistance to water, dust, shocks, and vibration. Its robust mechanical build supports over 2000 mating cycles, making it a top choice for both temporary and permanent industrial power connections in challenging conditions.

Versatile Installation and Application

Whether you need a free-hanging connector or prefer panel mounting, the DH24 can accommodate both with ease. Its range of cable support and simple solder terminal design make it easy to implement in a variety of environments, including outdoor machinery, control panels, and automated systems.

FAQ's of DH24 500V 25A 3-Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the DH24 500V 25A 3-Pin Male Plug?

A: Installation requires soldering power wires to the three internal pins and securing the connection with the provided locking nut. The plug can be free-hanging or panel mounted and fits cables between 10mm and 16mm in diameter.

Q: What environments is this connector suitable for?

A: This connector is designed for industrial environments, such as heavy machinery, automation, and outdoor applications where water, dust, and mechanical impact resistance are critical.

Q: When should I consider using an IP67 waterproof connector like this one?

A: Use an IP67-rated connector when your application requires protection against temporary immersion in water and complete dustproof performance, such as in outdoor setups or in environments exposed to moisture and debris.

Q: Where can I procure the DH24 series power connector?

A: The connector is available through distributors, wholesalers, exporters, importers, manufacturers, and traders across India and internationally.

Q: What is the process for ensuring a secure and reliable connection with this product?

A: Begin by preparing the cable, solder the wires to the copper alloy pins, ensure the rubber gasket is in place for sealing, and lock the plug to its counterpart using the secure nut to achieve IP67 protection.

Q: What are the main benefits of using the DH24 3-Pin Male Plug?

A: This connector provides reliable high-current handling (25A at 500V), waterproof sealing, robust mechanical and vibration resistance, and long service life, making it ideal for critical power connections in demanding applications.

Q: Can this connector handle both AC and DC power supplies?

A: Yes, the DH24 connector is designed for both AC and DC power sources, supporting a frequency range of 50/60Hz for versatile industrial use.
