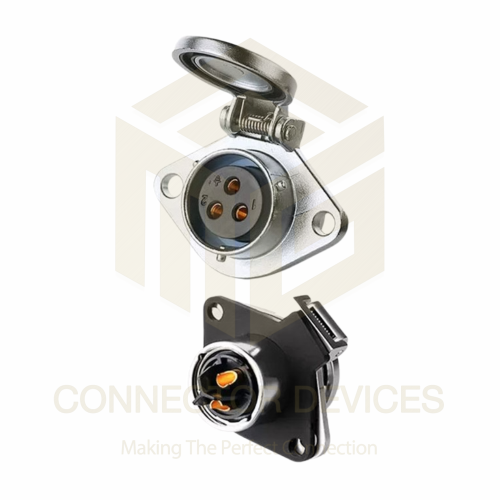

YA20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal

Name: YA20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 555.0 INR
Availability: InStock

555.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Power Supply Through Connect Socket
Usage Electrical Power Connections
Output 3 Pin Solder Terminal
Operating Temperature -40C to +80C
Interface 3 Pin Female Solder Terminal
Power Source Electric
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YA20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Price 555.0 INR/Piece
Minimum Order Quantity 100 Piece

YA20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Frequency 50/60Hz
Features IP67 Waterproof, Corrosion Resistant, Rugged Metal Shell, Easy Solder Termination
Input 3 Pin Solder Terminal
Color Metallic Silver/Black
Components Metal Shell, Solder Terminal, Sealings
Rated Voltage 500V AC/DC
Product Type Waterproof Power Connector
Weight Approx. 85g
Dimension (L*W*H) 55mm x 35mm x 35mm (Approx.)
Function Female Socket Power Connector
Interface 3 Pin Female Solder Terminal
Power Source Electric
Thickness Metal Shell, approx. 2mm
Output 3 Pin Solder Terminal
IP Rating IP67
Operating Temperature -40C to +80C
Size YA20 Series
Usage Electrical Power Connections
Current Rating 20A
Application Industrial, Outdoor Power Supply, Construction
Power Supply Through Connect Socket
Supply Voltage 500V
Capacity 20A

Sealing Method Silicone Gasket
Contact Resistance 1m
Cable Entry Diameter 8mm - 12mm
Contact Material Copper Alloy with Gold Plating
Insulation Resistance >5000M @ 500V DC
Mounting Type Panel Mount
Flammability Rating UL94-V0
Shell Material Zinc Alloy with Nickel Plating

YA20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Contact dimension:phi 2.7x3
Insertion and Extraction Force:6.0N Max
Temperature and humidity:-40+80C; 40C, 85%RH
Mating cycle:> 1700 Times
Screw torque:42-53(N.m) Torque wrench200(N.m)

Versatile Industrial Power Connection

Engineered for industrial and construction sites, this connector supports heavy-duty electrical power transfer. With easy solder terminals and panel mounting, it adapts seamlessly to large equipment, distribution panels, and outdoor units where secure, high-capacity connections are essential. The 3-pin design suits varied configurations.

Rugged Waterproof Protection

Boasting an IP67 rating, a thick metal shell, and a silicone gasket, this socket withstands harsh weather, dust, and accidental water exposure. Its durable build ensures performance across a wide temperature range, from -40C to +80C, and resists corrosion, making it ideal for permanent or semi-permanent installations in challenging environments.

Fast, Reliable Solder Termination

Designed for simple panel mounting and straightforward soldering, the YA20 allows for quick integration into your systems. Gold-plated copper contacts ensure low contact resistance and long-term electrical reliability, while the shell's UL94-V0 flammability rating adds an extra layer of safety.

FAQ's of YA20 500V 20A 3Pin Female Socket IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How do I install the YA20 500V 20A 3Pin Female Socket for my industrial equipment?

A: The YA20 socket is designed for panel mounting; simply fit it into the designated panel opening (refer to the 55mm x 35mm x 35mm dimensions), secure it with the provided mounting hardware, and solder your power wires (8-12mm diameter cables) to the 3-pin terminals for a reliable connection.

Q: What environments is the YA20 socket best suited for?

A: With its IP67 waterproof rating, rugged zinc alloy shell, and corrosion resistance, this female socket is ideal for outdoor, construction, and industrial environments where exposure to dust, water, or extreme temperatures is likely.

Q: When should I choose this connector over other types?

A: Opt for the YA20 socket when you require high current (20A), high voltage (500V AC/DC), exceptional waterproofing, and a rugged, corrosion-resistant build-especially for demanding applications in industrial or outdoor projects.

Q: Where can I use the YA20 3Pin Female Socket?

A: This connector is versatile for use in electrical distribution panels, industrial machinery, outdoor lighting systems, construction equipment, or any setting demanding reliable, weatherproof power connections.

Q: What is the process for connecting cables to this socket?

A: Strip your chosen cable (8-12mm diameter), insert the wires into the solder terminals, and solder them securely. Ensure the silicone gasket is in place for a complete weatherproof seal before final panel mounting.

Q: What benefits does the YA20 Female Socket offer for my power system?

A: It provides a secure, IP67-sealed connection with low contact resistance (<1m), high insulation (>5000M @ 500V DC), rugged construction, and ease of maintenance or replacement, ensuring durability and reliability for your power supply needs.
