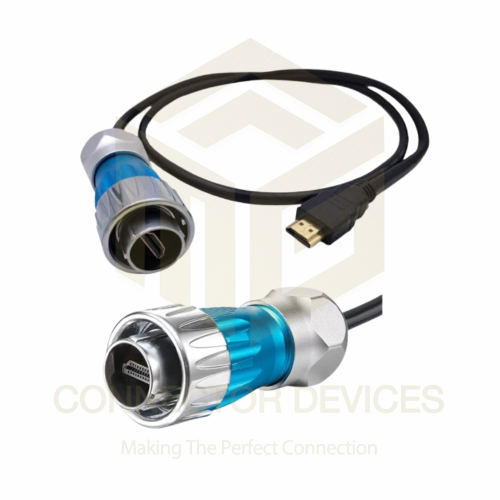

DH24 HDMI Male-Male Plug IP67 Waterproof Data Connector 1 Meter Cable

Name: DH24 HDMI Male-Male Plug IP67 Waterproof Data Connector 1 Meter Cable
Brand: CONNECTOR DEVICES
Price: 820.0 INR
Availability: InStock

820.0 INR/Piece

Get a Price/Quote

Product Details:

IP Rating IP67
Power Source Passive, Signal Only
Output HDMI Male
Input HDMI Male
Components HDMI connector, waterproof plug, PVC jacket
Operating Temperature -20C to +70C
Resolution Up to 3840 x 2160 (4K UHD)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 HDMI Male-Male Plug IP67 Waterproof Data Connector 1 Meter Cable Price And Quantity

Price 820.0 INR/Piece
Minimum Order Quantity 100 Piece

Storage Temperature -30C to +80C
Cable Material High-quality copper conductor, PVC jacket
Cable Bend Radius 50 mm
Max Data Rate 18 Gbps
Cable Shielding Triple shielded for enhanced EMI/RFI protection
Humidity Range 95% (non-condensing)
Fire Resistance Complies with IEC 60332-1
Connector Finish Gold-plated
Waterproof Seal Type Screw-on locking ring with gasket
Compliance Standard HDMI 2.0, RoHS Compliant
Plug Material Gold-plated contacts with robust plastic housing

DH24 HDMI Male-Male Plug IP67 Waterproof Data Connector 1 Meter Cable Product Specifications

Power Source Passive, Signal Only
Output HDMI Male
Dimension (L*W*H) Cable Length: 1 Meter
IP Rating IP67
Current Rating 0.5A max
Components HDMI connector, waterproof plug, PVC jacket
Rated Voltage DC 30V max
Input HDMI Male
Product Type HDMI IP67 Waterproof Data Connector Cable
Thickness Cable OD 7.5 mm
Color Black
Function Transmission of digital AV signals, waterproof protection
Display Type Digital AV
Resolution Up to 3840 x 2160 (4K UHD)
Capacity Supports 4K video transmission
Frequency Up to 340 MHz (HDMI 2.0)
Operating Temperature -20C to +70C
Weight Approx. 150 g
Features Waterproof, Dustproof, Outdoor Use, Rugged Design, Molded Connectors
Application Outdoor AV equipment, harsh environments
Size 1 Meter Length
Interface HDMI Type A (Male) to HDMI Type A (Male)
Usage Outdoor/Industrial HDMI connections

Storage Temperature -30C to +80C
Cable Material High-quality copper conductor, PVC jacket
Cable Bend Radius 50 mm
Max Data Rate 18 Gbps
Cable Shielding Triple shielded for enhanced EMI/RFI protection
Humidity Range 95% (non-condensing)
Fire Resistance Complies with IEC 60332-1
Connector Finish Gold-plated
Waterproof Seal Type Screw-on locking ring with gasket
Compliance Standard HDMI 2.0, RoHS Compliant
Plug Material Gold-plated contacts with robust plastic housing

DH24 HDMI Male-Male Plug IP67 Waterproof Data Connector 1 Meter Cable Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connection Mode:Quick bayonet connection
Wire Specification:0.15mm0.2mm/26-24AWG
Withstand voltage (AC.V)1minute:30V
Mating Cycle:> 500 times
Working Temperature:-4080C
Standard:HDMI

Designed for Demanding Outdoor Environments

Built with outdoor and industrial applications in mind, the DH24 HDMI Male-Male Plug features IP67-rated waterproofing and robust construction. Its triple-shielded cable with gold-plated connectors ensures reliable performance even in humid, dusty, or wet conditions-making it a dependable choice for harsh environments.

High-Quality Video and Audio Transmission

Enjoy crystal-clear digital audio and video with support for HDMI 2.0 standards, 18 Gbps data transfer, and 4K Ultra HD resolution. The gold-plated, low-resistance contacts and high-quality copper conductor provide stable and interference-resistant connections for seamless AV signal transmission.

Safe and Reliable Long-Term Operation

Safety is assured with compliance to RoHS and fire-resistant IEC 60332-1 standards. Designed for longevity, this cable withstands storage temperatures from -30C to +80C and a humidity range of up to 95%, ensuring consistent performance year-round.

FAQ's of DH24 HDMI Male-Male Plug IP67 Waterproof Data Connector 1 Meter Cable:

Q: How do I install the DH24 HDMI Male-Male IP67 Waterproof Data Connector cable for outdoor use?

A: To install, simply connect the HDMI Type A (male) connectors to your digital display and source device, then screw on the waterproof locking rings with the gasket to create a secure, IP67-rated seal. This ensures dustproof and waterproof protection suitable for outdoor environments.

Q: What devices are compatible with this cable, and where can it be used?

A: This cable is compatible with any equipment featuring HDMI Type A ports and is ideal for outdoor AV installations, industrial video walls, kiosks, digital signage, surveillance systems, or any harsh environment requiring reliable audio/video transmission.

Q: What benefits does the triple-shielded cable design offer?

A: The triple-shielded construction provides excellent protection against EMI and RFI interference, ensuring stable signal transmission and minimizing audio/video disruptions-especially important in industrial or high-interference settings.

Q: When should I choose an IP67-rated HDMI cable over a regular one?

A: Select an IP67-rated cable like the DH24 when you need protection against water, dust, or extreme weather, such as outdoor installations or environments exposed to moisture and debris, ensuring reliable and safe AV signal passage.

Q: How does the waterproof seal process work on this cable?

A: The cable features a screw-on locking ring with a built-in gasket. Once connected, tightening the ring compresses the gasket to form a robust, waterproof seal, preventing ingress of water or dust at the connector joint.

Q: What is the maximum resolution and data rate supported by this HDMI cable?

A: This cable supports data rates up to 18 Gbps under HDMI 2.0 standards, allowing for Ultra HD 4K video transmission up to 3840 x 2160 resolution without degradation in signal quality.

Q: What are the main advantages of using gold-plated contacts and robust plastic housing?

A: Gold-plated contacts ensure low electrical resistance and enhanced corrosion resistance, improving connectivity over time. The durable plastic housing adds mechanical strength, offering a rugged and long-lasting solution for demanding conditions.
