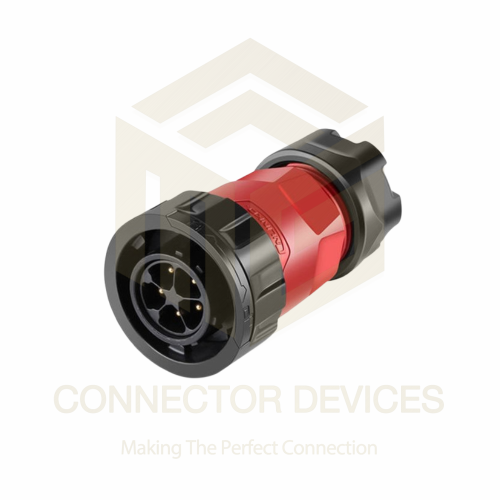

YM20 10A 5Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal

Name: YM20 10A 5Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 414.0 INR
Availability: InStock

414.0 INR/Piece

Get a Price/Quote

Product Details:

Interface 5 Pin Solder Terminal
Input Up to 5 wires (male connector)
Usage Cable to cable power connection
Components 5 solder terminals, plastic shell, sealing ring, male plug
IP Rating IP68
Output Up to 5 wires (female side, not included)
Operating Temperature -40C to +85C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM20 10A 5Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Price 414.0 INR/Piece
Minimum Order Quantity 100 Piece

Lock Mode Threaded locking
Mounting Type Cable mount (inline)
Contact Resistance 5m
Insulation Resistance >500M @ 500V DC
Pin Material Gold-plated copper alloy
Flame Retardant Grade UL94 V-0
Wire Range 0.5 - 2.5 mm2
Cable Diameter Compatibility 6-12 mm
Withstand Voltage 1500V AC/min
Number of Pins 5 pins
Shell Material High strength plastic (nylon PA66)
RoHS Compliant Yes
Mating Cycle >500 cycles
Sealing Ring Material Silicone rubber

YM20 10A 5Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Function Power Connector
Components 5 solder terminals, plastic shell, sealing ring, male plug
Usage Cable to cable power connection
Capacity 10A
Output Up to 5 wires (female side, not included)
Operating Temperature -40C to +85C
Rated Voltage 250V AC
IP Rating IP68
Interface 5 Pin Solder Terminal
Supply Voltage 250V AC max
Dimension (L*W*H) Approx. Length 82mm x Diameter 24mm
Input Up to 5 wires (male connector)
Features Waterproof, dustproof, durable, corrosion-resistant, quick lock coupling
Size YM20 series size
Power Supply Electrical
Thickness Approx. 30mm (shell thickness)
Current Rating 10A
Product Type Waterproof Power Connector
Frequency 50/60Hz
Application Outdoor, industrial, LED lighting, electrical equipment, machinery, automation systems
Weight Approx. 50g
Color Black
Power Source External Power Supply

Lock Mode Threaded locking
Mounting Type Cable mount (inline)
Contact Resistance 5m
Insulation Resistance >500M @ 500V DC
Pin Material Gold-plated copper alloy
Flame Retardant Grade UL94 V-0
Wire Range 0.5 - 2.5 mm2
Cable Diameter Compatibility 6-12 mm
Withstand Voltage 1500V AC/min
Number of Pins 5 pins
Shell Material High strength plastic (nylon PA66)
RoHS Compliant Yes
Mating Cycle >500 cycles
Sealing Ring Material Silicone rubber

YM20 10A 5Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Insertion and extraction force:4.0N Max
Screw torque:42-53 (N.m)
Temperature and humidity:-4080C; 40C, 85%RH
Contact dimension:Phi 2.7*2

Superior Protection in Demanding Conditions

Rated IP68, this connector delivers complete resistance to water and dust ingress, ensuring a reliable connection in outdoor, industrial, and harsh environments. The flame-retardant shell and corrosion-resistant materials enhance its durability, while the silicone rubber sealing ring further safeguards internal components against external hazards.

Versatile Applications and Quick Installation

Designed for cable-to-cable connections, the YM20 5-pin connector accommodates various wire sizes (0.5-2.5 mm2) and cable diameters (6-12 mm). Its threaded locking and solder terminals enable secure and rapid installation, making it well-suited for use in LED lighting, electrical equipment, machinery, and automation systems.

Reliable Performance and Longevity

With a current rating of 10A, voltage tolerance of 250V AC, and high insulation resistance (>500M at 500V DC), this male plug power connector offers low contact resistance and over 500 mating cycles. Its robust construction reduces the need for frequent maintenance and supports consistent, long-term operation.

FAQ's of YM20 10A 5Pin Male Plug IP68 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How is the YM20 10A 5Pin Waterproof Power Connector installed?

A: The YM20 connector is mounted inline (cable-to-cable) by soldering wires to its terminals, securing the shell with a threaded locking mechanism, and ensuring the silicone sealing ring is properly fitted to maintain its IP68 waterproof integrity.

Q: What types of applications is this connector suitable for?

A: This connector is ideal for outdoor, industrial, and demanding environments, including LED lighting, electrical equipment, machinery, and automation systems, where robust and waterproof power connections are essential.

Q: When should I consider using this connector over others?

A: Choose the YM20 5-pin connector when you require a highly reliable, waterproof, dustproof, and flame-retardant connection for AC power delivery (up to 10A, 250V) especially in environments exposed to moisture and dust.

Q: Where can the YM20 connector be used effectively?

A: It is suitable for outdoor settings, industrial sites, LED installations, and equipment that faces frequent exposure to rain, dust, or harsh operating conditions. Its IP68 rating ensures protection against harsh weather and immersion in water.

Q: What is the process for wiring and sealing the connector?

A: To wire the connector, strip the cable ends (0.5-2.5 mm2), solder them to the gold-plated pins, position the sealing ring for a tight fit, and use the threaded lock to securely close the shell, maintaining the waterproof seal.

Q: What are the key benefits of using the YM20 connector?

A: The key benefits include reliable power transmission, long service life, flame retardancy, exceptional waterproof and dustproof capabilities, and easy, secure installation for high-current AC applications in challenging environments.
