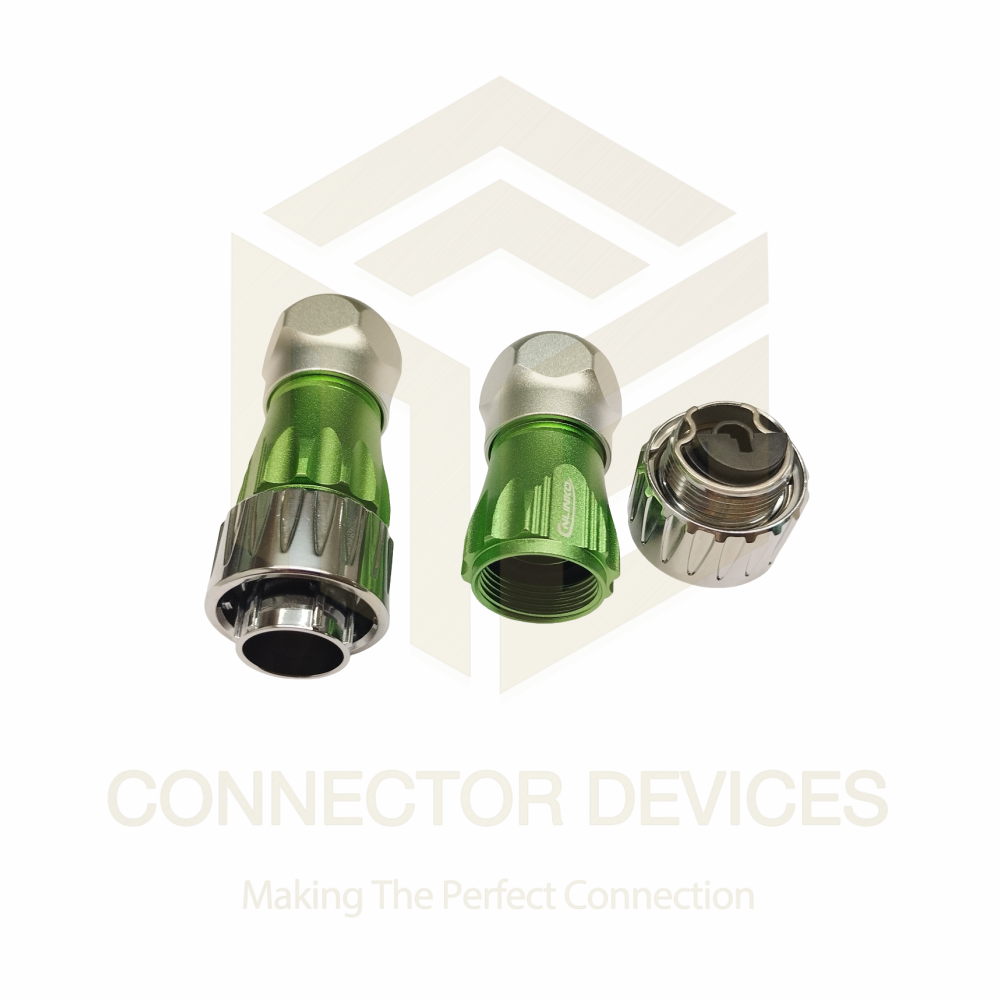

DH24 Series Male Plug Single Mode LC IP67 Waterproof Fibre Optic Connector

Name: DH24 Series Male Plug Single Mode LC IP67 Waterproof Fibre Optic Connector
Brand: CONNECTOR DEVICES
Price: 600 INR
Availability: InStock

600 INR/Piece

Get a Price/Quote

Product Details:

Power Source Passive
IP Rating IP67
Input Single Mode LC fibre optic cable
Operating Temperature -40C to +85C
Output Single Mode LC fibre optic cable
Features IP67 waterproof, dustproof, corrosion resistant, bayonet coupling, high mechanical strength
Usage Outdoor & harsh environment fibre optic connections
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 Series Male Plug Single Mode LC IP67 Waterproof Fibre Optic Connector Price And Quantity

Price 600 INR/Piece
Minimum Order Quantity 100 Piece

DH24 Series Male Plug Single Mode LC IP67 Waterproof Fibre Optic Connector Product Specifications

Power Source Passive
Rated Voltage N/A (Optical device, not electrical power rated)
Capacity 1 LC simplex channel
Color Black
Size DH24 Series standard dimension (approx. 24mm shell dia.)
Application Industrial, Telecom, Outdoor Data Transmission, CCTV, FTTX
IP Rating IP67
Input Single Mode LC fibre optic cable
Weight Approx. 65g
Function High-performance, secure fibre optic connection for telecommunication or data transmission.
Features IP67 waterproof, dustproof, corrosion resistant, bayonet coupling, high mechanical strength
Operating Temperature -40C to +85C
Output Single Mode LC fibre optic cable
Usage Outdoor & harsh environment fibre optic connections
Power Supply Not required (passive device)
Interface LC fibre optic / DH24 Series Male Plug
Components Male plug shell, crimping mechanism, sealing ring, LC adapter
Product Type Waterproof Fibre Optic Connector
Dimension (L*W*H) Approx. 94mm (L) x 24mm (dia.)

Return Loss 50dB
Number of Fibres 1 (Simplex)
Sealing Method O-ring and gasket-sealed
Coupling Mechanism Quick bayonet lock
Material High strength thermoplastic/metal alloy shell
Mating Durability >=500 cycles
Insertion Loss 0.3dB (typical)
Flame Retardant Level UL94-V0
Ferrule Material Zirconia ceramic
Cable Diameter Range 4.0mm - 7.0mm supported

Product Description

Presenting the DH24 Series Male Plug Single Mode LC IP67 Waterproof Fibre Optic Connector, a formidable blend of kingly durability and noble performance at an unbeatable price. Crafted for affordable excellence, this connector boasts a single fibre (simplex) zirconia ceramic ferrule, minimal 0.3dB insertion loss, and 50dB return loss. Its rugged thermoplastic and metal alloy shell, O-ring sealing, and quick bayonet lock guarantee a strong hold in harsh conditions. Perfectly suited for industrial, telecom, and outdoor applications, its steadfast construction ensures long-lasting, secure fibre connections even in the most challenging environments.

Versatile Application & Simple Operation

The DH24 Series Male Plug Single Mode LC IP67 Connector is used as a secure outdoor fibre optic interface for CCTV, FTTX, telecom, and data transmission. It is used for connecting single mode LC fibre optic cables in demanding, harsh environments. To use, simply align, insert, and lock the bayonet coupling for a reliable, waterproof seal. Ideal for both industrial and telecommunication installations where robust and stable connections are crucial.

Availability, Fast Delivery & Domestic Distribution

Samples for the DH24 Series Male Plug Single Mode LC IP67 Connector are available upon request. With stock ready and streamlined logistics, most orders are dispatched promptly to ensure swift delivery times. Main domestic markets across India benefit from our extensive distribution network, making quick replenishment possible. Whether you are a distributor, importer, or manufacturer, you can expect top-notch service and prompt delivery every time.

FAQ's of DH24 Series Male Plug Single Mode LC IP67 Waterproof Fibre Optic Connector:

Q: How does the DH24 Series connector ensure water and dust protection?

A: The connector achieves IP67 waterproof and dustproof standards through precise O-ring and gasket sealing, combined with a secure bayonet coupling mechanism, keeping fibre connections safe even in harsh environments.

Q: What is the main benefit of using zirconia ceramic for the ferrule?

A: Zirconia ceramic offers outstanding alignment and low insertion loss, resulting in stable optical performance and longevity for your communication lines.

Q: Where is this connector typically used?

A: It is commonly used in outdoor and industrial settings including telecom networks, FTTX deployments, CCTV installations, and any environment requiring resilient fibre optic links.

Q: What is the process for connecting the DH24 Series plug?

A: Simply align the LC connector, insert it into the female interface, and turn the bayonet lock to secure. This quick and user-friendly process provides a firm, waterproof seal.

Q: When can I expect delivery after ordering?

A: With stock ready and efficient logistics, most orders are dispatched quickly for prompt delivery across India, ensuring minimal downtime for your projects.

Q: What are the usage advantages of this connector in harsh environments?

A: The connector is flame retardant (UL94-V0), withstands extreme temperatures (-40C to +85C), and endures over 500 mating cycles, making it reliable for long-term outdoor and industrial use.
