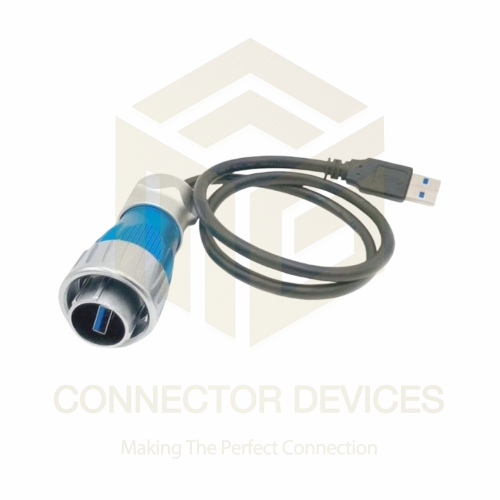

DH24 Series USB3 Male-Male Plug IP67 Waterproof Data Connector Bayonet Metal Shell 0.5M Cable

Name: DH24 Series USB3 Male-Male Plug IP67 Waterproof Data Connector Bayonet Metal Shell 0.5M Cable
Brand: CONNECTOR DEVICES
Price: 820.0 INR
Availability: InStock

820.0 INR/Piece

Get a Price/Quote

Product Details:

Operating Temperature -25C to +80C
Charging Voltage 5V DC
Power Supply Bus Powered via USB
Input USB3.0 Male Connector
Output USB3.0 Male Connector
Power Source USB Bus Powered
IP Rating IP67 Waterproof
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

DH24 Series USB3 Male-Male Plug IP67 Waterproof Data Connector Bayonet Metal Shell 0.5M Cable Price And Quantity

Minimum Order Quantity 100 Piece
Price 820.0 INR/Piece

Endurance >1500 Mating Cycles
Contact Material Gold Plated (Corrosion Resistant)
Seal Material Silicon Rubber
Cable Jacket Material PVC (Flame Retardant)
RoHS Compliance Yes
Compatible Standard USB 3.0, USB 2.0 Backward Compatible
Cable Shielding Double Shielded for EMI/RFI Protection
Shell Material Nickel Plated Zinc Alloy
Mounting Type Cable to Cable/Device
Connector Style Bayonet Lock with O-Ring Seal
Connector Insertion/Withdrawal Force 10~30N

DH24 Series USB3 Male-Male Plug IP67 Waterproof Data Connector Bayonet Metal Shell 0.5M Cable Product Specifications

Dimension (L*W*H) Cable 0.5m Length, Connector Diameter 24mm
Power Source USB Bus Powered
Weight Approx. 90g
Frequency Superspeed USB 5 Gbps
Thickness 7.4mm (Cable Diameter)
Features Bayonet Coupling, Metal Shell, Dustproof, Shock Resistant, Vibration Resistant, Plug & Play
Usage USB3.0 Data Connection in Harsh, Outdoor, or Industrial Environments
Application Industrial Automation, Outdoor Devices, Harsh Environment Electronics, Marine Equipment
Components USB3.0 Cable with Dual Male Connectors, Metal Bayonet Shell
Interface USB3.0 Type A Male-Male
IP Rating IP67 Waterproof
Current Rating 1.8A Max (USB3.0 Standard)
Charging Voltage 5V DC
Size Cable Length: 0.5 Meters
Color Black / Metallic Grey
Supply Voltage 5V (USB Standard)
Operating Temperature -25C to +80C
Rated Voltage 30V DC
Input USB3.0 Male Connector
Output USB3.0 Male Connector
Power Supply Bus Powered via USB
Capacity Supports up to 5Gbps Data Speed (USB3.0 Standard)
Function Data Transmission and Power Supply
Product Type IP67 Waterproof Data Connector with USB3.0 Cable

Endurance >1500 Mating Cycles
Contact Material Gold Plated (Corrosion Resistant)
Seal Material Silicon Rubber
Cable Jacket Material PVC (Flame Retardant)
RoHS Compliance Yes
Compatible Standard USB 3.0, USB 2.0 Backward Compatible
Cable Shielding Double Shielded for EMI/RFI Protection
Shell Material Nickel Plated Zinc Alloy
Mounting Type Cable to Cable/Device
Connector Style Bayonet Lock with O-Ring Seal
Connector Insertion/Withdrawal Force 10~30N

DH24 Series USB3 Male-Male Plug IP67 Waterproof Data Connector Bayonet Metal Shell 0.5M Cable Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting Mode:Quickly bayonet connect
Cable Specification:0.15mm2 0.2mm2 /2624AWG
Diameter Range:5.5mm 7mm
Insulation Resistance:> 500MOhm
Durability:> 500 mating & unmating cycles
Temperature Rating:-40C80C
Standard:USB 3

Reliable Performance in Extreme Conditions

Designed for harsh environments, the DH24 Series connector features a durable metal shell with a bayonet locking system and silicon rubber seals. With an IP67 rating, it is dustproof, waterproof, shock- and vibration-resistant, and operates in temperatures from -25C to +80C, making it suitable for industrial, outdoor, and marine applications.

Superior Connectivity and Compatibility

Equipped with double-shielded cabling and gold-plated contacts, this connector ensures stable data transmission with minimal interference. It supports USB 3.0 SuperSpeed at up to 5Gbps, is backward compatible with USB 2.0, and provides a robust plug-and-play solution for automation equipment and rugged electronics.

Easy Installation and Lasting Durability

The bayonet lock with O-ring seal promotes easy and secure connections, resisting moisture and contaminants. With endurance rated at more than 1500 mating cycles, a flame-retardant PVC cable jacket, and RoHS compliance, this connector delivers safe and reliable performance over the long term.

FAQ's of DH24 Series USB3 Male-Male Plug IP67 Waterproof Data Connector Bayonet Metal Shell 0.5M Cable:

Q: How is the DH24 Series USB3 Male-Male Plug connector installed?

A: The DH24 Series connector features a bayonet locking mechanism for quick and secure installation. Simply align the connectors, push them together, and twist the bayonet lock to ensure a tight, waterproof seal, aided by the integrated O-ring.

Q: What environments is this USB3 connector suitable for?

A: With an IP67 waterproof rating and a rugged nickel-plated metal shell, the DH24 Series is perfect for industrial automation, outdoor devices, marine equipment, and any harsh or wet environments where reliable data transmission is critical.

Q: What are the main benefits of using this cable in industrial applications?

A: The main advantages include high-speed USB 3.0 data transfer up to 5Gbps, reliable power supply, resistance to water, dust, shock, and vibration, as well as corrosion-resistant gold-plated contacts and durable double-shielded cabling for enhanced EMI/RFI protection.

Q: When should this connector be used over standard USB cables?

A: This connector is ideal when durability and environmental resistance are essential, particularly in settings exposed to moisture, dust, vibration, or extreme temperatures, where standard USB cables may fail.

Q: Where can the DH24 Series connector be utilized effectively?

A: It can be effectively used in outdoor electronic installations, marine systems, automation control panels, factory floors, and other locations that demand both waterproofing and reliable high-speed data connectivity.

Q: What is the process for maintaining the connector's performance over time?

A: For optimal performance, ensure connectors remain clean and free from debris, regularly check the O-ring for wear, and reconnect the bayonet lock firmly to maintain the IP67 seal after any use or servicing.
