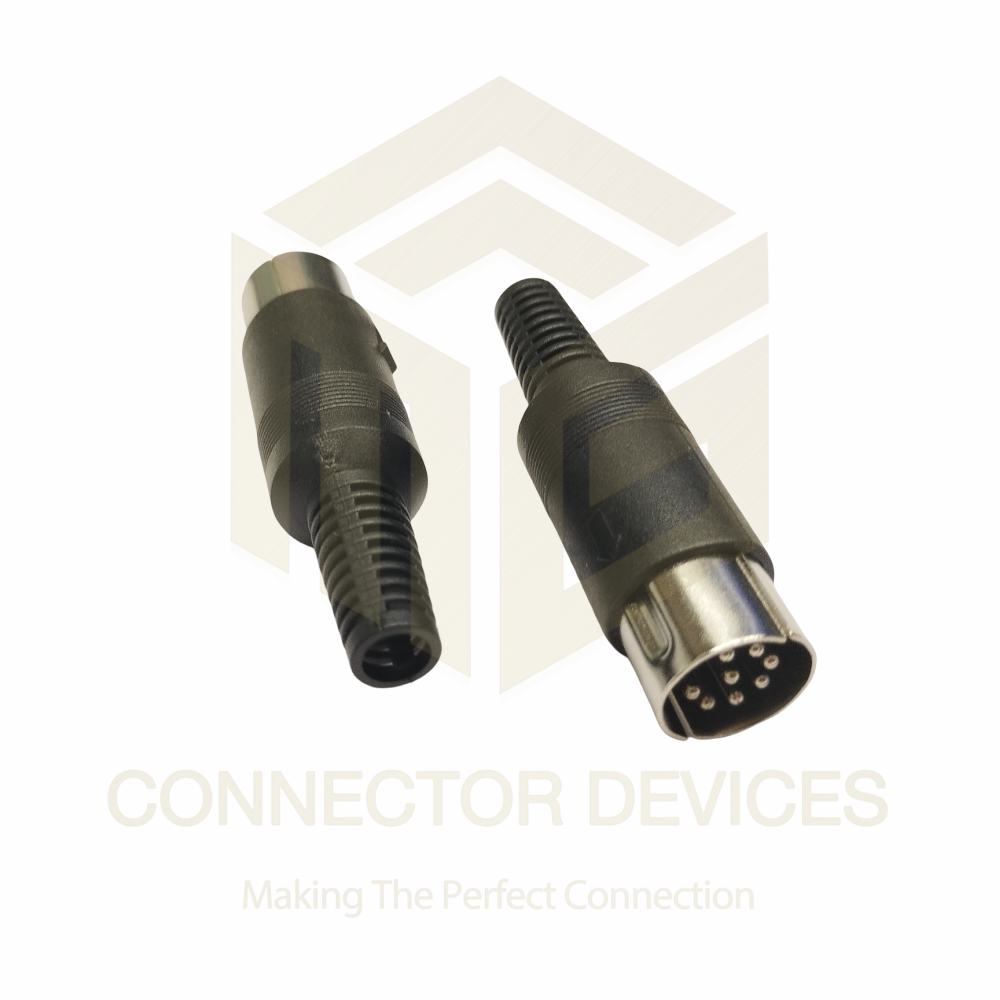

Din Male Connector

Get a Price/Quote

Product Details:

Temperature -20C to +80C
Pairs Single
Application Audio/Video Signal Transmission, Data Electronics, MIDI Interface
Material Nickel-Plated Brass, Gold-Plated Pins
Connector DIN Male
Male End Type Standard DIN Male
Female End Type DIN Female (Optional)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Din Male Connector Price And Quantity

Minimum Order Quantity 100 Piece

Din Male Connector Product Specifications

Application Audio/Video Signal Transmission, Data Electronics, MIDI Interface
Sheild Yes
Connector DIN Male
Material Nickel-Plated Brass, Gold-Plated Pins
Color Black
Insulation PVC
Number of Conductor 5
Jacket Material PVC
Length 1.5 Meter
Wire Gauge 24 AWG
Cable Length 1.5 Meter
Male End Type Standard DIN Male
Temperature -20C to +80C
Outer Diameter 5 mm
Connector Type 5-Pin Male DIN
Capacity Low Voltage Signal
Flame Resistance Level UL 94V-0
Female End Type DIN Female (Optional)
Cable Type Shielded Audio/Data Cable
Voltage Rating 125V AC/DC
Pairs Single

Contact Resistance 10 m
Durability >500 Mating Cycles
Current Rating 2A Max
Mounting Type Cable Mount
Standards RoHS Compliant
Dielectric Withstanding Voltage 1000V AC for 1 min
Termination Solder
Pin Plating Gold over Nickel
Operating Humidity Up to 95% RH non-condensing
Insulation Resistance 1000 M (at 500V DC)
Packing Type Poly Bag/Box

Product Description

Explore the formidable DIN Male Connector, engineered for inestimable conductivity and premier signal integrity. Pick yours now in our limited-time promotion and experience a robust solution designed for audio/video transmission, data electronics, and MIDI interfaces. With an impressive current rating of 2A max, shielded gold-over-nickel plated pins, and RoHS compliance, this connector ensures durability (>500 mating cycles) and flame resistance (UL 94V-0). Cable mounts and solder terminations offer versatility, while a 1.5-meter black PVC-insulated cable emphasizes flexibility and reliability for any low voltage signal project. Ideal for discerning distributors and manufacturers across India.

Application Highlights and Competitive Advantages

The DIN Male Connector is tailored for audio, video, and MIDI signal transmission in both professional and industrial settings. Its formidable shielded construction and gold-plated pins make it ideal for data electronics and audio-visual systems. Competitive advantages encompass high durability (>500 mating cycles), exceptional insulation resistance, and superior flame retardancy. Adopt this connector to enhance the reliability and performance of your signal flow, ensuring minimal contact resistance and robust operation across multiple demanding environments.

Certifications, Payment, and Supply Logistics

This premium DIN Male Connector is RoHS compliant and achieves UL 94V-0 flame resistance, reflecting its safety and quality standards. Our streamlined dispatching process ensures rapid packaging and delivery across India, with flexible payment terms available for your convenience. With strong supply ability, our exporters, distributors, and wholesalers maintain consistent stock levels, providing peace of mind for ongoing projects or large-scale requirements. Count on our reliable packaging options-poly bag or box-to secure your order.

FAQ's of Din Male Connector:

Q: How can I use the DIN Male Connector for my audio or data transmission needs?

A: The DIN Male Connector is designed for low voltage signal transmission across audio, video, data electronics, and MIDI interfaces. Simply solder the connector to your desired cables, ensuring compatibility with standard 5-pin DIN configurations for reliable and robust signal connections.

Q: What are the key benefits of the gold-over-nickel plated pins in this connector?

A: Gold-over-nickel plated pins offer superior conductivity, corrosion resistance, and minimize signal loss, ensuring stable performance and extended lifespan during repeated use, especially important for professional audio and data applications.

Q: Where can I purchase and how is the product packaged?

A: You can purchase this DIN Male Connector through authorized distributors, exporters, importers, and wholesalers in India. The product is carefully packaged in either poly bags or boxes, safeguarding it during storage and transportation.

Q: What certifications does this connector hold and why are they important?

A: This connector is RoHS compliant and UL 94V-0 flame resistant, ensuring it meets strict environmental and safety standards. These certifications provide assurance of its premium quality and suitability for demanding electronic applications.

Q: What is the process for ordering and what payment terms are available?

A: Ordering this connector is streamlined through our reliable distribution network. Flexible payment terms are available, including options for bulk purchasing, ensuring a smooth and efficient procurement experience for both small and large orders.
