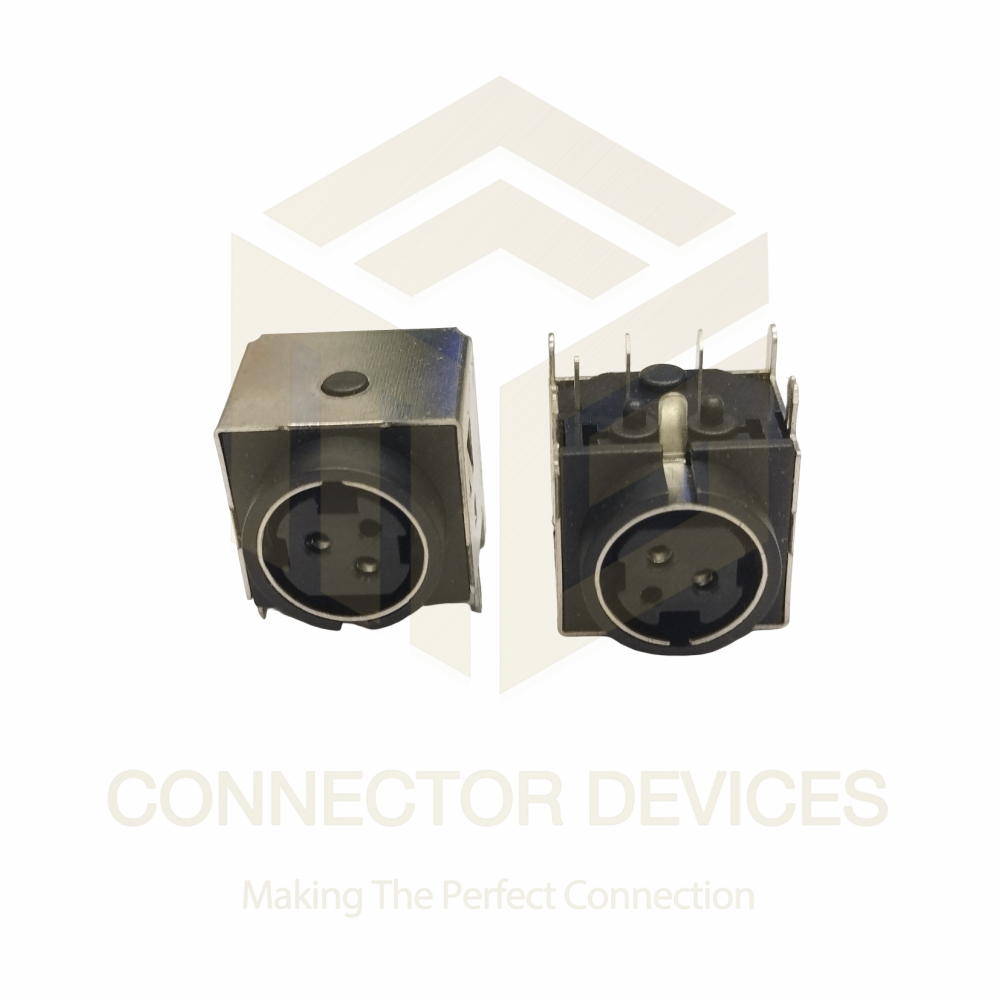

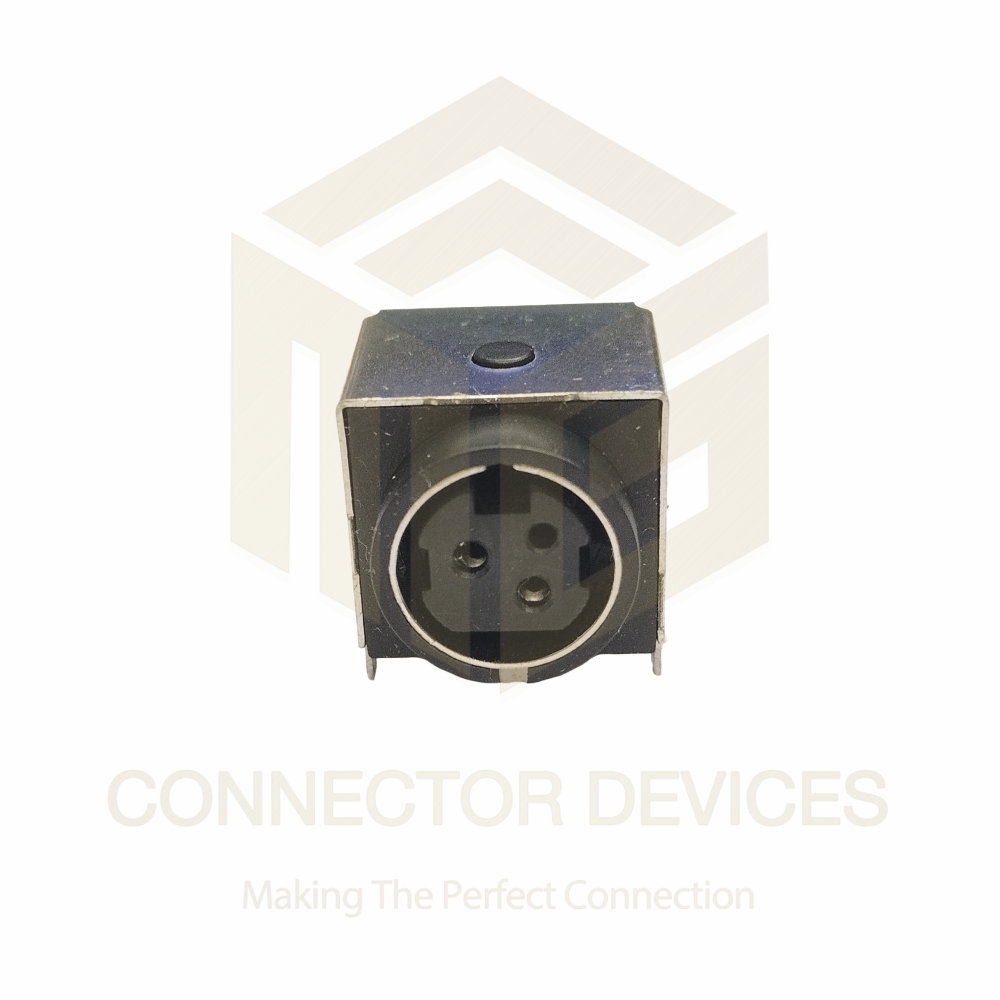

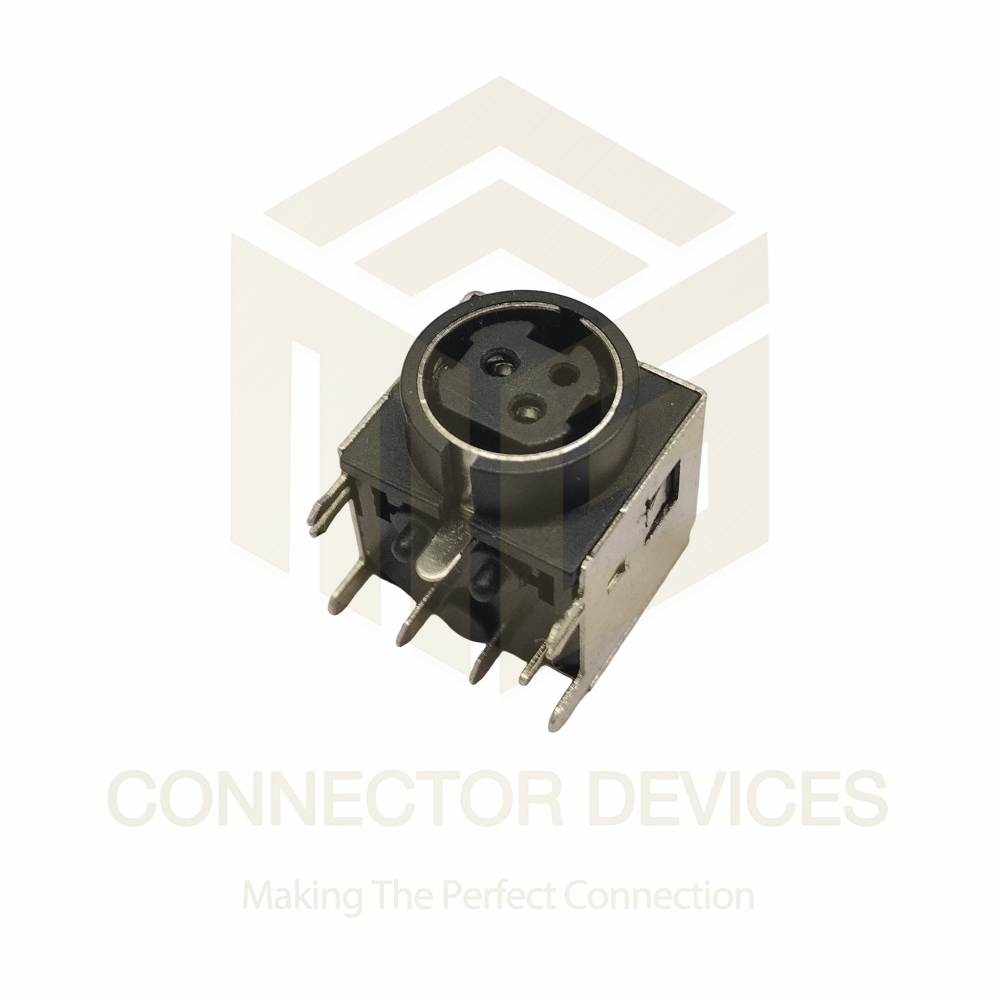

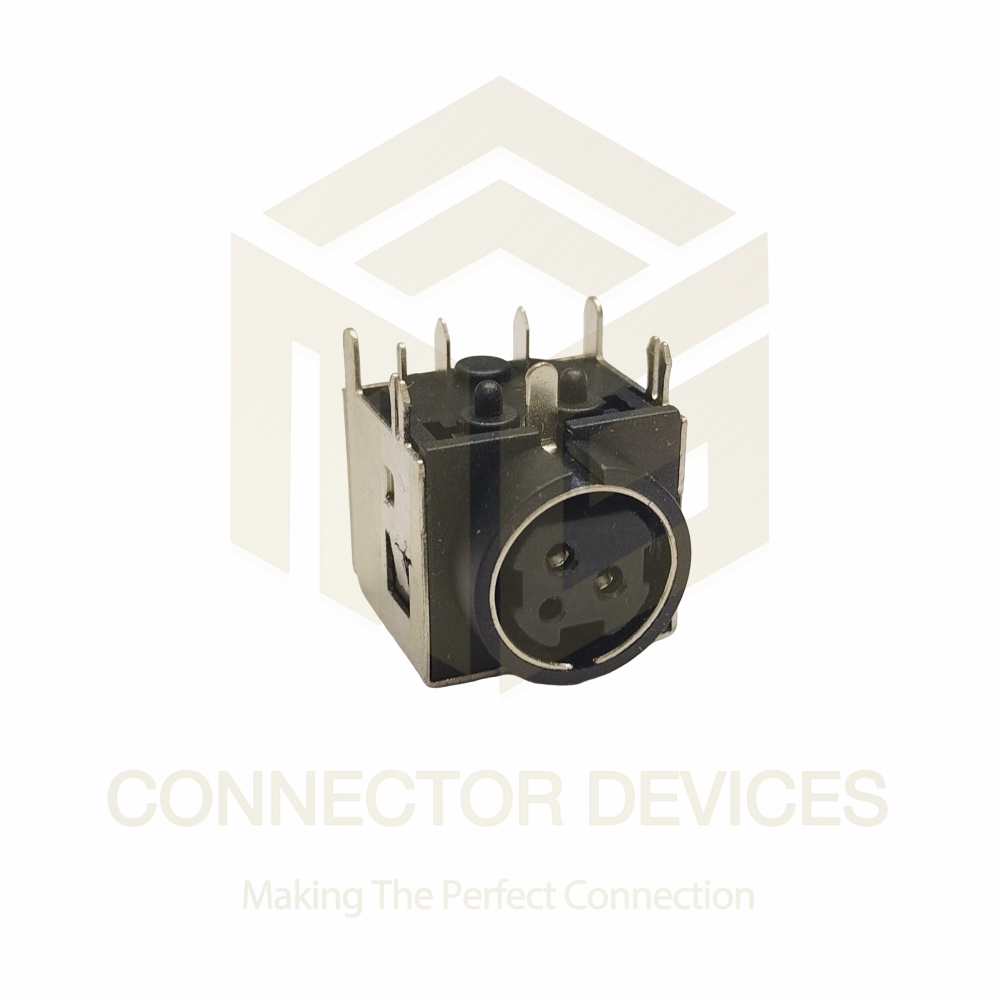

Power Din Female Right angle

Get a Price/Quote

Product Details:

Voltage Rating up to 250V AC/DC
Temperature -20C to +70C
Connector DIN Female, Right Angle
Material Plastic & Metal
Female End Type DIN Female Right Angle
Connector Type DIN
Application Power supply, audio, instrumentation
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Power Din Female Right angle Price And Quantity

Minimum Order Quantity 100 Piece

Power Din Female Right angle Product Specifications

Connector DIN Female, Right Angle
Outer Diameter 5.5 mm
Male End Type Optional / not included
Insulation PVC
Pairs 2
Sheild Yes, overall foil shield
Voltage Rating up to 250V AC/DC
Temperature -20C to +70C
Color Black
Capacity up to 5A
Cable Type Shielded multi-core
Wire Gauge 22 AWG
Flame Resistance Level UL94V-0
Jacket Material PVC
Application Power supply, audio, instrumentation
Length Custom available
Number of Conductor 4
Material Plastic & Metal
Female End Type DIN Female Right Angle
Cable Length Available in 1m, 2m, 3m, custom
Connector Type DIN

Termination Type Solder
Contact Plating Nickel plated
Pin Configuration 4-pin
Contact Resistance <30 m
Operating Humidity 20% ~ 85% RH
Insulation Resistance >1000 M @ 500V DC
Durability 500 mating cycles
Mounting Orientation Right angle
Current Rating 5A max
Standards Compliance RoHS compliant

Product Description

Discover unmatched quality with our top-rated Power DIN Female Right Angle connector, meticulously designed for imposing performance in demanding environments. Featuring instant checkout, this featured product ensures excellent power supply connections with a robust 4-pin nickel-plated configuration and an incomparable 5A max current rating. Its durability, up to 500 mating cycles, and RoHS compliance make it ideal for audio, instrumentation, and power supply applications. Shielded multi-core construction, overall foil shield, and flame resistance (UL94V-0) optimally safeguard your system. Choose custom cable lengths, superior insulation, and immediate availability from India's leading distributor, exporter, importer, manufacturer, trader, and wholesaler.

Versatile Applications and Unbeatable Advantages

The Power DIN Female Right Angle connector is engineered for diverse applications including audio, power supply, and precision instrumentation. Its primary competitive advantages lie in its robust shielded design, high insulation resistance (>1000 M), and low contact resistance, ensuring reliable transmission and minimal power loss. With excellent build quality, compliance with RoHS standards, and multiple cable length options, this connector stands out for safety, durability, and flexibility-making it an outstanding choice for professionals seeking reliability and performance.

Global Export Market and Packaging Excellence

Shipping from premium FOB ports in India, this product enjoys strong demand across international markets in Asia, Europe, and beyond, in addition to widespread distribution across the Indian domestic market. Each Power DIN Female Right Angle connector is packaged securely, with stock ready for immediate dispatch and cost-effective outlay options. Our efficient supply chain ensures that orders are fulfilled swiftly to meet diverse project deadlines, supporting both bulk and custom requirements with professional care and reliability.

FAQ's of Power Din Female Right angle:

Q: How do I use the Power DIN Female Right Angle connector for power and audio applications?

A: To use the Power DIN Female Right Angle connector, solder the wires to the respective terminals using the 4-pin configuration. It is suitable for both power supply and audio instrumentation, thanks to its excellent shielding and current rating.

Q: What are the primary advantages of this connector over alternatives?

A: This connector offers imposing build quality, RoHS compliance, excellent shielding, and flame-resistant PVC insulation. Its high durability and low contact resistance ensure reliable operation even in demanding environments.

Q: Where can I purchase this connector and are custom cable lengths available?

A: You can instantly check out this connector from leading Indian distributors, exporters, manufacturers, and wholesalers. Custom cable lengths such as 1m, 2m, 3m, or tailored options are available to suit your specific requirements.

Q: What is the process for ordering and receiving stock-ready connectors?

A: Once your order is placed, the connectors are securely packaged and dispatched from our stock-ready inventory, ensuring rapid and safe delivery both in domestic and main export markets.

Q: What benefits does the overall foil shield provide in this DIN connector?

A: The overall foil shield minimizes electromagnetic interference, ensuring signal integrity and dependable operation in audio, instrumentation, and power applications.
