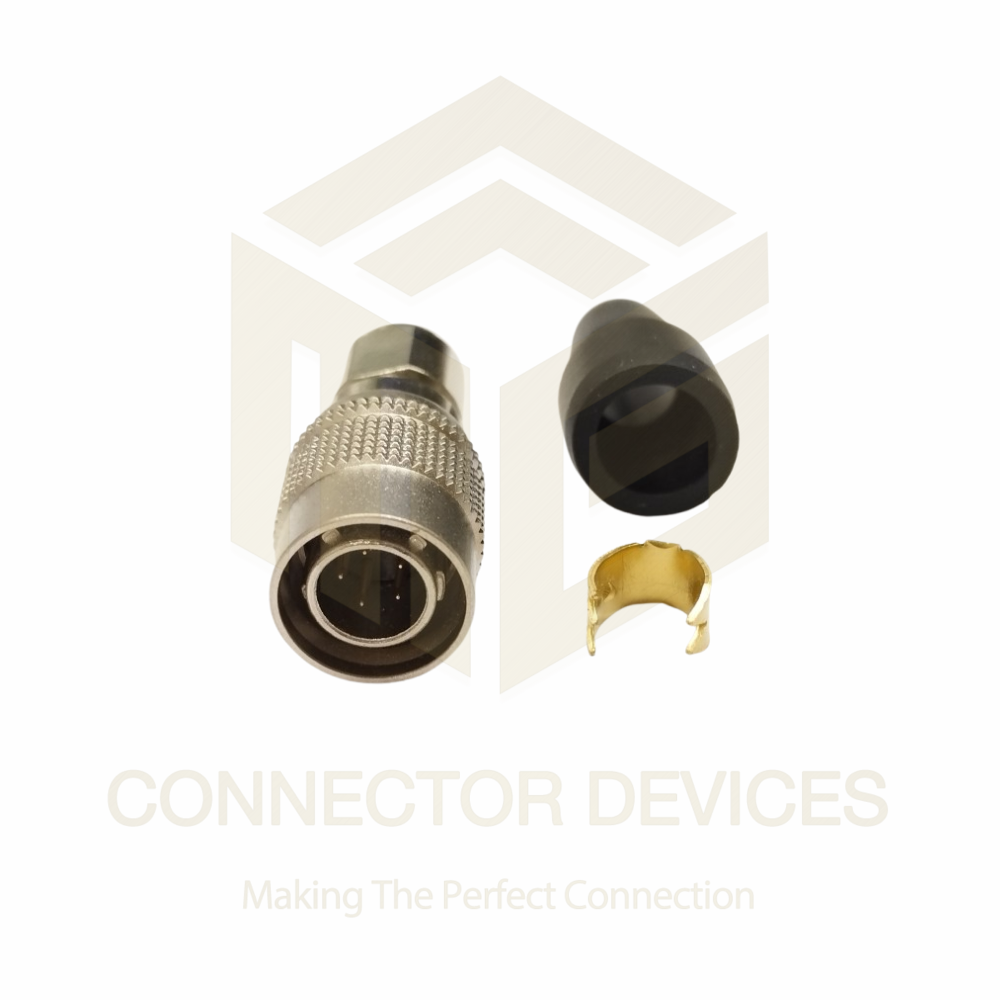

HIROSE HR10A-7P-5P MALE PLUG

Get a Price/Quote

Product Details:

Components Shell, Insulator, Contacts
Output Pin Interface
IP Rating IP40
Usage Signal and Power Transmission
Interface Solder or Crimp Cable Connection
Input Pin Interface
Operating Temperature -25C to +85C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HIROSE HR10A-7P-5P MALE PLUG Price And Quantity

Minimum Order Quantity 100 Piece

HIROSE HR10A-7P-5P MALE PLUG Product Specifications

Output Pin Interface
Capacity 5 Pin Connections
Weight Approx. 8g
Input Pin Interface
Size HR10A-7P
Interface Solder or Crimp Cable Connection
Rated Voltage 100V AC, 140V DC
Application Industrial, Measurement, Audio Equipment, Automation
Color Silver (Metallic)
Supply Voltage Not applicable (Passive Device)
Components Shell, Insulator, Contacts
Dimension (L*W*H) Length ~39mm, Diameter 12mm (approximate)
Usage Signal and Power Transmission
Power Supply Not applicable (Passive Device)
Features Compact size, Reliable connection, Push-pull locking mechanism
Operating Temperature -25C to +85C
IP Rating IP40
Current Rating 2A
Function Circular Connector for Cable Mounting
Product Type Male Plug Circular Connector

Contact Material Brass with Gold Plating
Shell Material Nickel-plated Brass
Termination Method Solder
Cable Diameter Accepted 3.5mm to 6mm
Locking Mechanism Push-Pull Self-Locking
Gender Male
Contact Resistance 5 m max.
Flammability Rating UL 94V-0
Connector Type Circular Modular
Number of Positions 5 Pin
Series HR10A
Insulation Resistance 1000 M min.
Mounting Type Cable Mount Plug

Product Description

Brand Name - Connector Devices

Model Number: HR10A-7P-5P MALE PLUG
Type : Adapter
Application : Power, Military communication solutions, automotive
Gender : Male and Female
Product name : Hirose connector
Colour : Silver
Material : Alloy
IP rate:IP50
Endurance (Shell):5000 mating cycles
Insulator:PPSPin:2.4,6,7,8,10,12,20 pins

Reliable 5-Pin Connectivity for Versatile Applications

Engineered for signal and low-power transmission, the HIROSE HR10A-7P-5P plug excels in industrial, measurement, audio, and automation environments. Its five-pin modular design offers flexibility and reliability, making integration into new or existing systems straightforward.

Durable Construction with Secure Locking

Built with a nickel-plated brass shell and gold-plated brass contacts, the connector ensures durability and corrosion resistance. The push-pull self-locking mechanism allows for quick, reliable connections while preventing accidental disconnection in dynamic setups.

Compact, Safe, and Easy to Assemble

Weighing approximately 8g and measuring only 39mm in length, this connector is compact and lightweight. Its UL 94V-0 flame-retardant rating promotes safer installations, while solder termination promotes a robust and consistent electrical connection for cables between 3.5mm and 6mm.

FAQ's of HIROSE HR10A-7P-5P MALE PLUG:

Q: How do I connect the HIROSE HR10A-7P-5P Male Plug to my device?

A: You can connect the HIROSE HR10A-7P-5P by soldering cables (3.5mm to 6mm diameter) to the internal contact pins, ensuring the appropriate wirings. After soldering, insert the cable and lock the connector onto its mating part using the push-pull self-locking system.

Q: What are the primary benefits of its push-pull self-locking mechanism?

A: The push-pull self-locking mechanism provides quick and secure mating and unmating, reducing the risk of accidental disconnections. This feature is especially beneficial in applications where reliability and ease of use are critical, such as in measurement or automation equipment.

Q: When should I use this connector in my project?

A: Choose the HIROSE HR10A-7P-5P plug when you require a compact, robust, and reliable connector for low-voltage (up to 140V DC, 100V AC), moderate current (2A) signal or power transmission in environments where secure locking and easy assembly are crucial.

Q: Where can the HIROSE HR10A-7P-5P connector be sourced in India?

A: This connector is available through various channels in India, including authorized distributors, exporters, importers, manufacturers, traders, and wholesalers specializing in industrial or electronic components.

Q: What is the recommended process for terminating cables with this connector?

A: Prepare the cable (3.5mm to 6mm diameter), strip insulation as needed, solder each wire to the appropriate pin, then assemble the cable into the connector housing. Ensure proper strain relief for reliable performance.

Q: What safety and durability features does this plug provide?

A: The HIROSE HR10A-7P-5P plug features a nickel-plated brass shell for durability, UL 94V-0 flame-retardant construction, IP40 ingress protection, and gold-plated contacts for excellent signal integrity and corrosion resistance.
