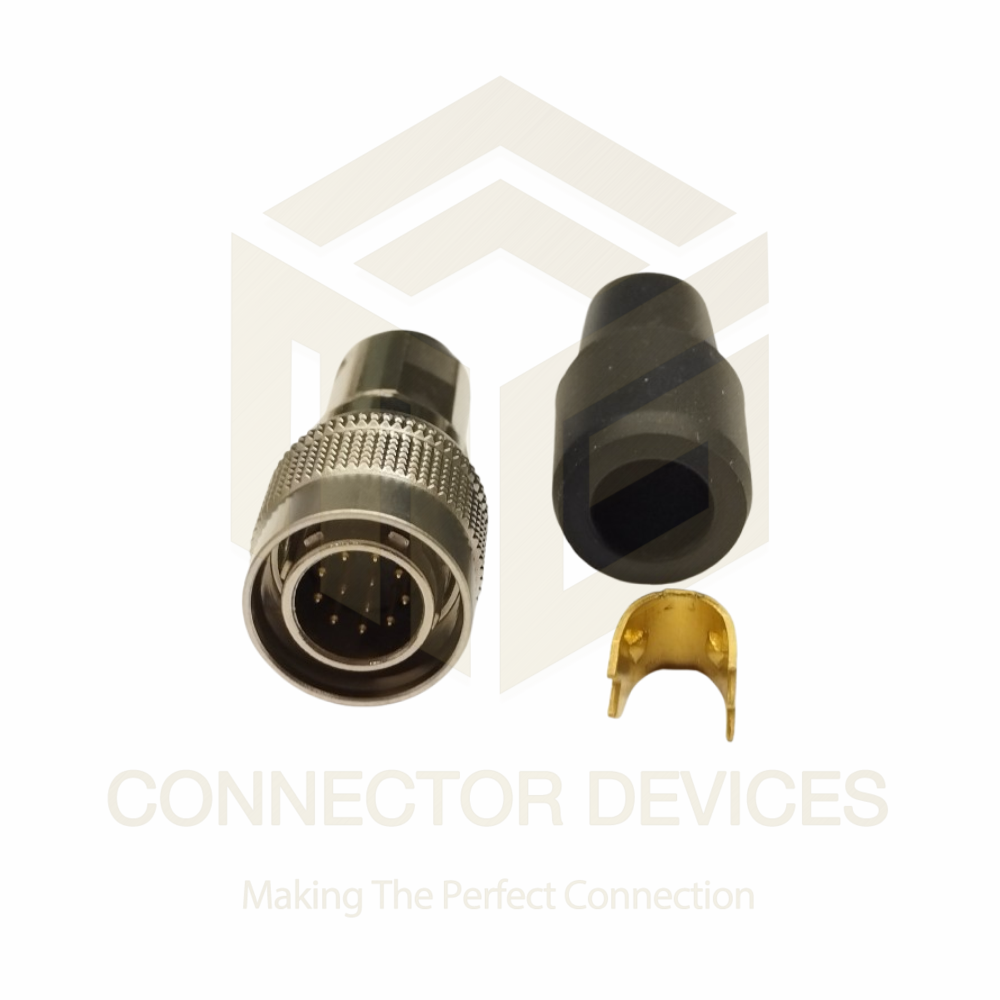

HR10A-7P-12P MALE PLUG

Get a Price/Quote

Product Details:

Operating Temperature -25C to +85C
Components Contact pins, shell, insulator, locking mechanism
Features Compact, push-pull lock, easy mating/unmating, high density, robust design
Output Multi-pin output via circular connector
Usage Cable-to-panel or cable-to-cable connections
Interface HR10A-7P-12P keyed push-pull
Input Multi-pin input via circular connector
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HR10A-7P-12P MALE PLUG Price And Quantity

Minimum Order Quantity 100 Piece

HR10A-7P-12P MALE PLUG Product Specifications

Features Compact, push-pull lock, easy mating/unmating, high density, robust design
Components Contact pins, shell, insulator, locking mechanism
Dimension (L*W*H) Approx. 37mm length x 13mm max outer diameter
Output Multi-pin output via circular connector
Current Rating 2A per contact
Operating Temperature -25C to +85C
Usage Cable-to-panel or cable-to-cable connections
Product Type Male Plug Circular Connector
Function Electrical connector for signal transmission
Application Industrial, Electronic Equipment, Medical, Audio, Instrumentation, Robotics
Color Silver / Metallic
Supply Voltage Up to 100V AC, 140V DC
Weight Approximately 7g
Rated Voltage 100V AC, 140V DC
Interface HR10A-7P-12P keyed push-pull
Capacity 12 contacts/pins
Size HR10A Series, 7mm diameter
IP Rating IP40
Input Multi-pin input via circular connector

Contact Resistance 30m max
Termination Method Solder
Contact Plating Gold-plated bronze
Cable Diameter Compatibility 3-6mm
Shell Material Aluminum alloy, nickel-plated
Insulation Resistance 1000M min (at 500V DC)

Product Description

Brand Name - Connector Devices

Model Number:HR10A-7P-12P MALE PLUG
Type : Adapter
Application : Power, Military communication solutions, automotive
Gender : Male and Female
Product name : Hirose connector
Colour : Silver
Material : Alloy
IP rate:IP50
Endurance (Shell):5000 mating cycles
Insulator:PPSPin:2.4,6,7,8,10,12,20 pins

Superior Signal Transmission

The HR10A-7P-12P is engineered to deliver stable and efficient signal transmission, leveraging gold-plated bronze contact pins. This ensures minimal contact resistance and excellent conductivity, making it highly suitable for precision applications such as audio interfaces, instrumentation, and medical equipment.

Durable & Reliable Construction

Built with a nickel-plated aluminum alloy shell, this circular connector offers robust protection against wear and minor impacts. Its push-pull locking feature enhances secure engagement, preventing accidental disconnection while still enabling easy operation during installation or maintenance.

Versatile Application & Compatibility

Designed to accommodate cable diameters from 3-6mm, the HR10A-7P-12P supports both cable-to-cable and cable-to-panel connections. Its high-density 12-pin configuration and compact form factor (37mm x 13mm) make it adaptable for a diverse range of electronics, robotics, industrial, and audio systems.

FAQ's of HR10A-7P-12P MALE PLUG:

Q: How do I connect and disconnect the HR10A-7P-12P Male Plug securely?

A: The HR10A-7P-12P uses a keyed push-pull locking mechanism. To connect, align the keying, push the plug into its counterpart until it clicks. To unplug, simply pull back on the connector's outer shell, releasing the lock for safe and easy disconnection.

Q: What cable sizes are compatible with this connector model?

A: This connector is compatible with cables that have outer diameters ranging from 3mm to 6mm, ensuring versatility for a wide variety of wiring needs in industrial and electronic environments.

Q: Where is the HR10A-7P-12P Male Plug typically used?

A: It's used in industrial automation, electronic equipment, medical devices, audio systems, robotics, and instrumentation-anywhere robust, reliable signal transmission for multipin connections is required.

Q: What are the benefits of gold-plated bronze contacts in this plug?

A: Gold-plated bronze contacts provide excellent corrosion resistance, lower contact resistance (max 30m), and ensure consistent, high-quality signal transmission, especially vital in precision and low-voltage applications.

Q: When should I consider using this high-density circular connector?

A: Consider the HR10A-7P-12P when you require multiple signals or power lines in a compact space with robust reliability, easy handling, and standardized mating (up to 12 pins, push-pull locking).

Q: What is the process for terminating wires in the HR10A-7P-12P connector?

A: The connector utilizes a solder termination method. Stripped wire ends are carefully soldered to the corresponding contact pins, ensuring both electrical integrity and secure mechanical bonding.

Q: What is the maximum voltage and current rating per contact for this connector?

A: Each contact in the HR10A-7P-12P is rated for up to 100V AC or 140V DC and can carry up to 2A of current, making it suitable for most signal and low-power applications.
