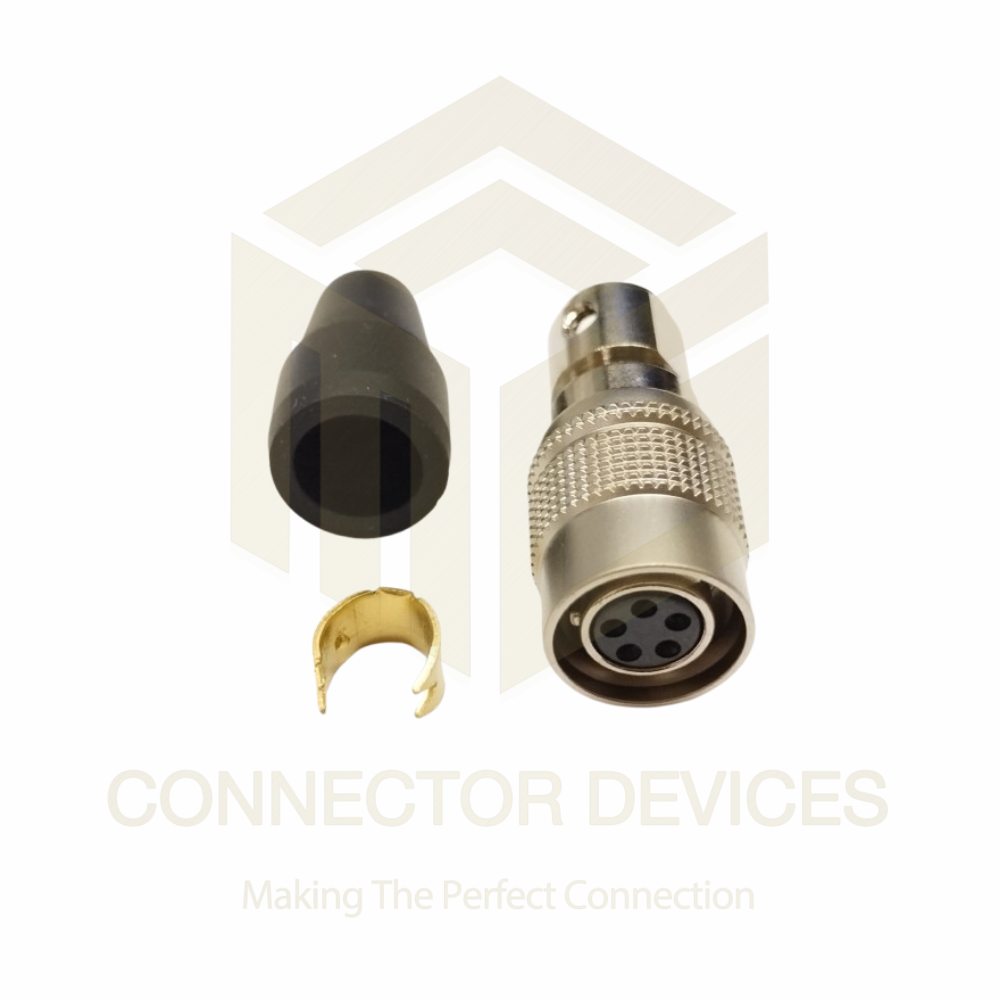

HIROSE HR10A-7P-5S FEMALE PLUG

Get a Price/Quote

Product Details:

Features Compact, Lightweight, Push-pull lock mechanism
Power Source External / Wired Connection
Operating Temperature -25C to +55C
IP Rating IP40
Usage Cable Connection & Signal Transmission
Components Plug housing, contacts
Interface Crimp / Solder termination
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

HIROSE HR10A-7P-5S FEMALE PLUG Price And Quantity

Minimum Order Quantity 100 Piece

HIROSE HR10A-7P-5S FEMALE PLUG Product Specifications

Rated Voltage 100V AC, 140V DC
Features Compact, Lightweight, Push-pull lock mechanism
Operating Temperature -25C to +55C
Power Source External / Wired Connection
Function Electrical Connector
Size 7mm shell diameter
Color Silver / Metallic
Components Plug housing, contacts
Usage Cable Connection & Signal Transmission
IP Rating IP40
Current Rating 2A per contact
Interface Crimp / Solder termination
Weight Approx. 6g
Application Industrial, Audio/Video Equipment, Instrumentation
Capacity 5 Contacts / Pins
Dimension (L*W*H) Approx. 14.5mm x 34mm
Product Type Circular Connector Female Plug

Standards Compliance RoHS compliant
Material - Insulator PBT (Polybutylene Terephthalate)
Locking System Push-pull self-locking
Insulation Resistance 1000 M min at 500V DC
Material - Shell Zinc alloy with nickel plating
Cable Diameter Compatibility Up to 6mm
Material - Contacts Brass with gold plating
Mating Cycles Over 500 times
Contact Resistance 30 m max

Product Description

Brand Name - Connector Devices

Model Number:HR10A-7P-5S FEMALE PLUG
Type : Adapter
Application : Power, Military communication solutions, automotive
Gender : Male and Female
Product name : Hirose connector
Colour : Silver
Material : Alloy
IP rate:IP50
Endurance (Shell):5000 mating cycles
Insulator:PPSPin:2.4,6,7,8,10,12,20 pins

Reliable Performance for Diverse Applications

With a focus on providing uninterrupted signal transmission, the HIROSE HR10A-7P-5S Female Plug is versatile, catering to industrial, instrumentation, and audio/video requirements. Its IP40 rating assures moderate protection, making it suitable for most controlled environments where dependable connectivity is essential. Its compliance with international standards like RoHS adds to its trustworthiness, ensuring safety and sustainability for manufacturers and users alike.

Ingenious Design and Durability

This connector features a push-pull self-locking mechanism, offering quick and secure mating, especially valuable in field and maintenance operations. Its robust construction - utilizing nickel-plated zinc alloy for the shell and gold-plated brass for contacts - ensures minimal contact resistance (max 30 m) and high insulation resistance (min 1000 M at 500V DC) over prolonged usage. Supporting up to 500 mating cycles, it stands out for longevity in critical applications.

FAQ's of HIROSE HR10A-7P-5S FEMALE PLUG:

Q: How do I install the HIROSE HR10A-7P-5S Female Plug onto a cable?

A: To install, choose a compatible cable up to 6mm in diameter. The plug supports both crimp and solder terminations for the contacts. Attach the contacts to stripped wire ends, insert them into the insulator, and secure the plug housing using the push-pull mechanism for reliable assembly.

Q: What types of equipment can use this connector?

A: This female plug is ideal for industrial equipment, instrumentation, and audio/video devices that require compact, dependable cable connections for signal and power transmission.

Q: When is it beneficial to use the HR10A-7P-5S over other connectors?

A: It is especially beneficial when a lightweight, space-efficient connector is required, and frequent connections or disconnections are expected, thanks to its >500 mating cycles and push-pull locking system.

Q: Where can the HIROSE HR10A-7P-5S be sourced in India?

A: You can obtain this connector through distributors, exporters, importers, manufacturers, traders, and wholesalers specializing in electronic components across India.

Q: What are the main benefits of the push-pull lock mechanism?

A: The push-pull self-locking system guarantees fast, one-handed operation with a secure connection, reducing the risk of accidental disconnections and enhancing efficiency in installation or maintenance.

Q: How durable is this plug under frequent use?

A: Built to withstand over 500 mating cycles and made from high-quality materials, it offers excellent durability for demanding environments, backed by low contact resistance and strong insulation properties.
