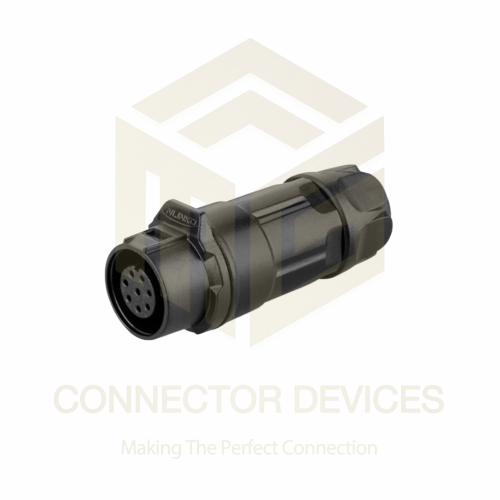

LP12 100V 3A 8Pin Female Inline IP67 Waterproof Power Connector Plastic Shell Solder Terminal

316.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply Electric
Features waterproof dust resistance
IP Rating 67
Operating Temperature -40~80C, 40C Celsius (oC)
Product Type waterproof connector
Function Connector
Color Black
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP12 100V 3A 8Pin Female Inline IP67 Waterproof Power Connector Plastic Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 316.0 INR/Piece

LP12 100V 3A 8Pin Female Inline IP67 Waterproof Power Connector Plastic Shell Solder Terminal Product Specifications

Function Connector
Current Rating 3 Amp
Operating Temperature -40~80C, 40C Celsius (oC)
IP Rating 67
Product Type waterproof connector
Features waterproof dust resistance
Power Supply Electric
Rated Voltage 100v
Color Black

LP12 100V 3A 8Pin Female Inline IP67 Waterproof Power Connector Plastic Shell Solder Terminal Trade Information

Supply Ability 10000 Piece Per Month
Delivery Time 7 Days
Sample Available Yes

Product Description

Brand:CNLINKO
Connecting mode:Easy locking type
Insertion and extraction force:1.8N Max
Wire specification:UL2464 24AWG*2C
Rated Current:3A
Contact dimension:Phi 1.0x6
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:> 1700 times

Exceptional Waterproof and Dust Resistance

The LP12 connector boasts an IP67 rating, providing reliable waterproof and dustproof performance. This makes it suitable for demanding environments, such as industrial, outdoor, or automotive settings, where exposure to harsh elements is common. Its robust construction ensures electrical safety and extended service life.

Superior Electrical Specifications

With a rated voltage of 1500V and a current rating of 3 Amp, the LP12 connector supports a range of electric power systems efficiently. The solder terminal design guarantees secure, stable connections for critical operations, while the 8-pin configuration facilitates versatile wiring options.

FAQ's of LP12 100V 3A 8Pin Female Inline IP67 Waterproof Power Connector Plastic Shell Solder Terminal:

Q: How do I install the LP12 8Pin Waterproof Power Connector?

A: To install the LP12 connector, simply solder your wires to the terminal pins, insert the connection into the female inline body, and securely fasten the shells. Ensure the connector is properly sealed to maintain its IP67 waterproof and dust resistance rating.

Q: What environments is this connector suitable for?

A: Thanks to its IP67 rating and operational temperature range of -40C to 80C, the LP12 is ideal for both indoor and outdoor environments, including areas exposed to moisture, dust, and extreme weather.

Q: When should I use an IP67-rated connector like the LP12?

A: An IP67-rated connector is essential when your application requires protection against dust ingress and temporary water immersion, such as in outdoor installations, industrial machinery, or construction equipment.

Q: Where can I purchase the LP12 8Pin Female Connector in India?

A: You can obtain the LP12 connector from various sources in India, including distributors, exporters, importers, manufacturers, traders, and wholesalers specializing in electrical components.

Q: What are the key benefits of using this power connector?

A: The key benefits include robust water and dust resistance, high voltage and current ratings, a wide operating temperature range, and easy solder terminal assembly, ensuring longevity and reliable power delivery.

Q: How is the LP12 connector maintained for optimal performance?

A: Periodically inspect the seals and terminals for any wear or corrosion. Make sure connections remain tight and the plastic shell is undamaged to sustain its protective properties.
