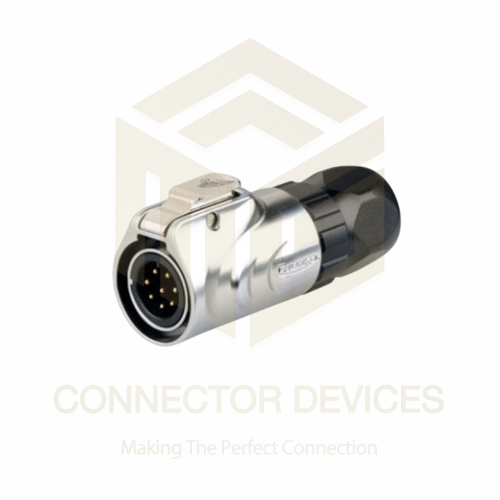

LP12 3A 8Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal

Name: LP12 3A 8Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 796.0 INR
Availability: InStock

796.0 INR/Piece

Get a Price/Quote

Product Details:

Output Up to 20A max
Interface 8 Pin Solder Terminal
Input Up to 20A max
Power Supply Solder Connect Terminal
Components Plug, Terminal Pins, Lock Nut
Features Waterproof, Dustproof, Corrosion Resistant, Metal Shell, Secure Locking Mechanism
Power Source External Power (Wired)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP12 3A 8Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Price 796.0 INR/Piece
Minimum Order Quantity 100 Piece

Contact Material Gold Plated Copper Contacts
Protection Level Fully sealed when mated
Number of Contacts 8 (3A each)
Shell Material Zinc Alloy with Nickel Plating
Locking System Threaded Locknut Coupling
Flame Retardancy UL94V-0
Contact Resistance 5m
Vibration Resistance Compliant to IEC 60512-6-4
Insulation Resistance >2000M at 500V DC
Cable Diameter Suitability 4mm to 8mm
Mounting Type Cable Mount (Inline)
Connector Gender Male Plug
Mating Cycles >500 times

LP12 3A 8Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Capacity 8 Pin Connections
Usage Industrial Equipment, Outdoor Lighting, Automation
IP Rating IP67
Rated Voltage 250V AC
Features Waterproof, Dustproof, Corrosion Resistant, Metal Shell, Secure Locking Mechanism
Power Source External Power (Wired)
Weight Approx. 30g
Dimension (L*W*H) Approx. 52mm Length x 19mm Diameter
Current Rating 3A per Pin
Size LP12 Series, 8 Pin
Function Electrical Power and Signal Connection
Operating Temperature -20C to +85C
Application Outdoor, Waterproof Power Transmission
Thickness Metal Shell, Standard Gauge
Input Up to 20A max
Interface 8 Pin Solder Terminal
Output Up to 20A max
Color Silver / Black
Frequency 50/60Hz
Components Plug, Terminal Pins, Lock Nut
Supply Voltage 250V max
Power Supply Solder Connect Terminal
Product Type Male Plug Connector

Contact Material Gold Plated Copper Contacts
Protection Level Fully sealed when mated
Number of Contacts 8 (3A each)
Shell Material Zinc Alloy with Nickel Plating
Locking System Threaded Locknut Coupling
Flame Retardancy UL94V-0
Contact Resistance 5m
Vibration Resistance Compliant to IEC 60512-6-4
Insulation Resistance >2000M at 500V DC
Cable Diameter Suitability 4mm to 8mm
Mounting Type Cable Mount (Inline)
Connector Gender Male Plug
Mating Cycles >500 times

LP12 3A 8Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Copper needle model (panel fit size):12mm
Connecting Mode:Plug (Male pin)
Operating Voltage:250V
Withstanding Voltage:1500V
Contact Dimension:Phi 1.0x2
Temperature and Humidity:-40+80C; 40C, 85%RH
Wire Specification:UL2464 24AWGx2C

Robust Waterproof Design

Built to withstand extreme outdoor conditions, the LP12 connector achieves an IP67 protection level. Its fully sealed construction ensures reliable performance against dust, water ingress, and environmental contaminants, making it ideal for field applications in challenging weather or high-moisture environments.

High Performance and Safety

With a current rating of 3A per pin and a maximum voltage of 250V AC, the connector uses high-quality gold-plated copper contacts for excellent conductivity and minimal contact resistance. The metal shell not only provides mechanical strength but also ensures flame retardancy, backed by UL94V-0 certification.

Versatile Application Capability

Supporting cable diameters from 4mm to 8mm and fitted with threaded locknut coupling, this inline male plug is adaptable for use in industrial equipment, automation, and outdoor lighting. Its corrosion resistant and vibration compliant features guarantee long-term stability and reliability in demanding setups.

FAQ's of LP12 3A 8Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How does the IP67 rating benefit the LP12 8Pin Power Connector during outdoor use?

A: The IP67 rating certifies that this connector is fully protected against dust and can withstand temporary immersion in water. This makes it highly reliable for outdoor and industrial applications where exposure to moisture or harsh elements is a concern.

Q: What is the process for connecting cables to the LP12 3A 8Pin Male Plug?

A: To connect cables, strip the outer insulation to fit the suitable diameter (4mm to 8mm), solder the wires to the gold-plated copper contacts, and secure them using the threaded locknut coupling. This ensures a stable, waterproof, and vibration-resistant connection.

Q: Where can the LP12 male plug be used most effectively?

A: This connector is ideally suited for outdoor lighting systems, industrial automation, and machinery that require robust and waterproof power or signal connections. Its design supports harsh outdoor or factory environments.

Q: What are the advantages of the metal shell and gold-plated contacts in this connector?

A: The zinc alloy shell enhances durability, corrosion resistance, and flame retardancy, while the gold-plated copper contacts ensure excellent conductivity, extended lifespan, and low contact resistance, resulting in reliable performance.

Q: When should you consider using this type of power connector?

A: This connector is recommended when secure, waterproof, and high-integrity power/signal connections are required, especially in outdoor, high-vibration, or industrial settings with exposure to dust, water or mechanical stress.

Q: What is the maximum current and voltage the LP12 8Pin Male Plug can handle?

A: Each pin is rated for 3A, supporting up to 24A in total (if all pins are used for power), with a maximum supply voltage of 250V AC. This makes it suitable for medium-power electrical transmission.
