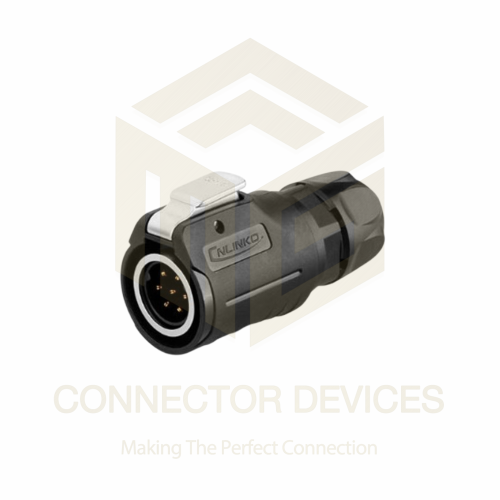

LP16 5A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

421.0 INR/Piece

Get a Price/Quote

Product Details:

Power Supply Connector type, no internal power supply
Interface 7-Pin Male Plug
Output 7Pin connector interface
Usage Outdoor/indoor electrical and electronic equipment
Features Waterproof, corrosion-resistant, dust-proof, secure locking
Input Solder type terminal
Power Source External (via cable connection)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP16 5A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Price 421.0 INR/Piece
Minimum Order Quantity 100 Piece

LP16 5A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Current Rating 5A max per pin
Power Supply Connector type, no internal power supply
Application Industrial equipment, LED lighting, automation systems
Interface 7-Pin Male Plug
Color Black and silver
Output 7Pin connector interface
Function Power transmission and signal connection
Thickness N/A (shell diameter specified below)
Supply Voltage 250V AC Max
Frequency 50/60 Hz compatible
Features Waterproof, corrosion-resistant, dust-proof, secure locking
Product Type Waterproof power connector
Dimension (L*W*H) Approx. 69mm (L) x 24mm (W) x 24mm (H)
Rated Voltage 250V AC
Usage Outdoor/indoor electrical and electronic equipment
Weight Approx. 24g
Operating Temperature -20C to +85C
Components Plastic/metal shell, 7-pin solder terminals
IP Rating IP67
Capacity 5A per pin
Input Solder type terminal
Power Source External (via cable connection)
Size Outer diameter 16mm (LP16 Series)

Gender Male
Connection Method Threaded locking mechanism
Mounting Type Cable mount (inline, not panel mount)
Termination Type Solder
Cable Diameter Range Range: 6-8mm
Corrosion Resistance Yes, suitable for harsh environments
Contact Material Copper alloy with nickel plating
Number of Contacts 7 pins
Shell Material Plastic + metal combination
Connector Series Weipu LP16

LP16 5A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:Easy locking type
Insertion and extraction force:1.8N Max
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:1700 times
Contact dimension:Phi 1.5*3
Operating Voltage:400VScrew torque:42-53 (N.m)

High Durability and Protection

Engineered for challenging settings, the LP16 7Pin Male Plug features a strong plastic and metal hybrid shell, providing outstanding resistance to water, dust, and corrosion with its IP67 rating. This makes it highly suitable for applications in outdoor installations and harsh industrial environments.

Versatile Connectivity

With its 7-pin solder terminals and compatibility for both power and signal transmission, this connector is well-suited for a wide range of uses, from automation systems to LED lighting. Its threaded locking system ensures a secure and stable connection every time.

Effortless Installation

The cable-mount, inline design simplifies the installation process. Supporting cable diameters from 6-8mm and terminated through soldering, it guarantees a firm and dependable link between devices, making it ideal for both new projects and repair tasks.

FAQ's of LP16 5A 7Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I install the LP16 5A 7Pin Male Plug connector?

A: To install, strip your cable to fit within the 6-8mm diameter range, solder your wires onto the 7 pin terminals, secure the cable using the body's clamps, and thread the locking mechanism to fasten the connection. This ensures a tight, waterproof seal suitable for harsh environments.

Q: What types of equipment can this connector be used with?

A: This connector is suitable for both indoor and outdoor equipment, including industrial machinery, LED lighting systems, automation panels, and various electronic devices that require secure, watertight power or signal connections.

Q: When should I choose this connector over others?

A: Opt for this model when you need a reliable, environmentally protected connection (IP67), high corrosion resistance, and secure cable-mount functionality, especially in settings exposed to moisture, dust, or demanding industrial conditions.

Q: Where is the LP16 7Pin Male Plug typically installed?

A: This connector is commonly used in field wiring scenarios for automation systems, power distribution units, and lighting installations-essentially anywhere that requires robust, waterproof cable-to-cable (inline) connections outdoors or in harsh industrial spaces.

Q: What process should I follow for soldering the connector terminals?

A: Gently strip the wire ends, insert each wire into its designated terminal, and apply solder to secure the connection. Allow it to cool, then inspect for cold joints before reassembling the connector. This process ensures dependable electrical contact and longevity.

Q: What are the primary benefits of using this connector in my application?

A: Key benefits include strong environmental resistance (IP67 and corrosion-proof materials), high current capability (5A per pin), ease of installation, and a secure locking mechanism that prevents accidental disconnection, resulting in a safe and stable power or signal link.
