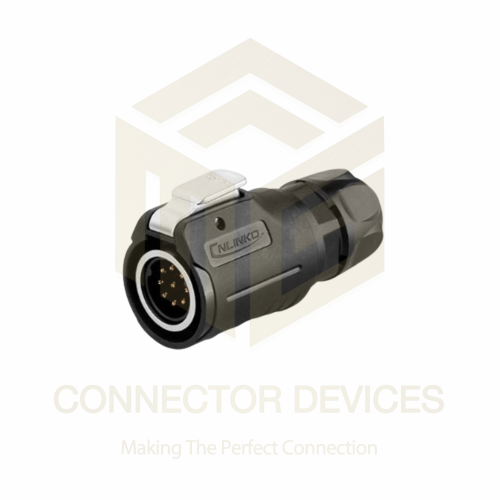

LP16 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: LP16 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 447.0 INR
Availability: InStock

447.0 INR/Piece

Get a Price/Quote

Product Details:

Input Solder Terminal
Operating Temperature -20C to +85C
IP Rating IP67
Components 9-Pin Male Plug, Plastic+Metal Shell, Solder Terminal
Power Supply Wire/Socket
Usage Cable Connection for Industrial Devices
Output Solder Terminal
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP16 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Price 447.0 INR/Piece
Minimum Order Quantity 100 Piece

LP16 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Current Rating 5A
Function Power and Signal Transmission
Usage Cable Connection for Industrial Devices
Power Supply Wire/Socket
Output Solder Terminal
Interface 9-Pin Circular Connector
Dimension (L*W*H) Approx. 55mm x 19mm x 19mm
Capacity 5A per pin
Features Waterproof, Dustproof, Vibration Resistant, Corrosion-Resistant Contacts
Product Type Waterproof Power Connector
Frequency 50/60 Hz
Power Source External Power Supply
Thickness Standard Connector Shell
Application LED Lighting, Industrial Equipment, Outdoor Power
Operating Temperature -20C to +85C
Rated Voltage 250V AC
Input Solder Terminal
Weight Approx. 18g
Color Black and Silver
Size 16mm (Panel Mount Diameter)
Components 9-Pin Male Plug, Plastic+Metal Shell, Solder Terminal
Supply Voltage 250V
IP Rating IP67

Locking Type Bayonet Locking
Mounting Type Cable/Panel Mount
Pin Material Brass with Gold Plating
Insulation Resistance >=500M @ 500V DC
Connector Gender Male
Withstanding Voltage 1500V AC/minute
Termination Type Solder
Contact Resistance 5m
Shell Material Nylon+Zinc Alloy
Material Plastic + Metal Alloy

LP16 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Connecting mode:Easy locking type
Insertion and extraction force:1.8N Max
Temperature and humidity:-4080C, 40C, 85%RH
Mating cycle:1700 times
Contact dimension:Phi 1.5*3
Operating Voltage:400V

Durable and Waterproof Design

The LP16 connector features an IP67 rating for waterproof and dustproof protection, ensuring consistent performance in harsh environments. Its nylon and zinc alloy shell resists corrosion, while the gold-plated brass pins improve conductivity and reduce contact resistance. The bayonet locking mechanism secures connections against vibration, making it suitable for demanding industrial and outdoor applications.

Versatile Application Capabilities

With a wide range of industrial uses, this connector excels in LED lighting, machinery, and other outdoor installations. Its solder terminal design provides secure electrical joins, while the panel or cable mounting options add flexibility for setup. Compact dimensions and a standard 16mm panel mount diameter allow for ease of integration in various equipment designs.

FAQ's of LP16 5A 9Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How do I install the LP16 5A 9Pin Male Plug on my industrial device?

A: Installation involves soldering wires to the terminals, then mounting the connector either on a cable or a panel using its 16mm diameter. The bayonet locking mechanism ensures a secure fit once connected. Proper soldering and sealing are crucial for maintaining the IP67 waterproof rating.

Q: What types of applications is this connector suitable for?

A: This connector is well-suited for LED lighting systems, outdoor industrial equipment, machinery interfaces, and other environments where waterproof and vibration-resistant connections are required.

Q: When should I choose this connector over others?

A: Select the LP16 5A 9Pin Male Plug when you need a compact yet robust connector that supports up to 5A per pin, provides both power and signal transmission, and operates reliably in challenging environments thanks to its IP67 protection and corrosion-resistant materials.

Q: Where can the connector be mounted on equipment?

A: The LP16 connector supports both cable and panel mounting. Its standard 16mm panel mount diameter ensures compatibility with a variety of enclosures and device interfaces.

Q: What is the process for achieving a waterproof connection with this plug?

A: To achieve a waterproof seal, ensure correct soldering of terminals, proper assembly of the connector components, and full engagement of the bayonet lock. Verify the seal integrity after installation, especially if used in outdoor or wet locations.

Q: How does the connector enhance reliability in industrial environments?

A: The connector's IP67-rated shell, corrosion-resistant contacts, and secure locking mechanism protect against water, dust, and vibration, providing reliable connections in demanding industrial and outdoor applications.

Q: What benefits does the gold-plated brass pin design offer?

A: Gold-plated brass pins reduce contact resistance and improve electrical conductivity, resulting in stable signal and power transmission, as well as enhanced resistance to corrosion over time.
