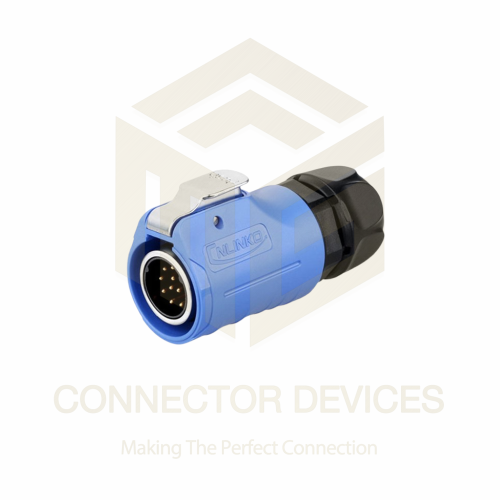

LP20 5A 12Pin Male Plug IP67 Waterproof Connector

Name: LP20 5A 12Pin Male Plug IP67 Waterproof Connector
Brand: CONNECTOR DEVICES
Price: 549.0 INR
Availability: InStock

549.0 INR/Piece

Get a Price/Quote

Product Details:

Output 12 Pin male interface
Components Male plug body, male pins, locking ring, sealing gasket
Power Source Electrical Cable
Interface Solder type, circular panel mount mate
IP Rating IP67
Usage Industrial, Outdoor, Automation Equipment
Operating Temperature -40C to +80C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

LP20 5A 12Pin Male Plug IP67 Waterproof Connector Price And Quantity

Minimum Order Quantity 100 Piece
Price 549.0 INR/Piece

LP20 5A 12Pin Male Plug IP67 Waterproof Connector Product Specifications

Usage Industrial, Outdoor, Automation Equipment
Output 12 Pin male interface
Frequency 50/60Hz
Dimension (L*W*H) Approx. 66mm x 26mm x 26mm
Operating Temperature -40C to +80C
Weight Approx. 45g
Components Male plug body, male pins, locking ring, sealing gasket
Power Source Electrical Cable
Product Type Waterproof Circular Connector
Supply Voltage Up to 500V
Function Electrical signal and power connection
Input 12 Pin Male Socket
Interface Solder type, circular panel mount mate
Rated Voltage 500V AC
Application Outdoor Connection, LED, Machinery, Sensors, Robotics
Current Rating 5A per contact
Color Black & Silver
Features Flame retardant, locking ring, waterproof, dustproof
Power Supply Electrical Cable
Size LP20 Series, shell outer diameter 26mm
Thickness Shell thickness approx. 2.5mm
IP Rating IP67
Capacity 5A per pin

Sealing Gasket Material Silicone Rubber
Shell Material High-strength plastic & metal
Locking Mechanism Quick bayonet coupling
Contact Resistance 5m
Number of Pins 12
Insulation Resistance >2000M (at 500V DC)
Standards Compliance CE, RoHS
Contact Material Copper alloy with gold plating
Mating Cycle Over 500 cycles
Mounting Type Cable mount / Inline plug
Flame Retardant Grade UL94 V-0
Cable Diameter Range 6 mm to 12 mm

LP20 5A 12Pin Male Plug IP67 Waterproof Connector Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:250V
Withstanding voltage:2500V
Mating cycle:> 1700 Times
Contact dimension:Phi 2.7x3
Temperature and humidity:-40+80C; 40C,85%RH
Screw torque:42-53 (N.m)

Rugged and Reliable Design

Engineered with a blend of high-strength plastic and metal, and featuring a silicone rubber sealing gasket, the LP20 5A 12Pin Male Plug is built to withstand harsh environments. Its IP67 waterproof rating and flame retardant UL94 V-0 compliance make it suitable for industrial and outdoor applications. The quick bayonet coupling ensures secure, fast connections with excellent sealing against dust and moisture.

Versatile Electrical Connectivity

With 12 gold-plated copper alloy pins, the connector ensures reliable electrical signal and power transmission at up to 5A per pin. Its wide operating temperature range (-40C to +80C), and compatibility with cable diameters from 6mm to 12mm, allow it to be used in applications like LED systems, automation equipment, sensors, robotics, and outdoor machinery.

FAQ's of LP20 5A 12Pin Male Plug IP67 Waterproof Connector:

Q: How is the LP20 5A 12Pin Male Plug typically used in industrial applications?

A: This connector is designed for secure power and signal connections in automation equipment, machinery, sensors, LEDs, and robotics. Its IP67 waterproof grade and flame-retardant construction make it ideal for demanding industrial and outdoor settings where reliability and safety are paramount.

Q: What process is involved in installing the LP20 12Pin Male Plug?

A: Installation involves soldering the 12 pins to corresponding cable wires, inserting the cable through the sealing gasket, and securing the plug using the quick bayonet coupling. The cable mount/in-line design supports flexible field connections, maintaining a water- and dust-tight seal throughout usage.

Q: When should I choose this connector over other options?

A: Choose this connector when you require a combination of high pin density (12 pins), robust waterproofing (IP67), flame retardance (UL94 V-0), and durability (over 500 mating cycles) for applications that demand secure, long-lasting electrical connections in harsh environments.

Q: Where can the LP20 male plug be used most effectively?

A: It is most effective in outdoor and industrial locations including automation systems, robotics, LED arrangements, machinery, and sensor networks. Its high-strength shell and sealing prevent ingress from water and dust, making it suitable for field installations and high-moisture environments.

Q: What are the benefits of the quick bayonet coupling mechanism?

A: The quick bayonet coupling offers fast and reliable locking, simplifying installation and disconnection without sacrificing the integrity of the waterproof and dustproof seal. This reduces downtime and enables efficient maintenance or replacement in the field.

Q: How does the LP20 connector ensure electrical safety and performance?

A: Electrical safety and performance are ensured through features like gold-plated copper alloy contacts for low contact resistance, insulation resistance greater than 2000M at 500V DC, a flame-retardant UL94 V-0 shell, and compliance with CE and RoHS standards.
