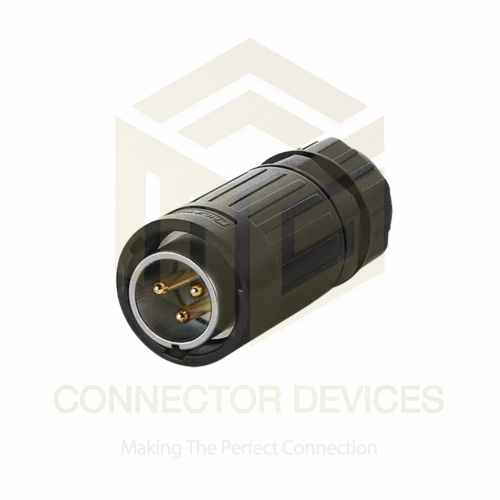

YA20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal

Name: YA20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 428.0 INR
Availability: InStock

428.0 INR/Piece

Get a Price/Quote

Product Details:

Power Source Wired AC
Features Waterproof, robust shell, anti-corrosion, solder terminal, dust proof
Operating Temperature -40C to +80C
IP Rating IP67
Usage Power supply connection in industrial and outdoor environments
Output 500V AC power connection
Input 500V AC power
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YA20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Price And Quantity

Minimum Order Quantity 100 Piece
Price 428.0 INR/Piece

Cable Diameter Range 8-12mm
Shell Design Screw locking, ribbed body for grip
Contact Type Solder terminal
Standards Compliance IEC, RoHS compliant
Material Plastic (body) + Metal (contacts/shell)
Environmental Protection UV resistant, salt spray resistant
Mating Cycle Durability >500 cycles
Pin Configuration 3 Pin male
Mounting Type Inline/cable mount
Flame Retardant Grade UL94 V-0
Short Circuit Protection Connector only, no internal protection

YA20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Product Specifications

Components Plastic+metal shell, solder terminals, 3 pin configuration
Size 20 series (YA20)
Power Supply Electrical
Function Male power connector for electrical supply connections
Color Blue + Black (main body), Silver (metal contacts)
Features Waterproof, robust shell, anti-corrosion, solder terminal, dust proof
Input 500V AC power
Interface 3 Pin Male Solder Terminal
Supply Voltage 500V
Dimension (L*W*H) Approx. 120mm x 55mm x 55mm
Frequency 50/60Hz
Power Source Wired AC
Capacity 20A current carrying capacity
Rated Voltage 500V AC
Weight Approx. 225g
Current Rating 20A
Operating Temperature -40C to +80C
Application Outdoor, industrial, heavy machinery, power distribution
IP Rating IP67
Usage Power supply connection in industrial and outdoor environments
Product Type Power connector plug
Output 500V AC power connection

Cable Diameter Range 8-12mm
Shell Design Screw locking, ribbed body for grip
Contact Type Solder terminal
Standards Compliance IEC, RoHS compliant
Material Plastic (body) + Metal (contacts/shell)
Environmental Protection UV resistant, salt spray resistant
Mating Cycle Durability >500 cycles
Pin Configuration 3 Pin male
Mounting Type Inline/cable mount
Flame Retardant Grade UL94 V-0
Short Circuit Protection Connector only, no internal protection

YA20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Contact dimension:phi 2.7x3
Insertion and Extraction Force:6.0N Max
Temperature and humidity:-40+80C; 40C, 85%RH
Mating cycle:> 1700 Times
Screw torque:42-53(N.m) Torque wrench200(N.m)

Exceptional Durability and Reliability

The YA20 connector boasts a mating cycle durability exceeding 500 cycles, ensuring long-term, dependable performance even with frequent use. Its durable construction is optimized for industrial settings, where operational consistency is crucial. The combination of a ribbed grip and screw-lock mechanism makes installation and handling straightforward while maintaining a secure connection.

Outstanding Protection for Demanding Environments

Engineered with a high IP67 ingress protection rating and a flame-retardant shell meeting UL94 V-0 standards, the YA20 plug is designed to function reliably outdoors and in harsh industrial environments. It is UV and salt spray resistant, ensuring that it withstands challenging climates without compromising its power supply performance.

FAQ's of YA20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Plastic+Metal Shell Solder Terminal:

Q: How is the YA20 3Pin Male Plug installed and connected?

A: Installation requires soldering wires to the internal solder terminals of each pin, securing the cable within the specified 8-12mm diameter range, and then locking the shell using its screw-lock feature for a tight and reliable seal.

Q: What environments is this connector suitable for?

A: The YA20 plug is ideal for outdoor and industrial environments, heavy machinery, and power distribution applications due to its IP67 waterproof rating, UV resistance, and flame-retardant grade UL94 V-0.

Q: When should I use the YA20 connector over other options?

A: Choose the YA20 connector when you require a robust, high-capacity solution (20A, 500V AC) for secure power supply connections in harsh conditions, where water, dust, or corrosive elements may be present.

Q: Where can the YA20 connector be applied specifically?

A: Typical applications include outdoor power distribution panels, heavy equipment connections, industrial automation systems, and areas where reliable, waterproof electrical connections are necessary.

Q: What are the benefits of the screw-lock and ribbed body design?

A: The screw-lock provides a secure mechanical connection that is resistant to vibration and accidental disconnection, while the ribbed body ensures a firm grip even in challenging working conditions.

Q: How does the connector safeguard against adverse conditions?

A: With IP67 sealing, flame-retardancy, UV and salt spray resistance, the YA20 protects connections from moisture, dust, and environmental deterioration, increasing reliability and safety for demanding installations.
