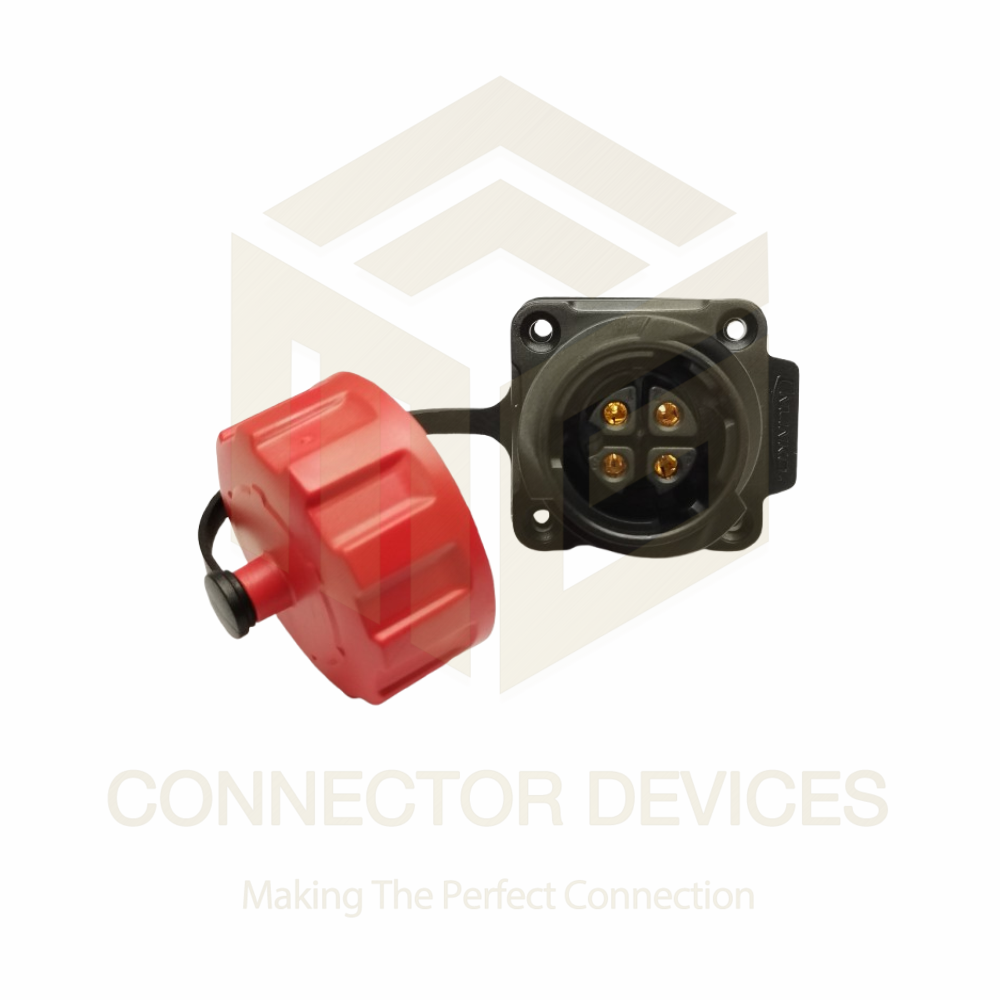

YM24 25A 4Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal

Name: YM24 25A 4Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 665 INR
Availability: InStock

665 INR/Piece

Get a Price/Quote

Product Details:

Components Connector shell, pins, flange, solder terminals
Power Supply Wired
IP Rating IP67
Usage Industrial and Outdoor Power Connections
Interface Solder Terminal, 4 Pin
Input 4 Pin Female
Power Source Electrical
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YM24 25A 4Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Price And Quantity

Price 665 INR/Piece
Minimum Order Quantity 100 Piece

Locking Mechanism Threaded coupling
Connector Gender Female
Mechanical Life >2000 mating cycles
Mounting Type Flange Panel Mount
Number of Contacts 4
Cable Type Suitable for 2.5 - 6mm2 wires
Insulation Resistance >2000M at 500V DC
Contact Resistance 5m
Shell Material Engineering plastic
Sealing Method Silicone rubber gasket
Contact Material Copper alloy with silver plating
Flame Retardant Level UL94 V-0

YM24 25A 4Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Product Specifications

Power Source Electrical
Power Supply Wired
Function Power Connectivity
IP Rating IP67
Application Suitable for machinery, automation, power distribution, and equipment requiring waterproof power connection
Rated Voltage 500V AC
Frequency 50/60 Hz
Components Connector shell, pins, flange, solder terminals
Input 4 Pin Female
Thickness Flange 3.5mm (approx.)
Output Socket Interface
Capacity 25A
Color Black
Weight Approx. 80g
Operating Temperature -40C to +80C
Features Flange mount, waterproof, dustproof, plastic shell, high current capacity
Current Rating 25A
Size YM24 (24mm series)
Interface Solder Terminal, 4 Pin
Product Type Panel Mount Connector
Supply Voltage 500V
Usage Industrial and Outdoor Power Connections
Dimension (L*W*H) Approx. 48mm x 36mm x 36mm

Locking Mechanism Threaded coupling
Connector Gender Female
Mechanical Life >2000 mating cycles
Mounting Type Flange Panel Mount
Number of Contacts 4
Cable Type Suitable for 2.5 - 6mm2 wires
Insulation Resistance >2000M at 500V DC
Contact Resistance 5m
Shell Material Engineering plastic
Sealing Method Silicone rubber gasket
Contact Material Copper alloy with silver plating
Flame Retardant Level UL94 V-0

YM24 25A 4Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Number of Pins:4
Rated Current:25A
Protection Level:IP68
Connecting mode:latching lock
Contact diameter:phi 3.0x3
Operating voltage(AC.V.rms):500V
Withstand voltage(AC.V)1min:2500V

IP67 Waterproof Protection

Engineered with a resilient silicone rubber gasket and precision flange panel design, the YM24 25A 4Pin Female Socket achieves an IP67 rating. This level of protection means the connector withstands powerful water jets and total dust ingress, making it ideal for use in outdoor, industrial, or wet environments where reliable performance is essential.

Durable Construction for High Power

Manufactured from flame-retardant UL94 V-0 engineering plastic and featuring silver-plated copper alloy contacts, this connector excels in high-power applications up to 25A and 500V AC. Its robust structure and secure threaded coupling provide enhanced mechanical life and stability, supporting over 2,000 plug/unplug cycles without degradation.

Simple Flange Mount Installation

The connector's flange panel mount design allows quick and straightforward integration onto equipment surfaces. Its solder terminals suit wire sizes from 2.5 to 6mm2, supporting strong and lasting electrical connections. Supplied with all necessary components, this socket integrates seamlessly into panels for professional, weather-resistant power connectivity.

FAQ's of YM24 25A 4Pin Female Socket IP67 Waterproof Power Connector Flange Mount Plastic Shell Solder Terminal:

Q: How is the YM24 25A 4Pin Female Socket installed?

A: The connector is designed for flange panel mounting. Simply secure the socket to your equipment's panel using the flange holes, then solder compatible wires (2.5-6mm2) to the terminals, and firmly couple it with a corresponding plug using the threaded mechanism.

Q: What applications are suitable for this power connector?

A: The YM24 4Pin Female Socket is ideal for industrial and outdoor power connections, including use in machinery, automation systems, power distribution, and any equipment requiring waterproof and high-current connectivity.

Q: When should I choose an IP67 rated connector?

A: An IP67 rating ensures complete protection against dust and allows temporary immersion in water. Choose this connector for environments where dust or exposure to water may compromise other power connections, such as outdoor locations or industrial settings.

Q: Where can the YM24 connector be used?

A: This connector can be integrated into control panels, machinery housings, distribution boxes, and outdoor equipment-anywhere a durable, waterproof power interface is necessary.

Q: What are the benefits of the threaded coupling mechanism?

A: The threaded coupling ensures a secure, vibration-resistant connection, preventing accidental disconnection in high-motion environments and maintaining the integrity of the IP67 seal.

Q: How does the connector ensure long-term reliability?

A: With a mechanical life rated for over 2,000 mating cycles, high-quality materials, and robust sealing, the YM24 is built for longevity in demanding conditions, providing consistent power connectivity throughout its service life.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Waterproof Power Connector' category

YU Series USB3.0 Female-Male IP67 Waterproof Data Connector 2 Meter Cable Price : 811.0 INR/Piece Minimum Order Quantity : 100 Usage : Industrial and Outdoor USB connections Current Rating : Up to 1A Interface : USB 3.0 Type A Male to Female Size : 2 Meter Length Components : USB 3.0 Male Connector, USB 3.0 Female Connector, Waterproof housing Rated Voltage : 5V DC Function : Highspeed data transfer and waterproof data connectivity IP Rating : IP67 Power Supply : USB Bus Powered Operating Temperature : 20C to +70C Color : Black Weight : Approx. 120g Capacity : Up to 5Gbps data rate Dimension (L*W*H) : Cable: 2m (L), Connector head: 21mm (Diameter) Product Type : Waterproof USB3.0 Extension Cable Features : IP67 waterproof, corrosionresistant, dustproof, shielded cable, easy installation Input : USB 3.0 Male Application : Data transmission in harsh environments Output : USB 3.0 Female Supply Voltage : 5V Power Source : External USB Port Thickness : Cable diameter approx. 5.5mm Charging Voltage : 5V

Send Inquiry

YM20 5A 12Pin Female Socket IP68 Waterproof Power Connector Price : 368.0 INR/Piece Minimum Order Quantity : 100 Usage : Outdoor waterproof power connector Current Rating : 5A (per contact) Interface : Solder Cup (12 Pin) Size : 20mm shell diameter Components : Connector body, sealing ring, goldplated contacts Rated Voltage : 250V AC / DC Function : Electrical connection for power and signal transmission IP Rating : IP68 Power Supply : Wired Operating Temperature : 40C to +105C Color : Black Weight : Approx. 30g Capacity : 5A per contact (total 12way) Dimension (L*W*H) : Approx. 70mm (L) x 24mm (D) Product Type : Female Socket Features : Waterproof, dustproof, vibrationresistant, corrosionresistant Input : 5A max per contact Application : Outdoor, LED lighting, industrial equipment, automation Output : 12pin output connection Supply Voltage : 250V Max Power Source : External wired Thickness : Standard shell thickness 2.5mm Frequency : 50/60Hz

Send Inquiry

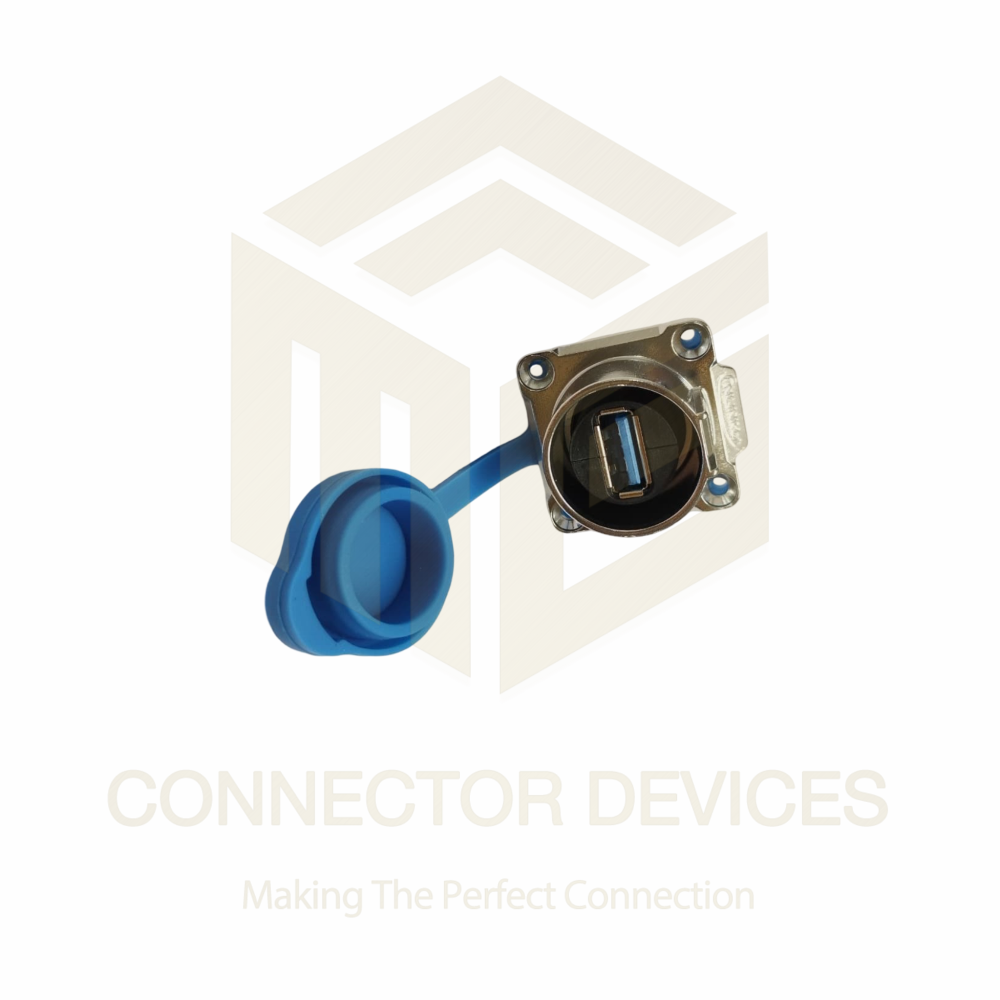

LP24 USB3 Female-Female Socket IP67 Waterproof Data Connector Panel Mount (Push Lock) Price : 435 INR/Piece Minimum Order Quantity : 100 Usage : Industrial, outdoor, marine, automotive, data communication Current Rating : 1.8A max Interface : USB3.0 FemaletoFemale Socket Size : 24 mm (panel diameter) Components : Plastic/metal shell, USB 3.0 contacts, sealing gasket Rated Voltage : 30V DC Function : USB 3.0 data transmission, waterproof panel mount connection IP Rating : IP67 Power Supply : USB buspowered Operating Temperature : 40C to +85C Color : Black/Silver Weight : Approx. 28g Capacity : Up to 5 Gbps data transfer rate Dimension (L*W*H) : Approx. 54 x 24 x 24 mm Product Type : USB panel mount waterproof connector Features : Push lock mechanism, waterproof/dustproof, easy installation, corrosionresistant Input : USB 3.0 TypeA Female Application : Outdoor/harsh environment data connection ; instrumentation ; automation equipment Output : USB 3.0 TypeA Female Supply Voltage : 5V DC (typical for USB) Power Source : USBpowered Thickness : Approx. 2.5mm (panel) Charging Voltage : 5V
