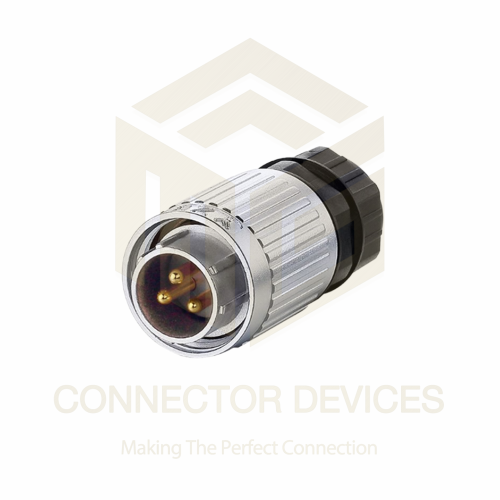

YW20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal

Name: YW20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal
Brand: CONNECTOR DEVICES
Price: 508.0 INR
Availability: InStock

508.0 INR/Piece

Get a Price/Quote

Product Details:

Usage Electrical connector for robust environments
Power Supply AC / DC (as per requirement)
Components Metal shell body, solder terminals, sealing ring
Output Up to 20A
Operating Temperature -40C to +85C
Interface Solder terminal
Features Waterproof, Dustproof, Corrosion Resistant, Secure Locking Mechanism, Metal Shell
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YW20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Price And Quantity

Price 508.0 INR/Piece
Minimum Order Quantity 100 Piece

Mounting Type Cable mount
Withstand Voltage 1500V AC/minute
Material Zinc alloy shell, copper pins
Flammability Rating UL94-V0
Sealing Method Silicone O-ring
Standards Compliance IEC60529
Corrosion Proof Yes, industrial grade
Number of Pins 3
Terminal Type Solder
Cable Diameter Range 6mm - 12mm
Shell Protection Nickel-plated metal
Insulation Resistance 2000M at 500V DC
Vibration Resistance Yes
Locking Mechanism Threaded coupling
Contact Resistance 5m
Connector Gender Male

YW20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Product Specifications

Color Silver/Black
IP Rating IP67
Features Waterproof, Dustproof, Corrosion Resistant, Secure Locking Mechanism, Metal Shell
Size YW20 standard size
Capacity 20A current rating
Frequency 50/60 Hz
Interface Solder terminal
Operating Temperature -40C to +85C
Output Up to 20A
Power Supply AC / DC (as per requirement)
Function Waterproof power connection for industrial applications
Components Metal shell body, solder terminals, sealing ring
Usage Electrical connector for robust environments
Product Type 3-Pin Male Plug Connector
Current Rating 20A
Supply Voltage 500V
Power Source External power feed
Weight Approx. 85g
Rated Voltage 500V
Application Outdoor, Industrial, Power Distribution, Automation Equipment
Dimension (L*W*H) 80mm x 35mm (diameter)
Input Male 3-pin connection

Mounting Type Cable mount
Withstand Voltage 1500V AC/minute
Material Zinc alloy shell, copper pins
Flammability Rating UL94-V0
Sealing Method Silicone O-ring
Standards Compliance IEC60529
Corrosion Proof Yes, industrial grade
Number of Pins 3
Terminal Type Solder
Cable Diameter Range 6mm - 12mm
Shell Protection Nickel-plated metal
Insulation Resistance 2000M at 500V DC
Vibration Resistance Yes
Locking Mechanism Threaded coupling
Contact Resistance 5m
Connector Gender Male

YW20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal Trade Information

Delivery Time 7 Days

Product Description

Brand:CNLINKO
Operating Voltage:500V
Withstanding voltage:2500V
Contact dimension:Phi 2.7x3
Mating cycle:> 1700 Times
Insertion and extraction force:6.0N Max
Screw torque:42-53 (N.m)
Temperature and humidity:-40+80C; 40C, 85%RH

Industrial-Grade Waterproof Connectivity

Engineered for harsh environments, the YW20 3Pin Male Plug offers full IP67 waterproof and dustproof protection. Its corrosion-resistant, nickel-plated zinc alloy shell ensures reliable performance in industrial, automation, and outdoor power distribution applications. The design supports stable operation under vibration and extreme temperatures, providing dependable connectivity wherever needed.

Secure Power Transmission for Demanding Applications

Rated for 500V and 20A, the YW20 power connector utilizes a threaded locking mechanism and silicone O-ring to guarantee a secure and leak-proof connection. Compliant with IEC60529 standards and featuring UL94-V0 flammability protection, it offers peace of mind for distributors, manufacturers, and end-users seeking safety and durability in power connections.

FAQ's of YW20 500V 20A 3Pin Male Plug IP67 Waterproof Power Connector Metal Shell Solder Terminal:

Q: How is the YW20 500V 20A 3Pin Male Plug installed for industrial use?

A: The YW20 connector is cable-mounted and features solder-type terminals. To install, strip the cable, solder each wire to the corresponding copper terminal, ensure the silicone O-ring is correctly placed, and tighten the threaded coupling for a secure fit. This installation process ensures a waterproof and vibration-resistant connection.

Q: What environments is this connector best suited for?

A: This connector was designed for robust environments, particularly outdoor, industrial, and automation settings. With an IP67 waterproof and dustproof rating, corrosion-proof metal shell, and resistance to vibration, it performs reliably in power distribution and equipment requiring durable electric connections.

Q: When should this connector be used over other connectors?

A: Use the YW20 3Pin Male Plug when high reliability, weather resistance, and protection from dust and water ingress are crucial. It is particularly beneficial for outdoor or industrial projects that require a secure, high-capacity (up to 20A, 500V) power connection.

Q: Where can the YW20 connector be employed?

A: The YW20 connector is ideal for use in outdoor installations, industrial automation equipment, and power distribution systems. Its waterproof construction and wide operating temperature range make it suitable for many demanding field applications worldwide.

Q: What is the primary benefit of the IP67 rating and metal shell construction?

A: The IP67 rating guarantees waterproof and dustproof protection, safeguarding electrical connections against moisture and particulates. The nickel-plated zinc alloy shell adds durability and corrosion resistance, ensuring a long-lasting and stable interface in harsh environments.

Q: How does the threaded coupling mechanism enhance the connector's performance?

A: The threaded coupling provides a secure, vibration-resistant connection that prevents accidental disconnection. Combined with the silicone O-ring, this mechanism maintains a sealed interface, reducing the risk of water or dust intrusion during operation.
